OMS400 151F2261 hydraulic orbit motor with standard flange,MS400CO geroler motor

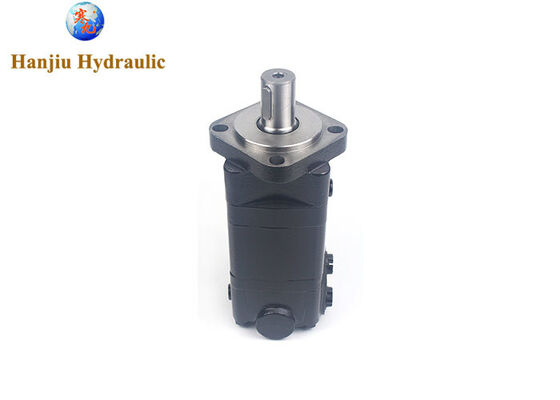

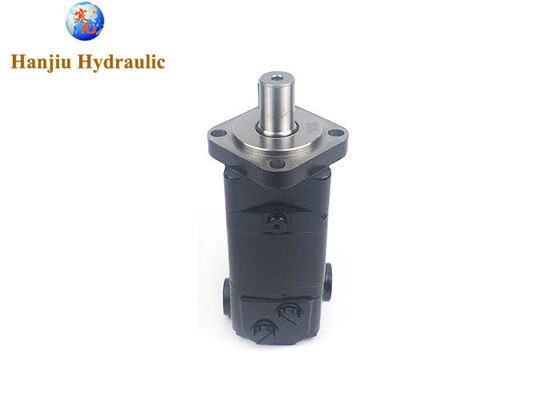

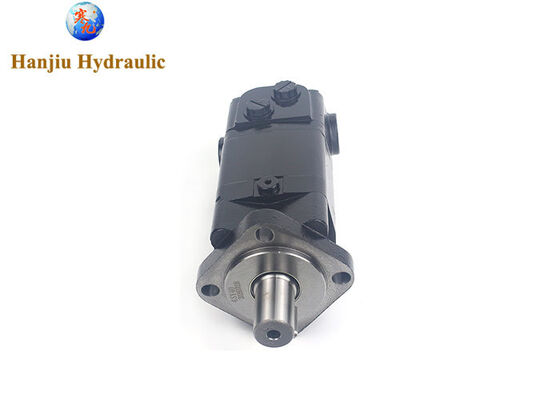

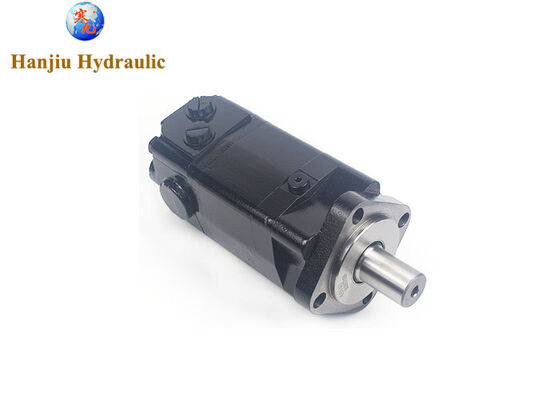

Large Image : OMS400 151F2261 hydraulic orbit motor with standard flange,MS400CO geroler motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-400-E4-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Sweepers
Flange:	Magneto Flange	Shaft:	31.75mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	12 MONTHS
Highlight:	hydraulic orbit motor with standard flange , MS400CO geroler hydraulic motor , low speed high torque hydraulic motor

OMS400 151F2261 hydraulic orbit motor with standard flange,MS400CO geroler motor

Product details:

type code BMSY-400-E4-G-SU=151F2261=MS400CO

Specifications

Displacement: 400 ccm/REV

Ports: G 1/2"

Shaft Type: Ø 1 1/4" cylindrical with a key

This specific component is widely utilized in heavy-duty agricultural, construction, and manufacturing machinery requiring reliable fluid power. Detailed specifications and procurement options can be viewed directly on the HANJIU Technology

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

OMS400 151F2261 hydraulic orbit motor with standard flange,MS400CO geroler motor

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

OMS400 151F2261 hydraulic orbit motor with standard flange,MS400CO geroler motor

The HANJIU OMS series heavy-duty orbital hydraulic motor delivers proven maximum-performance power transmission for the most demanding applications across construction, mining, forestry, agriculture, marine, and heavy industrial sectors. With nine displacement models from OMS 80 to OMS 500 delivering geometric displacements from 80.5 cm³ to 476.5 cm³, continuous torque output to 870 Nm, peak torque to 1,091 Nm, maximum pressure drop ratings of 175 bar (up to 205 bar on select models), and complete dimensional interchangeability with the OMS series, HANJIU addresses the full spectrum of heavy-duty hydraulic power transmission requirements.

The Geroler gear set mechanism, disc-type distribution valve, reinforced housing construction, oversized shaft bearings, and extensive mounting and shaft options position the OMS series as the motor of choice for the largest and most demanding mobile and stationary hydraulic equipment. Combined with extensive spare parts availability, competitive lifecycle costs, and responsive global technical support, HANJIU OMS orbital motors deliver tangible value that strengthens OEM competitiveness and reduces operating costs for the most challenging equipment fleets worldwide.
