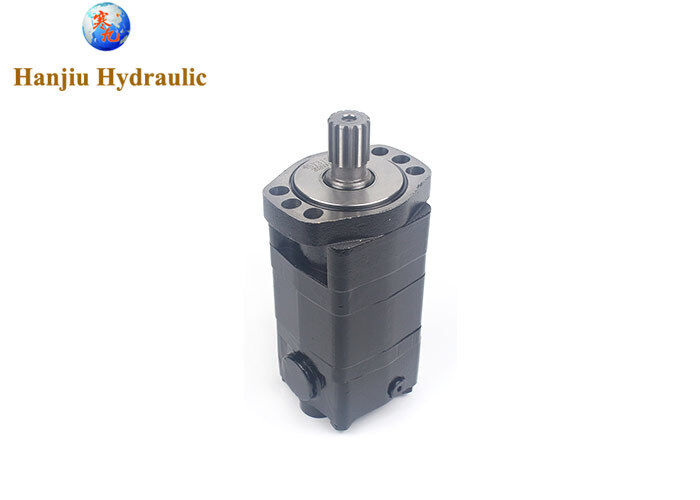

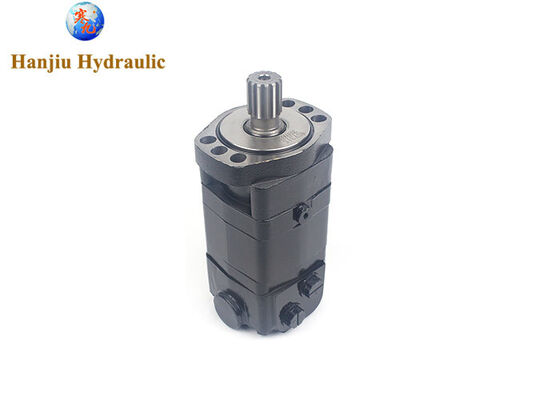

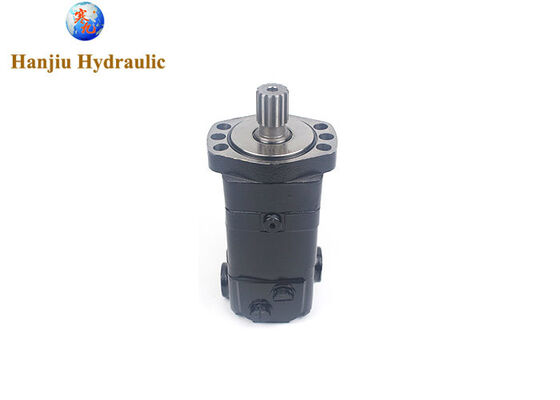

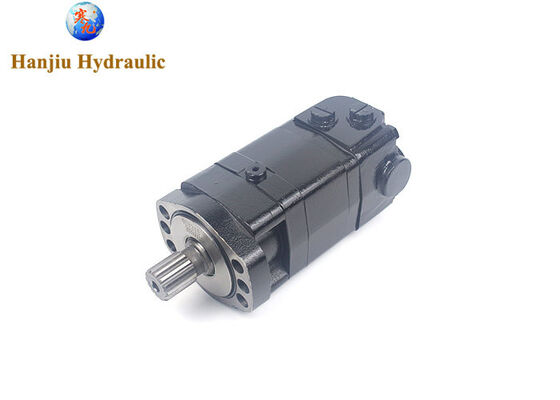

OMS 315 151F2356 Hydraulic Motor interchangeable BMSY-315-F6-FE-SU

Large Image : OMS 315 151F2356 Hydraulic Motor interchangeable BMSY-315-F6-FE-SU

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-F6-FE-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Winches, Harvesters
Flange:	Magneto Flange	Shaft:	31.75mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	12 MONTHS
Highlight:	OMS 315 hydraulic motor interchangeable , BMSY-315-F6-FE-SU hydraulic motor , low speed high torque hydraulic motor

OMS 315 151F2356 Hydraulic Motor interchangeable BMSY-315-F6-FE-SU

Product details:

type code BMSY-315-F6-FE-SU=151F2356

Specifications

Hydraulic orbital motor.
Displacement: 315 cm3.
Shaft: Splined z14 DP 12/24 D1-1/4 US.
Flange: SAE-A 4-bolts centering D82.5 (Magneto).
Ports: UNF threaded.

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

OMS 315 151F2356 Hydraulic Motor interchangeable BMSY-315-F6-FE-SU

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

OMS 315 151F2356 Hydraulic Motor interchangeable BMSY-315-F6-FE-SU

APPLICATION:

Conveyors

Metal working machines

Agricultural machines

Road building machines

Mining machinery

Food industries

Special vehicles etc.
