BMER-2-300-FS-FD1 Hydraulic motor low speed high torque 18.08 cubic inch displacement

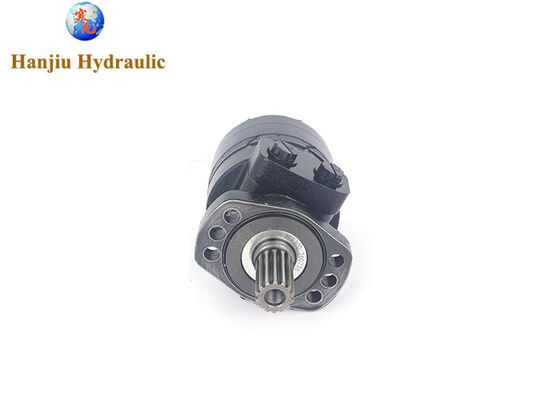

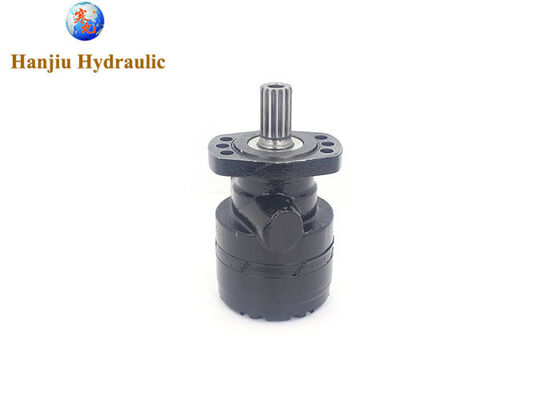

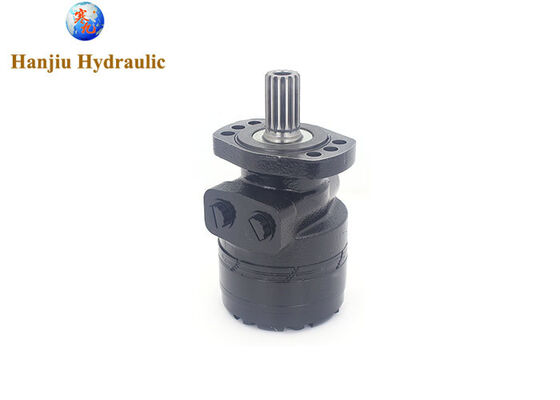

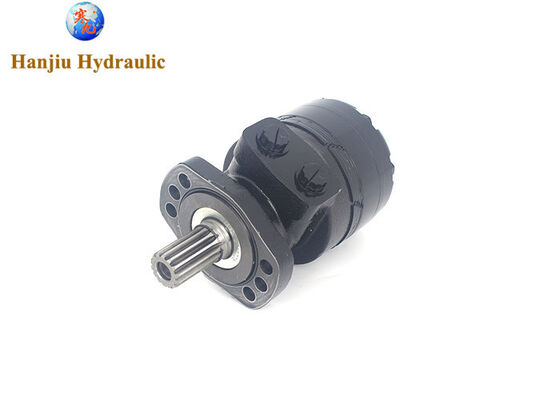

Large Image : BMER-2-300-FS-FD1 Hydraulic motor low speed high torque 18.08 cubic inch displacement

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-300-FS-FD1

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-300-FS-FD1
Size:	300ml/r	Flange:	Magneto Mount 6-Hole
Shaft:	Spline Shaft	Rotation:	CCW
Port:	Offsite Ports	Material:	Cast Iron
Highlight:	BMER-2 hydraulic motor 18.08 cu in , low speed high torque hydraulic motor , BMER-2-300-FS-FD1 hydraulic motor

BMER-2-300-FS-FD1 Hydraulic motor low speed high torque 18.08 cubic inch displacement

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-300-FS-FD1
Displacement	300ml/r
Flange	Magneto Mount 6-Hole
Shaft	Shaft Ø31 . 75, splined key 14-DP12
Rotation	CCW
Port	7/8-14UNF

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Introducing the Dynamic Fluid Components BMER-2-300-FS-FD1 Motor, designed to provide exceptional performance and durability for your machinery needs.

High-Quality Construction: Built to the highest standards, ensuring long-lasting reliability.
Reliable Performance: Delivers consistent power output for smooth operation.
Efficient Operation: Optimal efficiency to enhance overall machinery performance.
Wide Application: Suitable for a variety of industrial and commercial machinery.

Get ready to experience outstanding performance with the HANJIU Technology BMER-2-300-FS-FD1 Motor. Order yours today!
