Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft

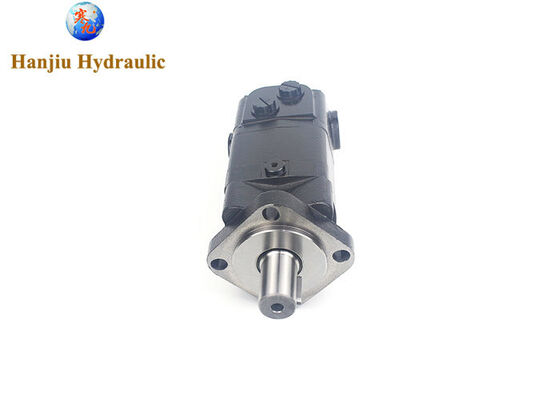

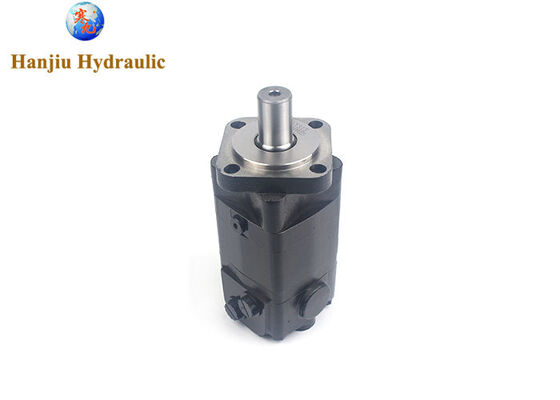

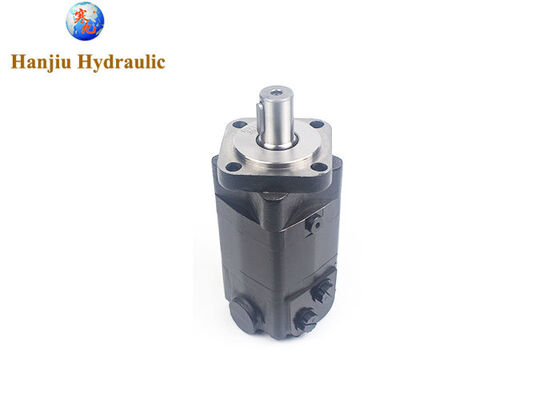

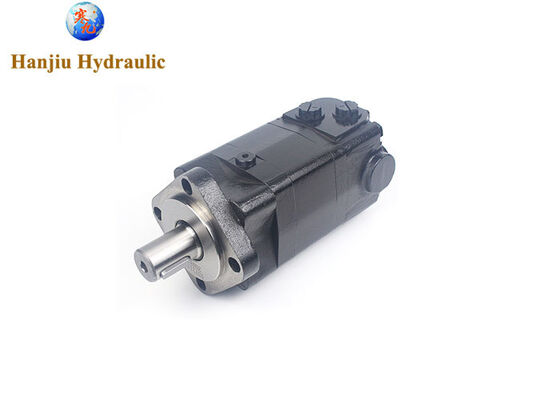

Large Image : Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-E4-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Application:	Winches, Harvesters
Flange:	Standard Mounting	Shaft:	31.75mm Straight Key Shaft
Materia:	Cast Iron	Warranty:	12 MONTHS
Highlight:	OMS315 orbital hydraulic motor , 151f2206 hydraulic motor 31.75mm shaft , low speed high torque hydraulic motor

Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft

Product details:

type code 151F2206--BMSY-315-E4-G-SU

Specifications

Hydraulic orbital motor.
Displacement: 315 cm3.
Shaft: 31.75mm straight key shaft
Flange: standard type flange
Ports: UNF threaded.

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

Reliable orbital hydraulic motor OMS315 151f2206 standard type 31.75mm straight key shaft

The Motor Orbital OMS315 may not be the lowest-priced option on the market, but its materials and structural design are intended to minimize repairs and extend the equipment’s service life. While procurement costs are determined by the invoice at the time of order, the true cost of ownership is measured over time by accumulated maintenance hours and lost productivity. HANJIU not only provides hardware products but also offers technical services such as product selection and verification, installation guidance, and troubleshooting support, ensuring comprehensive operational assurance for users. For equipment requiring continuous and stable power output—such as winches, drilling rigs, mining machinery, and heavy-duty agricultural machinery—choosing the Motor Orbital OMS315 is a practical procurement solution that takes the entire lifecycle into account.

oms orbital motor diagram

oms flange motor diagram

orbital motor curve chart

oms motor diagram

oms torque chart

oms orbital motor curve

oms motor specs

oms torque specs
