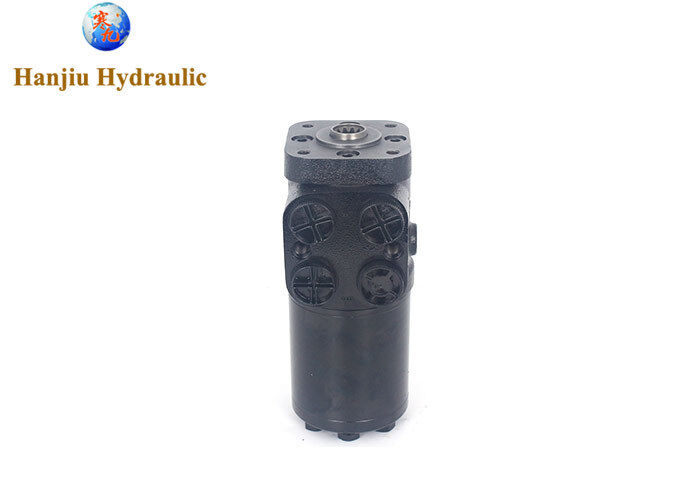

BZZ hydraulic steering unit 630cc closed center for wheel loader

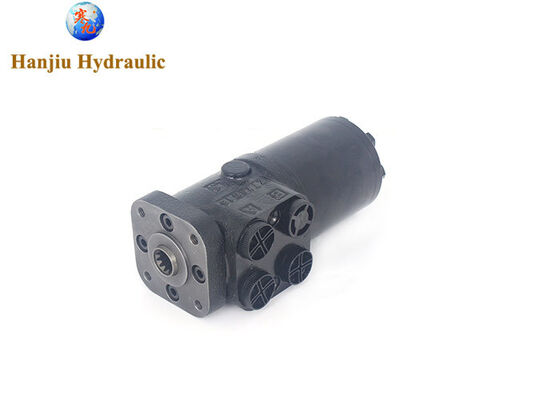

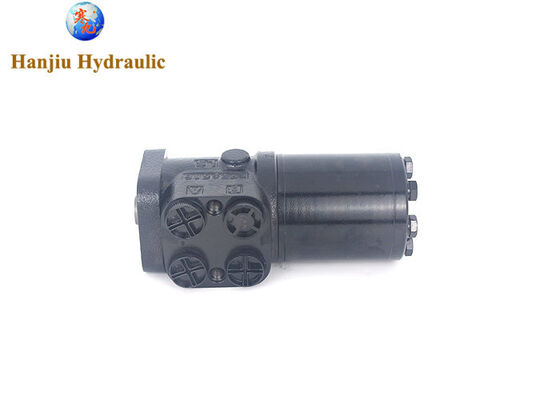

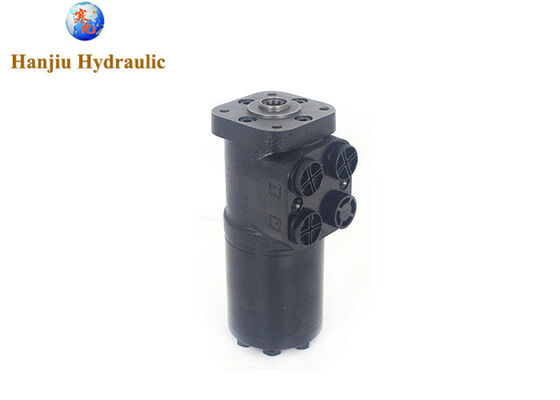

Large Image : BZZ hydraulic steering unit 630cc closed center for wheel loader

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BZZ630

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50000 Pieces One Year

Contact Now

Detailed Product Description

Product Name:	Wheel Loader Hydraulic Steering Unit	Brand:	HANJIU
Displacement:	630CC	Application:	Small Wheel Loader
Model Number:	BZZ3-E630B-C	Materia:	Cast Iron
Highlight:	BZZ hydraulic steering unit 630cc , closed center steering unit wheel loader , hydraulic steering unit 630cc

BZZ hydraulic steering unit 630cc closed center for wheel loader

type code:BZZ3-E630B-C

function:closed center non-reaction

displacement:630cc

shaft:spline shaft

port size:3/4-16unf

Wheel Loader Hydraulic Steering Units

BZZ1 Series

BZZ2 Series

BZZ3 Series

BZZ5 Series

BZZ1,BZZ2,BZZ3 series SCU offers the
advantages as follows:
This kind of SCU series can help you reduce the machinery cost without mechanical linkage device, and can offer reliable and light structure.
This kind of SCU series can operate more flexible with light steering torque.This kind of SCU series can offer emergent manual steering in case of engine failure.This kind of SCU series can be steering at the continuous speed with less steering torque.This kind of SCU series can offer various hydraulic system and different mounting choice.This kind of SCU series can link various steering pump and hydraulic steering system.

BZZ hydraulic steering unit 630cc closed center for wheel loader

Hydraulic Steering Unit (BZZ1, BZZ2, BZZ3)

Hydraulic steering control units (BZZ)
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.

The advantages of the hydraulic steering control units:

1.Low cost, reliable.
2.No load reaction on the steering wheel comfortable.
3.Manual operation available when the pump doesnt work.
4.Low control torque, continuous operation.
5.According to the system, different function and pressure level valves available.

BZZ hydraulic steering unit 630cc closed center for wheel loader
