4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports

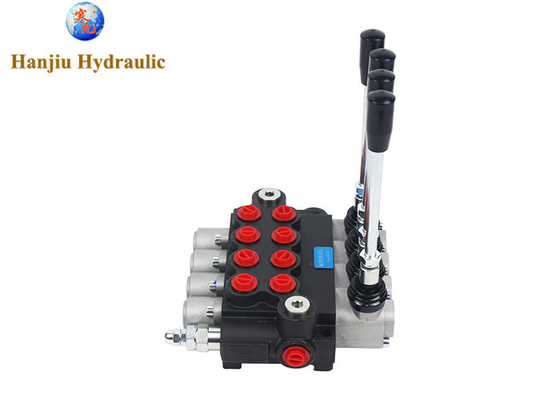

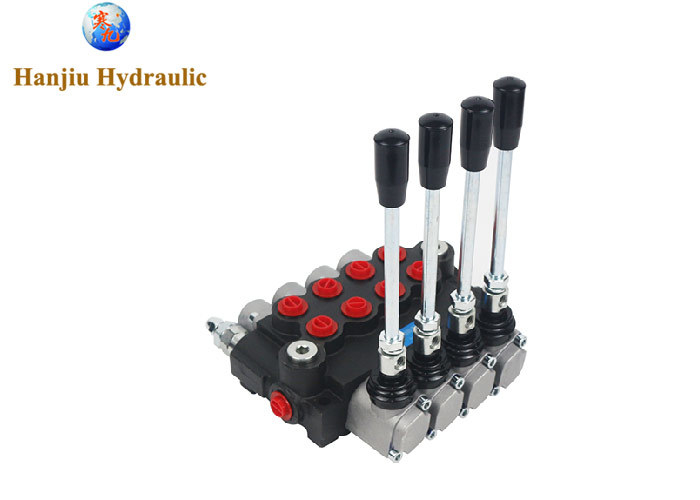

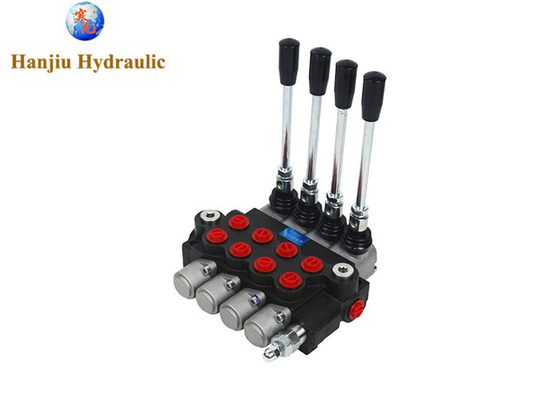

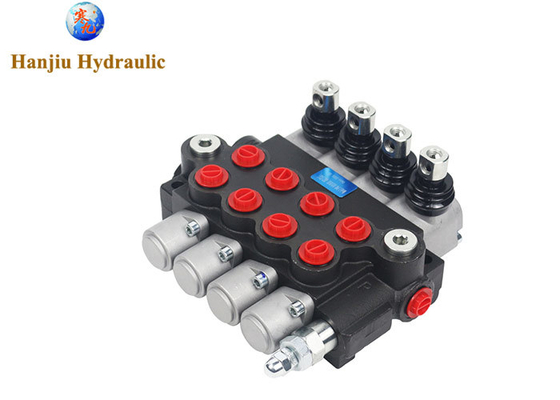

Large Image : 4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	2P40

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Monoblock Valve	Material:	Cast Iron
Apply To:	Tractor Vehicles, Agricultural Machines	Spool:	4spools
Max Operation Pressure:	250 Bar	Control Type:	Spring Return, Detent Return
Highlight:	Hydraulic Directional Valve 40L 4 Spools , Directional Control Valve G3/8 Ports , 4 Spool Hydraulic Valve with Warranty

4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size

type code

P40-4 manual spring type

Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8

flow rate	40 liters
number of spools	4 spools
inlet section valve	side inlet, with relief valve
relief valve set pressure	200bar
inlet port size	G3/8
spool type	3 Positions, Double Acting
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G3/8
outlet section type	top outlet,side
outlet port size	G3/8

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 0

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 2

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 3

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 4

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 5

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 6

Different types

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports 7

P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / RD500 series...

The valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.

if you are not sure about which valves you need,

pls feel free to contact us !
