OMR 160 Hydraulic Motor, OMR 200 Hydraulic Motor, BMR 160 Orbit Hydraulic Motor
Quick details:
1, BMR Hydraulic motor is a replacement OMR hydrdaulic motor
2, BMR hydraulic motor is also a replacement to , Eaton Char lynn, M+S, Parker
3, same installation, same measurement, same performance, 100% replace
4, fast delivery, much more lower price
HANJIU is the supplier of Orbit Hydraulic Motors.
We offer various solutions, applications and types of motors adapted to your requirements.
The displacements are variable between 8 cc/rev to 985 cc/rev. The speed range varies from 1380 rpm for the smallest motors to 300 rpm for the bigger types. The maximum operating torques are variable between 9,3daNm and 182daNm. Our motors are interchangeables with motors supplied by best known manufacturers. We offer the best price / performance ratios on the market and have short delivery supplies.

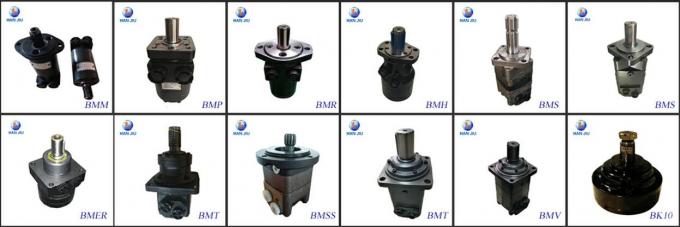

Orbital Hydraulic Motor line: MM, MP, MR, MS, MT e MV, J, S/T, 2K, 4K, 6K, 10K, TJ, TE, TG, TF. PDF data sheets HYDRAULIC MOTOR please contact us to ask.
Model Crossing:
| MOTOR CROSS REFERENCE TABLE |
| |
HANJIU
HYDRAULIC |
M+S
HYDRAULIC |
EATON
CHAR LYNN |
|
ROSS
TRW |
WHITE
CROSS |
PARKER |
SAM
BREVINI |
BOSCH
RECROTH |
| BMM |
MM MLHK |
J SERIES |
OMM |
|
|
|
BGM |
MGX |
| BMP/BM1 |
MP HP |
H SERIES |
OMP DH |
MF MG |
WP RS |
TC TE TB |
BG |
MGP GXP |
| BMR/BM2 |
MR HR MLHRW,RW |
S,T SERIES W SERIES |
OMR DS OMEW |
MB |
WR RE |
TF |
BR |
MGR GMR |
| BMH/BM4 |
MH MLHH HW HWF |
|
OMH |
ME |
RE |
TG |
|
|
| BMS/BM5 |
MS MSY MLHS |
2000 SERIES |
OMS |
ME |
RE |
TG |
HPR |
MGS GMS |
| BMT/BM6 |
MT MLHT MTM |
6000 SERIES |
OMT TMT |
MJ |
|
|
HT |
MGT,GMT |
| BMV |
MV MLHV |
10000 SERIES |
OMV |
|
|
|
|
MGV GMV
|
Main Specifications:
| |

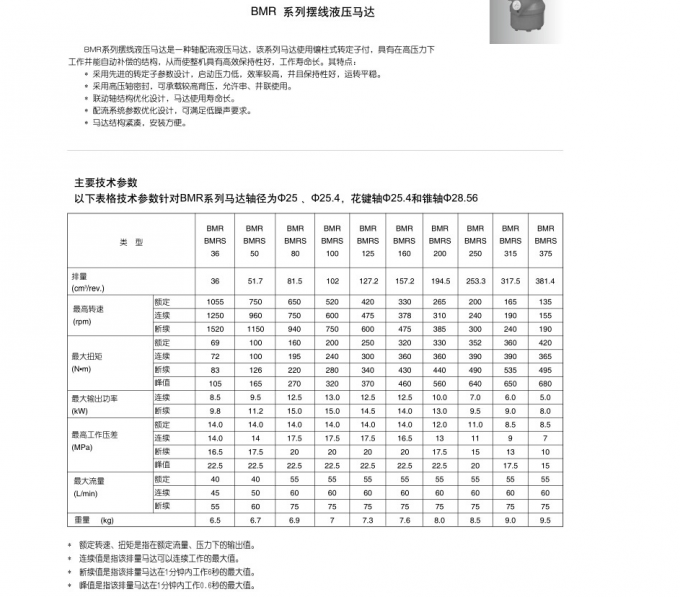

| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type |
BMR
BMRS
36 |
BMR
BMRS
50 |
BMR
BMRS
80 |
BMR
BMRS
100 |
BMR
BMRS
125 |
BMR
BMRS
160 |
BMR
BMRS
200 |
BMR
BMRS
250 |
BMR
BMRS
315 |
BMR
BMRS
375 |
| Geometric displacement (cm3 /rev.) |
36 |
51.7 |
81.5 |
102 |
127.2 |
157.2 |
194.5 |
253.3 |
317.5 |
381.4 |
| Max. speed (rpm) |
cont. |
1085 |
960 |
750 |
600 |
475 |
378 |
310 |
240 |
190 |
155 |
| int. |
1220 |
1150 |
940 |
750 |
600 |
475 |
385 |
300 |
240 |
190 |
| Max. torque (N·m) |
cont. |
72 |
100 |
195 |
240 |
300 |
360 |
360 |
390 |
390 |
365 |
| int. |
83 |
126 |
220 |
280 |
340 |
430 |
440 |
490 |
535 |
495 |
| peak |
105 |
165 |
270 |
320 |
370 |
460 |
560 |
640 |
650 |
680 |
| Max. output (kW) |
cont. |
8.5 |
9.5 |
12.5 |
13 |
12.5 |
12.5 |
10 |
7 |
6 |
5 |
| int. |
9.8 |
11.2 |
15 |
15 |
14.5 |
14 |
13 |
9.5 |
9 |
8 |
| Max. pressure drop (MPa) |
cont. |
14 |
14 |
17.5 |
17.5 |
17.5 |
16.5 |
13 |
11 |
9 |
7 |
| int. |
16.5 |
17.5 |
20 |
20 |
20 |
20 |
17.5 |
15 |
13 |
10 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
17.5 |
15 |
| Max. flow (L/min) |
cont. |
40 |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
| int. |
45 |
60 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| Weight (kg) |
6.5 |
6.7 |
6.9 |
7 |
7.3 |
7.6 |
8 |
8.5 |
9 |
9.5 |
|
|
Technical data for BMR with 31.75 and 32 shaft:
|
| Type |
BMR
BMRS
36 |
BMR
BMRS
50 |
BMR
BMRS
80 |
BMR
BMRS
100 |
BMR
BMRS
125 |
BMR
BMRS
160 |
BMR
BMRS
200 |
BMR
BMRS
250 |
BMR
BMRS
315 |
BMR
BMRS
375 |
| Geometric displacement (cm3 /rev.) |
36 |
51.7 |
81.5 |
102 |
127.2 |
157.2 |
194.5 |
253.3 |
317.5 |
381.4 |
| Max. speed (rpm) |
cont. |
1250 |
960 |
750 |
600 |
475 |
378 |
310 |
240 |
190 |
155 |
| int. |
1520 |
1150 |
940 |
750 |
600 |
475 |
385 |
300 |
240 |
190 |
| Max. torque (N·m) |
cont. |
72 |
100 |
195 |
240 |
300 |
380 |
450 |
540 |
550 |
580 |
| int. |
83 |
126 |
220 |
280 |
340 |
430 |
500 |
610 |
690 |
690 |
| peak |
105 |
165 |
270 |
320 |
370 |
460 |
560 |
710 |
840 |
830 |
| Max. output (kW) |
cont. |
8.5 |
9.5 |
12.5 |
13 |
12.5 |
12.5 |
11 |
10 |
9 |
7.5 |
| int. |
9.8 |
11.2 |
15 |
15 |
14.5 |
14 |
13 |
12 |
10 |
9 |
| Max. pressure drop (MPa) |
cont. |
14 |
14 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
17.5 |
13.5 |
11.5 |
| int. |
16.5 |
17.5 |
20 |
20 |
20 |
20 |
20 |
20 |
17.5 |
15 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
21 |
17.5 |
| Max. flow (L/min) |
cont. |
45 |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
| int. |
55 |
60 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| Weight (kg) |
|
6.5 |
6.7 |
6.9 |
7 |
7.3 |
7.6 |
8 |
8.5 |
9 |
9.5 |
|
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
|
