Product Details:
Payment & Shipping Terms:
|
| Product Name: | CAT Steering Motor | Model. No.: | 101S-80 |
|---|---|---|---|
| Relieve Valve: | 15Mpa | Function: | Open Center Reaction |
| Max Back Pressure: | 2.5 MPa | Warranty: | 12months |
| High Light: | hydraulic orbital valve,forklift steering valve |
||

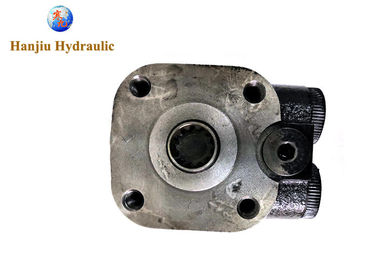

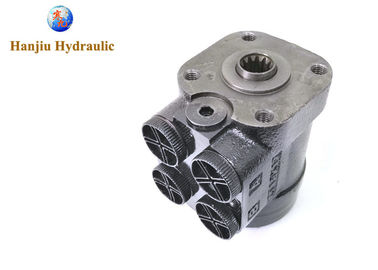

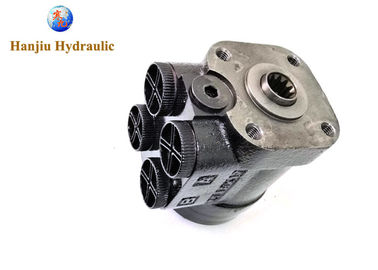

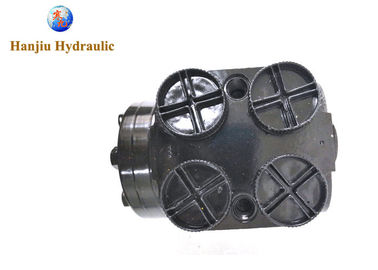

Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E hydrostatic steering unit
Quick details:
Features:
Multi types, sizes, key or splind shafts available
Suitable for nearly all kinds of ,Massey Ferguson, Fiat, MTZ, , tractors.
Different oil port,different types of shaft, different flange can choose.
Many kinds of displacement, can suitable for any hydra ulic systems.
High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).
100% replace the OEM parts,70%-80% save cost.
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101*-***-**-* |
||||||||||
| Function code | 1,2,3 | 1,3 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 |
1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON |
240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON |
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
|
100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
OTHER TYPES FOR YOUR CHOICE
