Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Disc Motor | Model No.: | BMK10 |
|---|---|---|---|
| Max.torque(N.m): | Cont.710N.m/int.1080N.m | Max.speed(rpm): | Cont.610rpm/int.830rpm |
| Max Pressure Drop: | Cont.20Mpa/int.30Mpa | Max Flow: | Cont.150l/min/int.170l/min |
| High Light: | 119-1031-003,BMK10 low speed hydraulic motor,low speed hydraulic motor BMK10 |
||

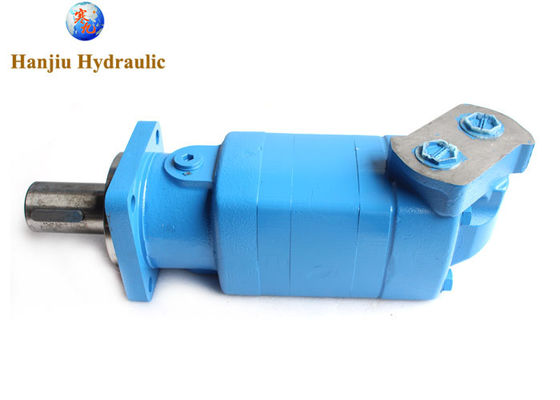

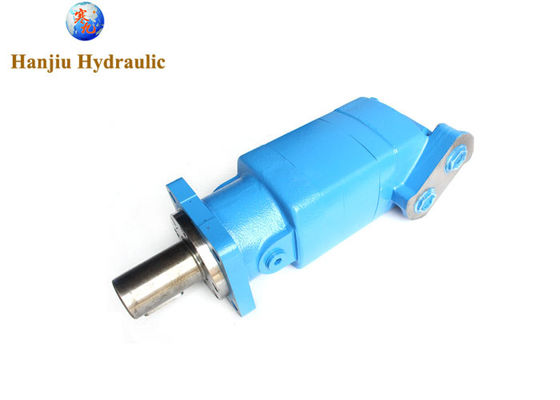

119-1031-003 low speed motor hydraulics 57.4 cu in Charlynn 10000 Series Motor
Hanjiu BMK10
EATON CHAR-LYNN 10000
EATON CHAR-LYNN 10K
Model number: BMK10-1128
| Main Specification | ||||||
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
| Model 119-1031 |
| 57.4 cu in displ |
| PSI 2750 cont |
| PSI 3500 int |
| PSI 3750 peak |
| Torque 23,910 in lbs cont |
| Torque 30,460 in lbs int |
| 179 RPM at 45 GPM |
| 279 RPM at 70 GPM |
| Rotation reversible |
| Mount SAE C 4 bolt |
| Shaft 2-1/4" dia x 4.49" w/1/2" keyway |
| Ports SAE 16 |
| drain SAE 6 |
| Size 16-1/4" x 6" x 6" |
| weight 110 lbs. |
Related code
Eaton similar type motors are available we belows:
