6.15 Cu In PTO Drive Motor Dynamic BMSY-100-E2-SL-S Low Speed High Torque Type

6.15 cu in PTO Drive Motor Dynamic BMSY-100-E2-SL-S, Low Speed High Torque Type

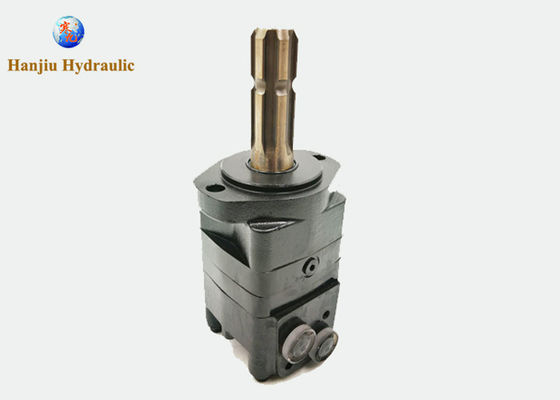

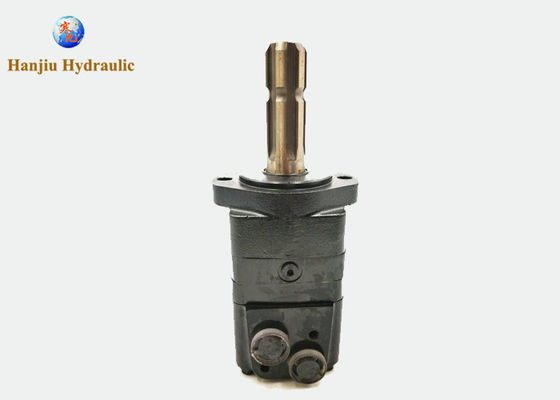

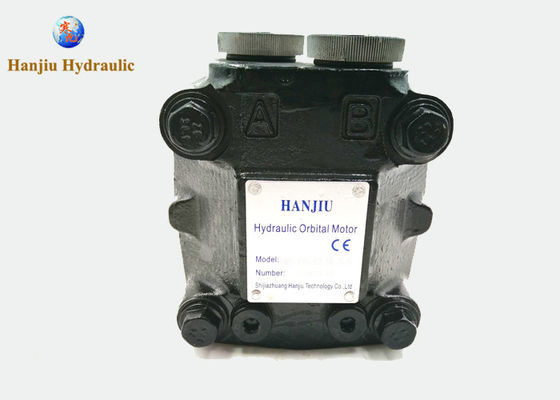

PTO DRIVE MOTOR
Brand new, hydraulic motor with agricultural standard six tooth splined shaft. Tapered roller bearings on output shaft for high axial and radial load capacity. Shaft has retention groove centered 1-1/2" from shaft end.
Interchangeable with the following motor lines: CHAR-LYNN 2000, DANFOSS OMS/OMSS, WHITE RE/DH, PARKER-ROSS MB/TF.

SPECIFICATIONS
Disp. 6.15 cu. in./rev.
Motor Type Geroler
Pressure:
2576 PSI cont.
3091 PSI int.
Torque:
2124 in-lbs. cont.
2655 in-lbs. int.
Speed:
748 RPM cont.
900 RPM int.
Flow:
19.7 GPM cont.
23.6 GPM int.
Rotation Reversible
Mount 2 bolt SAE A
Shaft 1-3/8" 6T spline, 4" long
Rqd. Filtration 25 Micron
Ports SAE 10
Drain SAE 4
Size 6-7/8" x 5-3/16" x 4-1/16"
Shpg. 27 lbs.

BMSY introduction:

The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC
distribution fl ow and high pressure. These motors can be supplied with various options for
multifunctional operations in accordance with the application requirements. The output shaft
tapered roller bearings permit high axial and radial forces offering a smooth operation during low
pressure start up and high pressure operation.
These low weight advanced construction design motors are manufactured in accordance with the
requirements of the ISO 9000-2000 quality system.

More flange, shaft, oil ports, displacement can be provided as below:
