BMSY Low Speed High Torque Motors For Agri And Construction Attachment

Name: BMSY Low Speed High Torque Motors For Agri And Construction Attachment
Brand: HANJIU CHINA
SKU: BMSY
Rating: 4.7 (134 reviews)

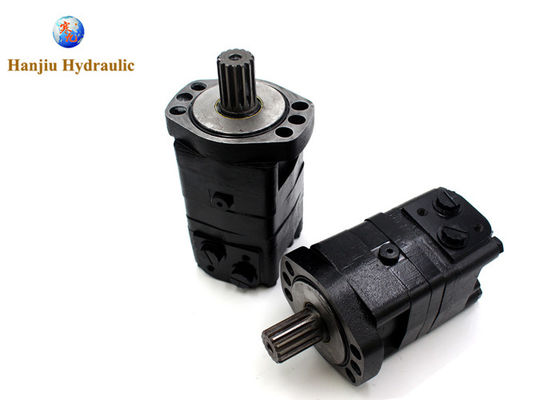

Large Image : BMSY Low Speed High Torque Motors For Agri And Construction Attachment

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:

Hydraulic Motor

Type:

Low Speed High Torque

Flange:

4 Hole, Rhomb

Size:

80cc - 500 Cc

High Light:

bmsy low speed high torque motors

bmsy motors

80cc low speed high torque motors

BMSY Low Speed High Torque Motors for Agri and Construction Attachment

Distribution Type: Disc Distribution
Model: BMSY
Displacement: [in/rev] [4.88~22.88] cm/rev 80~415
Max Operating Pressure: PSI = 3263 MPa = 22.5
Speed Range: RPM = 30~800
Max. Output Power: [HP] [32] Kw = 24

Main Specifications:

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 0

APPLICATION GUIDELINES:
For optimum results the following working conditions are recommended:
* Oil temperature should be between 20o - 60o C [68o - 180o F] * Oil filter of 10 - 20 micron
* Oil viscosity 42 - 74 mm2 at 40o C
* Different shafts are used when there is a radial load or not. Check data pages
* For longer life we suggest the motor at start up, run for a shorter period of time (one hour) at
no more than 30% of rated speed and pressure.

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 1

The OEM project we serve are Sweeper motors, Lawn mower motors, Rotary drilling motors,

Auger motor, Wood splitter motors, Fishing winch motors, Harvester motor etc.

Bellow are reference photos.

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 4

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 5

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 6

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 7

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 8

BMSY Low Speed High Torque Motors For Agri And Construction Attachment 9
