Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Motors | Type: | Low Speed High Torque Hydraulic Motors |
|---|---|---|---|
| Model No.: | 119-1031-003 | ||
| High Light: | 2700nm geroler hydraulic motor,179Rpm geroler hydraulic motor,119-1031-003 |
||

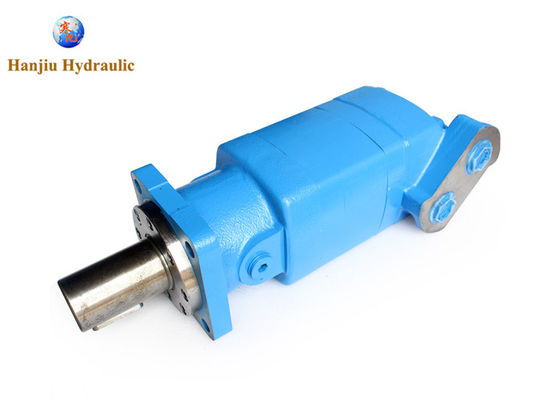

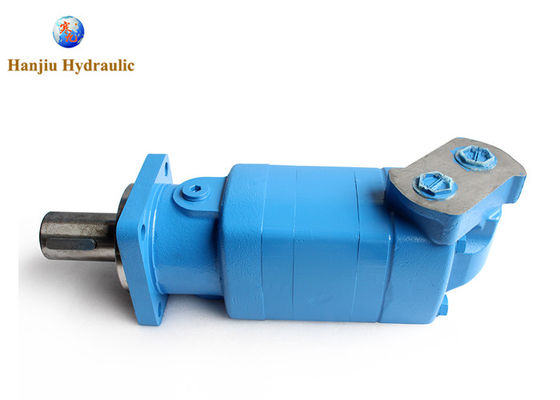

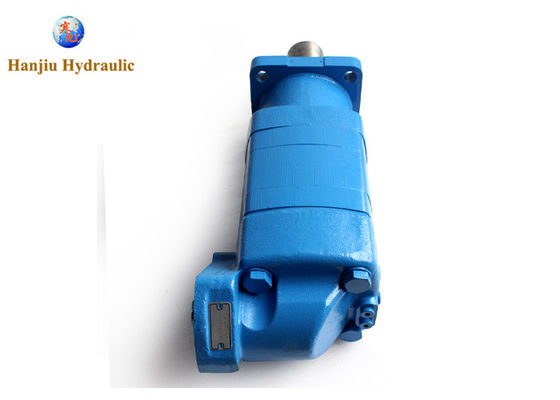

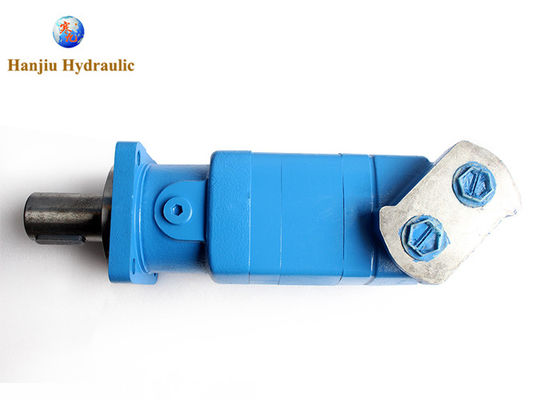

EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor, 2700 Nm, 179 Rpm
| SPECIFICATIONS | |
| MOUNT TYPE | 4 Bolt |
| SHAFT SIZE & TYPE | 2 1/4 in x 1/2 in Straight |
| BOLT CIRCLE DIA. | 6 3/8 in |
| GEROTER/GEROLER OPTIONS | Standard |
| INLET PRESSURE [MAX] | 4000 psi |
| MOUNTING TYPE CODE | A |
| DISPLACEMENT (IN³/REV) | 40.6 |
| ROTATION | Standard Rotation |
| PORT LOCATION | Side Port |
| (CATALOG) SHAFT TYPE | 2 1/4 in x 1/2 in Straight |
| SPECIAL FEATURES HARDWARE CODE | 0 |
| SHAFT TYPE | Straight |
| DUTY | Standard-Duty |
| SEAL MATERIAL | Buna-N |
| CORROSION RESISTANT | No |
| SPLINES | 0 |
| OUTPUT SHAFT CODE | 1 |
| MOUNTING HOLE SIZE | 0.66 in |
| MOTOR TYPE | Disc Valve |
| RETURN PRESSURE [MAX] | 4000 psi |
| FLANGE ORIENTATION | Standard |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 179 / 45 rpm |
| MOUNTING HOLES | 0.660 in |
| PORT TYPE | SAE O-Ring |
| FLOW RATE | 45 gal/min |
| PILOT DIAMETER | 5 in |
| RPM [MAX] | 179 rpm |
| SHAFT SIZE | 2 1/4 in |
| PAINT/PACKAGING | Individual Box |
| VISCOCITY (SUS) [MAX] | 70 |
| SERIES | 10,000 Series |
| 10000 Series | |
| PORT SIZE & LOCATION | SAE-16 Side |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 23897 in lb |
| MOTOR ELEMENT | Geroler |
| DRAIN | 0.5625-18 UNF-2B SAE O-Ring Port Drain |
| MATERIAL | Cast Iron |
| PAINT CODE | 0 |
| FLOW [MAX] | 45 gal/min |
| PORT CODE | A |
| PRESSURE [MAX] | 2750 psi |
| PORT SIZE | SAE-16 |
| 39308 | |
| WEIGHT | 108.0 LB |
| Part Number | Displacement cm³/rev (in³/rev) |
| 119-1029-003 | 480 (29.3) |
| 119-1030-003 | 665 (40.6) |
| 119-1031-003 | 940 (57.4) |
119-1031 CHAR-LYNN. HYDRAULIC MOTOR, CHAR-LYNN (CHARLYNN) 10,000 SERIES, 57.4 IN3 DISPLACEMENT, 4 BOLT MOUNT, 2-1/4" KEYED SHAFT, #16 ORING PORTS. EATON CHAR-LYNN (CHARLYNN) #119-1031, 119-1031-002, 119-1031-003.
