Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Gear Motors | Displacement: | OMRWN50,OMRWN80,OMRWN100,OMRWN125,OMRWN160,OMRWN200,OMRWN250,OMRWN315,OMRWN400 |
|---|---|---|---|
| Applications: | Agri Machines, Platform Equipments, Lawn And Turf Equipment | Replacement: | OMRWN |
| Hydraulic Valve: | Spool Valve With Needle Bearing | Warranty: | 12months |
| High Light: | 4 Bolt Mount Hydraulic Wheel Motor,Danfoss Omrw Hydraulic Wheel Motor,4 Bolt Wheel Mount Hydraulic Motor |
||

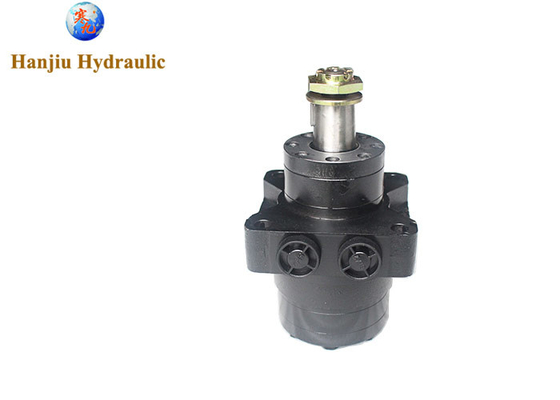

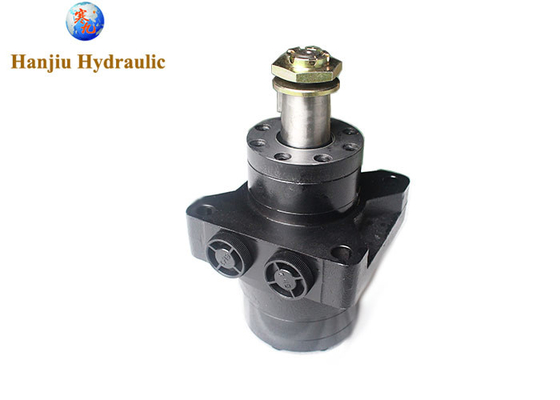

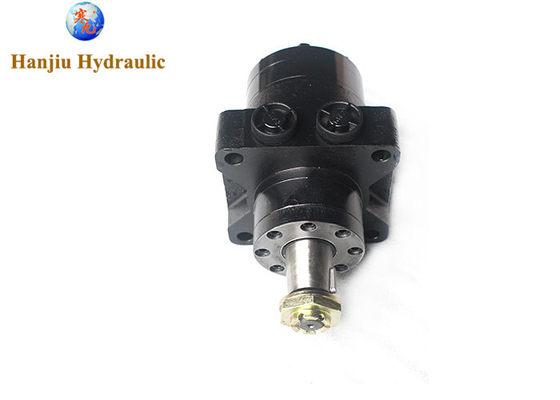

hydraulic wheel motor Danfoss OMRW motor 1-1/4" tapered1:8 threaded shaft, 4-Bolt A mount
Product details:
Output volume (cc/rev): 100.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 123.00
L1 (mm): 20.0
ORDER DETAILS
| Mounting flange: | Wheel | |||||
| shaft size | φ82.55mm | |||||
| bolt circle diameter | φ147.6mm | |||||
| Shaft | Main port size Port style | Drain port | size | High pressure | Check valve | Main type designation |
| Tap. Ø35 mm | G1/2 | side port | G1/4 | yes | yes | BMRWN |
| Tap. Ø 1 1/4 in | 7/8-14 UNF | side port | 7/16-20 UNF | yes | yes | BMRWN |
RELATED DANFOSS TYPE CODE
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| Tap. Ø35 mm | 151-6300 | 151-6301 | 151-6302 | 151-6303 | 151-6304 | 151-6305 | 151-6306 | 151-6307 | 151-6308 |
| Tap. Ø 1 1/4 in | 151-6430 | 151-6431 | 151-6432 | 151-6433 | 151-6434 | 151-6435 | 151-6436 | 151-6437 | 151-6438 |
Our hydraulic motors are very practical and adaptable. Whether it is agricultural machinery, forestry machinery, mining equipment or construction machinery, you can find the most suitable products. Choosing the hydraulic motor of Hanjiu Technology, you can safely use it in tree stump grinder, augers, trenchers, log splitters, etc., and it will definitely bring the strongest power support to your hydraulic system.
