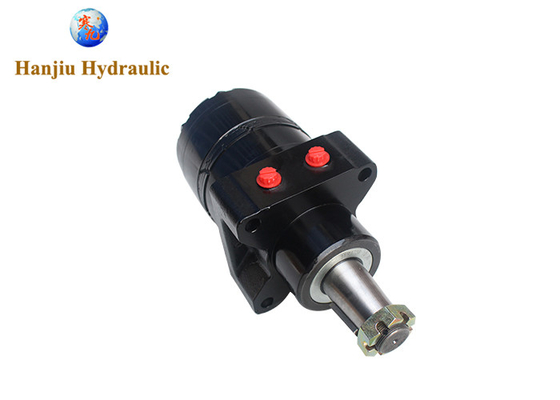

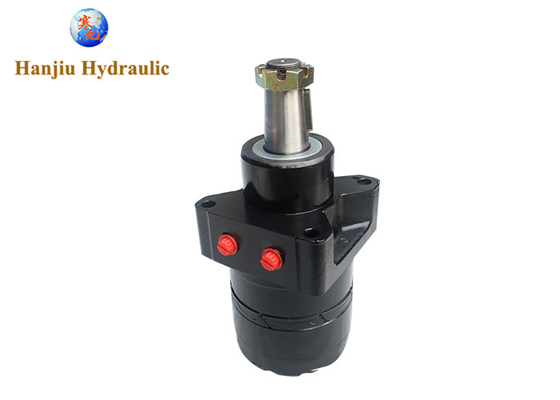

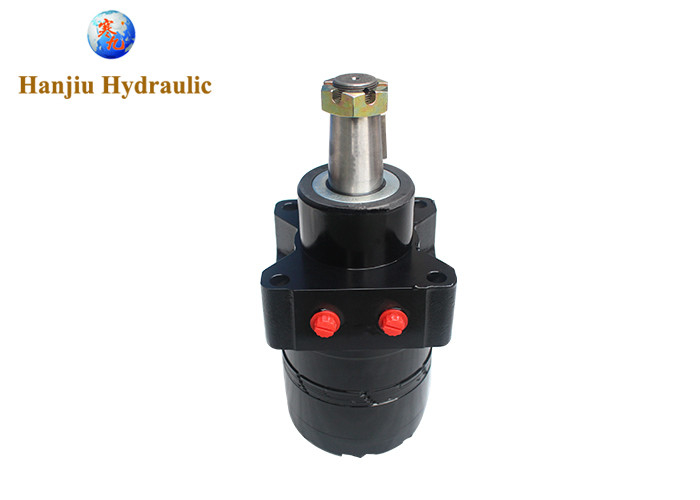

Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement

Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement
Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement

Large Image :  Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: TG0280LS080AAFW
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 150 - 170 us dollar
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Features: Parker Alternative Item: Low Speed High Torque Motor
OEM #: TG0280LS080AAFW Manufacturer: Hanjiu
Displacement: 280cc Shaft: Taper
High Light:

parker hydraulic wheel motor

,

lsht hydraulic wheel motor

,

parker lsht hydraulic motor

Parker TG0280LS080AAFW TG Series LSHT Hydraulic Wheel Motor replacement



This is a Parker TG0280LS080AAFW replacement motor.



Specifications
Series: TG
Shaft: 1 1/4" Tapered
Rotation: Standard
Displacement (cm3/rev): 0280
Mounting: Wheel, Front Brake
Geometric Displacement: 280 cm3/rev (17.1 in3/rev)
Maximum Speed: 334 rev/min
Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 95 lpm (25 gpm)
Max. Differential Pressure (continuous / intermittent): 207 bar (3000 PSID) / 276 bar (4000 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent: 796 Nm (7044 lb-in) / 1073 Nm (9499 lb-in)
Maximum Performance: 31 KW (42 HP)
Minimum Starting Torque - Continuous / Intermittent: 675 Nm (5972 lb-in) / 870 Nm (7699 lb-in)
Maximum Side Load at Key: 16000 N (3597 lb)
Porting Code: S
Porting: 7/8-14 SAE
Shaft Code: 08
Rotation Code: 0
Apply to: Hustler 604467
Options code: AAFW
Option: Fluorocarbon (Viton) Seals, High Temperature Commutator Seal, Black Paint
Mounting code: L





Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement 0





We have a full range of Parker high-end replacement Motors.
We are able to provide you TE, TF, TG, TB, TC, TJ series to cover all your local request with more reasonable cost and stable lead time .
Below are some examples.

Parker Hydraulic Wheel Motor TG0280LS080AAFW TG Series LSHT Replacement 1





If you are looking for high-end Parker replacement motors, contact us.
