Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Applications: | Agricultural Machine, Lifting Equipment | Replacement: | Hanjiu BMRS = DS, Eaton S,T Series , M+S MR Etc |
| Oil Temperature: | Normal-35℃-80℃ | Shaft: | Cylindrical Shaft φ25.4mm,woodruff Key |
| High Light: | fluid solution lsht motor,375cc lsht motor,1" lsht motor |
||

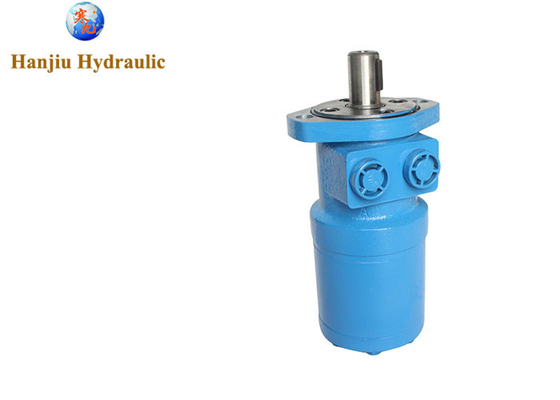

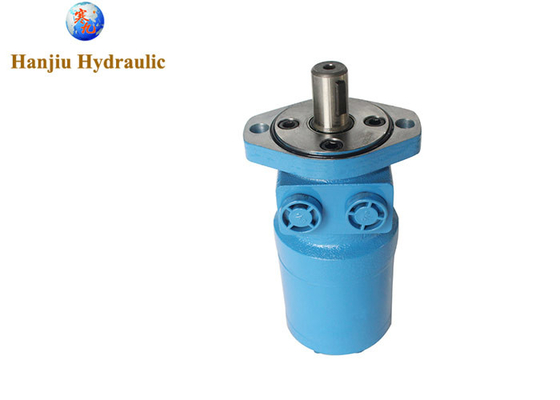

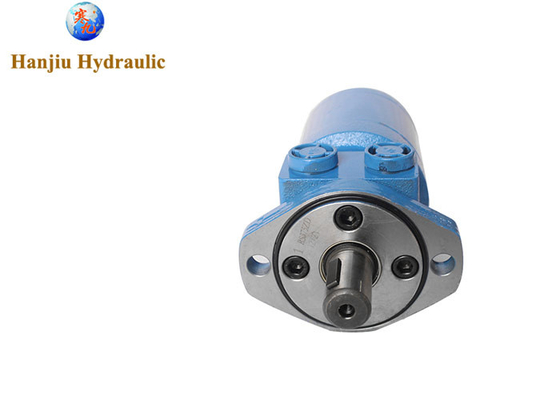

BMRS-375-H2-K-S : Fluid Solution LSHT Motor, 375cc, 15.85GPM, SAE A 2-Bolt Mount, 1"
The BMRS series advanced ROLORTORC gear set, shaft distribution fl ow, hydraulic motor is a compact, low noise, high efficient high torque low speed design. The ROLORTORC gear set also affords a reliable smooth start up at low pressure. BMRS motors are available with optional radial needle bearings (by special order) for side load applications. The low weight advanced construction design is manufactured in accordance with the requirements of ISO 9000-2000 quality system.
This BMRS motors is interchangeable for Parter TE/TF motor, Charlynn H/S/T motor
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Applications :
