Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Oil Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | OMR | Displacement: | 160CC |
| Speed: | 341 RPM - 372 RPM | Flow: | 55 Lpm -60 Lpm |
| Pressure: | 14mpa-17.5mpa | Output: | 11.3-15.2kw |
| High Light: | integral brake hydraulic orbit motor,omr160 hydraulic orbit motor,control valve orbit hydraulic motor |
||

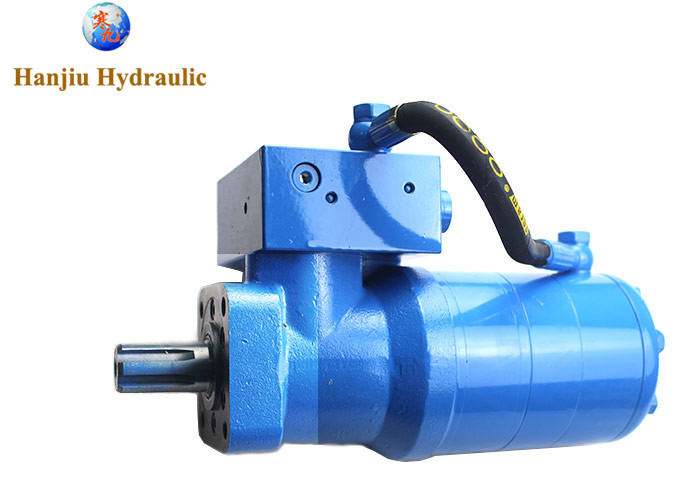

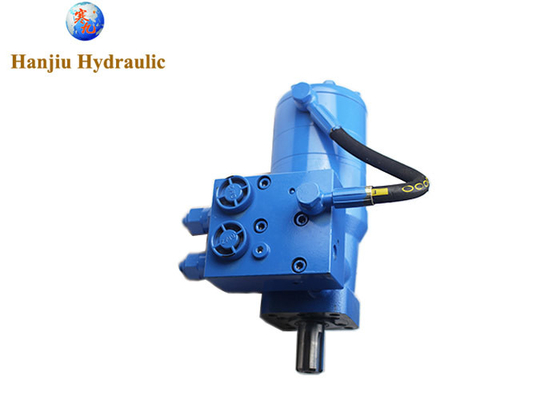

Hydraulic Orbit Motor Integral Brake Motor OMR160 With Control Valve
Specifications:
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR Bk01 36 | BMR Bk01 50 | BMR Bk01 80 | BMR Bk01 100 | BMR Bk01 125 | BMR Bk01 160 | BMR Bk01 200 | BMR Bk01 250 | BMR Bk01 315 | BMR Bk01 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
1. Advanced manufacturing equipment for Gerolor gear sets, using low pressure starting,
2. Provide smooth, reliable operation and high efficiency.
3. The shaft seal can withstand high back pressure, and the motors can be used in parallel or in series.
4. The drive connector is specially designed to prolong the service life
5. The power distribution system is specially designed to meet the low noise requirements of the unit.
At the same time, the omr 160 hydraulic motor is small and labor-saving to install, which is very convenient. If you want to buy OMR hydraulic motors and Eaton Charling, M+S, Parker motors, believe me, a BMR hydraulic motor made by Hanjiu Technology can be completely replaced. Hanjiu Technology has always been committed to product research and development, so we can do it Same installation, same size, same performance, 100% replacement, and we deliver faster and at a much lower price compared to these well-known industries. If you want to get the product as soon as possible at the lowest price, Hanjiu Technology will be your best choice. In order to complete our services, we have been providing quality products at reasonable prices.
Hanjiu Technology has its own factory to manufacture hydraulic motors. And we have 10 years of overseas export experience and more than 18 years of local market experience, and we are your reliable partner. We offer international express (DHL, Fedex, TNT...), by air and sea. According to your time requirements, considering the volume and weight in detail, we will suggest you the best shipping method.
We have considered all the factors for you. If you want to know more detailed product parameters, visit our official website Hanjiu Technology. The product interface has a more detailed introduction. All specifications and parameters of Hanjiu Technology products strictly follow the current standard. Hanjiu Technology looks forward to your visit.
