Product Details:
Payment & Shipping Terms:
|
| Product Name: | LSHT MOTOR | Displacement: | 250CC |
|---|---|---|---|
| Max Speed: | Cont300/int.360rpm | Max Torque: | Cont.708/int.860 N.m |
| Oil Temperature: | Normal-30℃-90℃ | Max Flow: | Cont 75/int90 L/min |
| High Light: | eaton char lynn hydraulic motor,2k char lynn hydraulic motor,lsht charlynn motor |
||

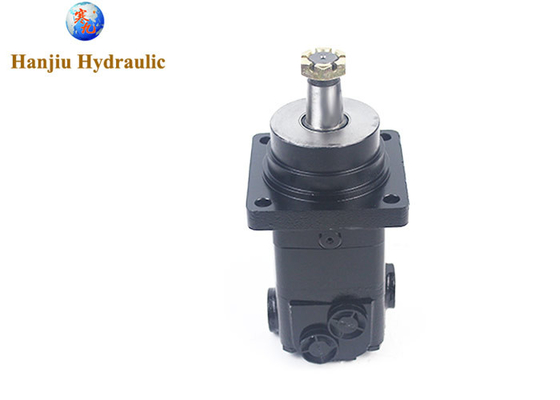

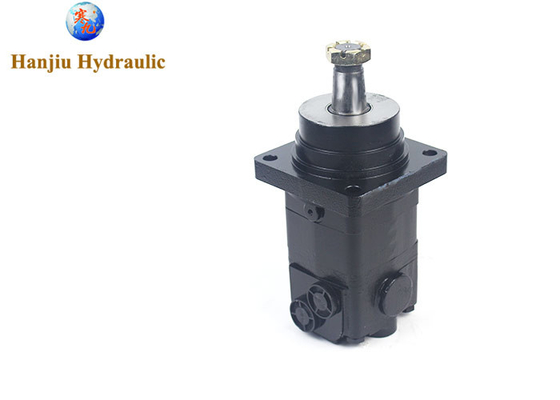

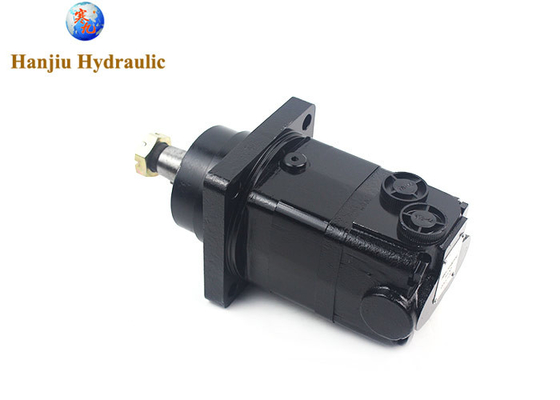

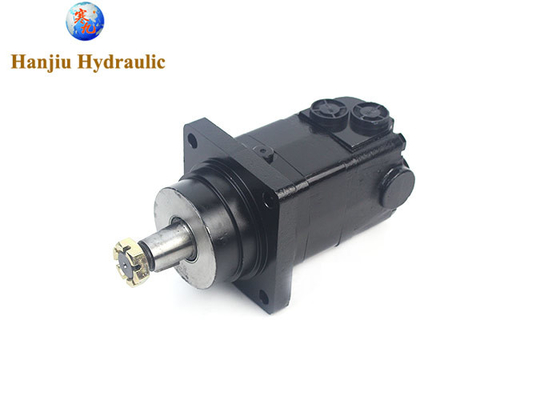

charlynn eaton 2K LSHT Hydraulic engin BMSY-250-WE-T4-S wheel motor, 1 1/4 tap shaft
Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY 475 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
our types:
Hanjiu Technology Company, the headquarters of Hanjiu Technology Company in Shijiazhuang, China, and now we are one of the most professional hydraulic companies in China, not only in China, but also in overseas business, the customer service has covered many countries and regions. Hanjiu Technology Co., Ltd. as a professional research and production of hydraulic motors company, our hydraulic motors product models are very complete, all types of motors can be seen on the market, we can produce. As a new generation of innovative companies, we have also developed some more practical motors according to the characteristics of some motors, such as bmsy motor ,In multifunctional operation, it is also possible to provide individual variants of the unit to suit the requirements of the user's application.All in all, in our company can always find the motor you want,our company's products in addition to very good performance, but also has many other features worth buying, such as long life, cost-effective and so on. It is also second to none in terms of after-sales, no matter what trouble you encounter, you can always contact customer service, we will quickly make a solution based on your problem. In addition, our production is also very fast, and the warranty period is relatively longer, reaching 18 months. We will never cut corners because the price is lower than other manufacturers, our products are always fine, can carry out one-to-one quality inspection of each product, and strive to bring the greatest benefits to the local people.
