Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Valve Motors | Model: | BMK10 |
|---|---|---|---|
| Displacement: | 665.3 CM3/R [40.60 IN3/R] | Flange: | 127.0 [5.00] PILOT DIA. |
| Shaft: | 16teeth SPLINE SHAFT | Port: | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| High Light: | 10k charlynn motor,spline shaft charlynn motor,winch drive char lynn hydraulic motor |
||

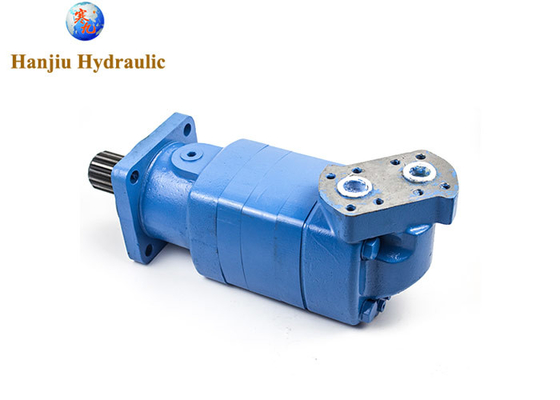

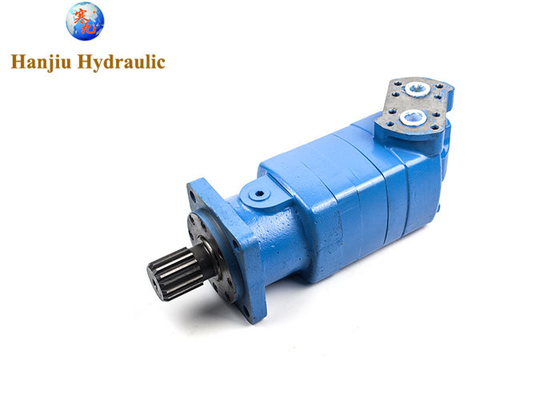

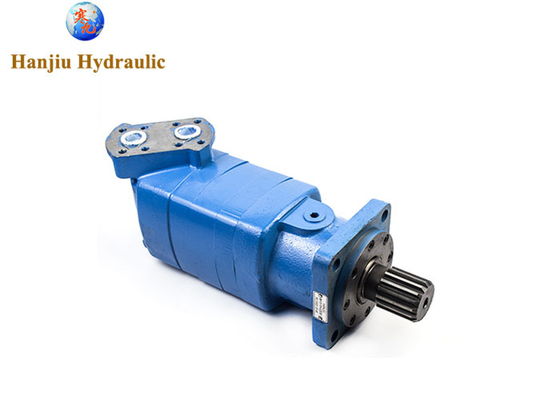

HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor
the same flange, same shaft size and same port threads
| Series | 10000 - Standard type |
| Displacement | 665cm³/r |
| Mounting Type | STANDARD, 4 BOLT; 127.0 mm PILOT DIA |
| Shaft Type | 53.98 [2.125] DIA. FLAT ROOT |
| Maximum Operating Temperature | 180 °F |
| Output Shaft Size | Spline shaft |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size |
1 1/4 inch Split Flange
|
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:
In construction machinery, mining machinery, construction machinery, etc., low-speed and high-torque hydraulic motors are often used to drive walking or lifting mechanisms. A small number of low-speed and high-torque hydraulic motors are axial piston type, most of which are radial piston type. Since radial piston hydraulic motors can balance part or all of the hydraulic force acting on the high and low pressure chambers of their rotors, plus The size and mass of this type of motor are large, so it is characterized by large transmission torque and can output large power at low speed. In this way, a reduction gear is often not required to be connected to the working mechanism, thereby simplifying the machine. The inner curve multi-action hydraulic motor has the advantages of large transmission torque, small torque pulsation, small mass, compact structure and high starting efficiency. Therefore, it is the most widely used low-speed high-torque hydraulic motor.
HANJIU TECHNOLOGY sells all kinds of high-torque hydraulic motors. when you meet any problems during use, you can always contact HANJIU, our expert will give you help
