Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual

Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual
Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual

Large Image :  Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU CHINA
Certification: CE/ISO9001:2015
Model Number: BMK2
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: 2pcs/32x32x17cm
Delivery Time: 25 - 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 100000 pieces per year
Detailed Product Description
Product: Earthmoving Attachment Drive Motor Type: 104-,105-,106-
Flange: Oval Flange Shaft: Key Shaft
Displacement: 200cc/315cc/400cc/500cc Max Speed: Cont.185/int.225rpm
High Light:

manual low speed high torque hydraulic motor

,

charlynn low speed high torque hydraulic motor

,

manual lsht motor





Low Speed High Torque Eaton Charlynn 2000 Motor, Hydraulic Service Manual Eaton Motor





Product details



order type:BMK2



Flange:4 bolts oval flange



shaft:key shaft:spline shaft:31.75mm



ports:7/8-16unf



fit:earthmoving attachements



quality:aftermarket  OEM quality





Main Specifications:



Type BMK2
80
BMK2
100
BMK2
125
BMK2
160
BMK2
200
BMK2
250
BMK2
315
BMK2
375
Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

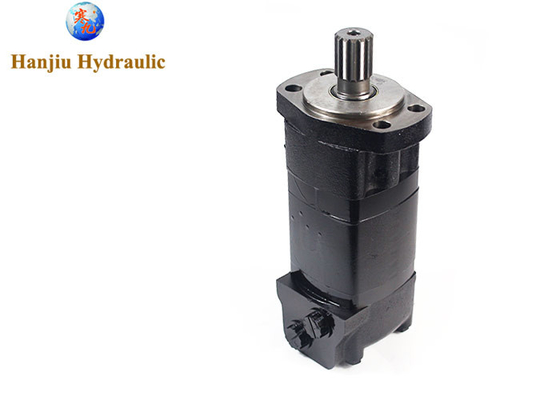

Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual 0

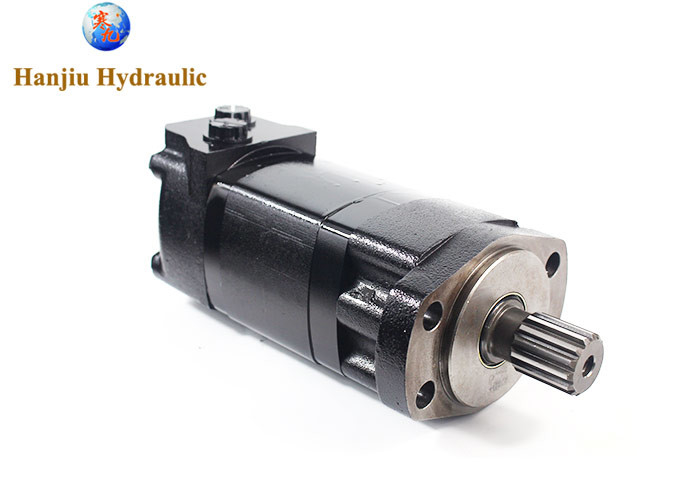

Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual 1

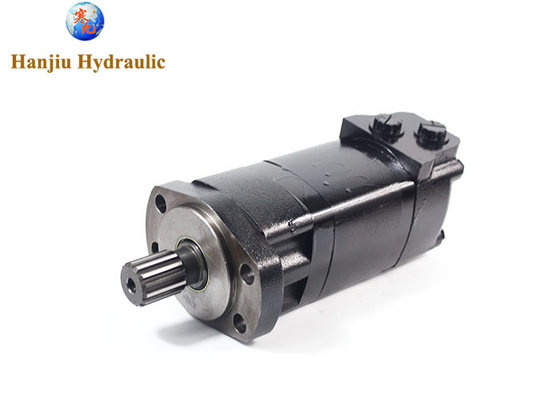

Eaton Charlynn 2000 Low Speed High Torque Hydraulic Motor Manual 2



Hydraulic motor for any machine, is a very core component, for the sense of use of some products also has a very direct impact.  we in the purchase of hydraulic motor, we must ensure that the quality of qualified.



When it comes to quality and popularity, most people might think of the Eaton Hydraulic Company, where eaton is based in the United States, with more than 20 factories. After the successful acquisition of Wigs in 1999, their product brands included eaton, vickers, char-lynn, aeroquip and hydro-line, so eaton's products include power sources, control elements, actuators, connectors, connectors, pollution control and a full set of hydraulic systems. Their company's products are widely recognized in the current hydraulic market, in the product development, technical strength, product quality and other aspects are doing very good. In the eaton orbital motors, the Xcel series of motors are mainly promoted at this stage, and the Eaton Xcel Gerotor / Geroler hydraulic motor provides three-zone protection at the dual-zone price, with lower energy consumption and lower working temperature. They promise that such a design can suppress pressure peaks in both directions, help extend axial seal life and improve overall reliability. It is very popular to see or experience eaton fluid power in many areas.



But Eaton's products are really expensive, so it's not a good choice for people who even want quality and need a better price. Hanjiu Technology is worth the choice, and they don't be as famous as Eaton, but hanjiu orbital motors is superb in terms of quality and innovation. They advertise themselves as innovative companies, but in fact, their products refuse to be homogenized with other motors in the market. They will irregularly update their products according to the use needs of research, turning some traditional hydraulic motors into products that more fit the actual needs. In addition to the hydraulic motor, in the development and production of valves is also unique. Long service life and price concessions are a common feature of their products.
