Product Details:
Payment & Shipping Terms:
|
| Product Name: | Swing Motor | Displacement: | 250CC |
|---|---|---|---|
| Shaft: | Spline Shaft | Control Valve: | With Relief Valve |
| Tempreture: | Normal-30℃-90℃ | Warranty: | 12months |
| High Light: | excavator hydraulic swing motor,250cc hydraulic swing motor,mini excavators swing hydraulic motor |
||

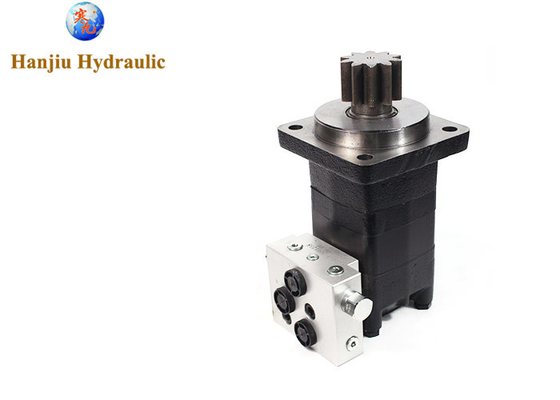

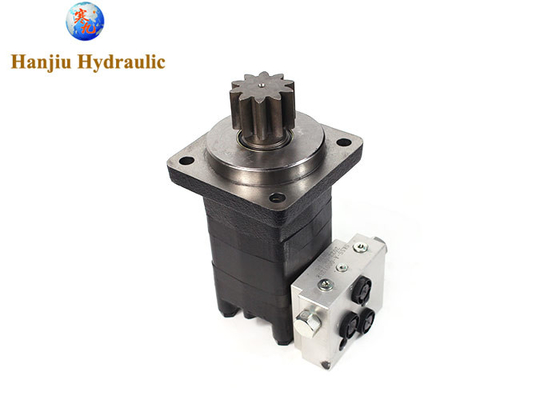

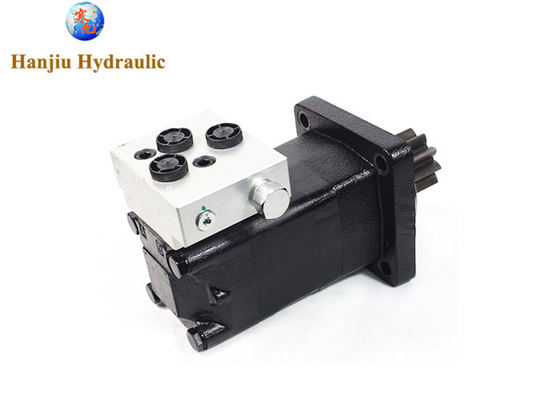

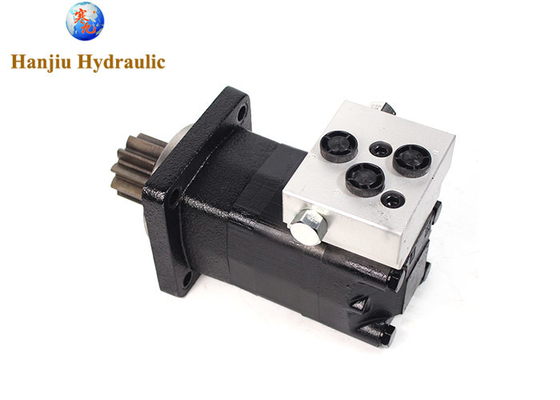

swing motor excavator parts hydraulic drive motor for miniexcavators
Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
TGenuine & OEM quality Swing Motor can fit Airman, Atlas Copco, Bobcat, , Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, , Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, , XCMG, XGMA, Yanmar, Yuchai, Zoomlion Excavators.
* swing motors for more than 1000 construction machines
* fast delivery
* professional advice
* absolute low prices
* high quality
The OM hydraulic motor is a high torque low speed hydraulic motor with high efficiency and long life. It has the advantages of wide speed range, high starting torque, stable, compact and lightweight high-speed rotation. It can be directly connected to the working machine and adapt to various low-speed heavy-load facilities.
Our orbital hydraulic motors are 100% compatible with disc valves.
It runs smoothly in the speed range, has a high starting torque, and maintains a constant working torque in a wide speed range.
Its body adopts a sturdy and compact design, and it is very good in appearance and performance.
It achieves high return oil pressure (high pressure shaft seal) without the use of a drain line.
It has long life working conditions.
It has high radial and axial load carrying capacity and is suitable for a variety of hydraulic fluids, open-loop and closed-loop hydraulic systems.
