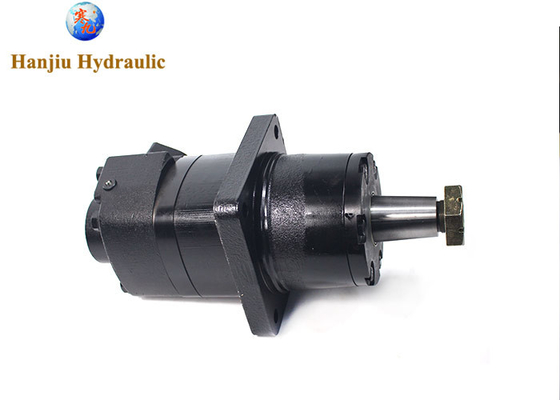

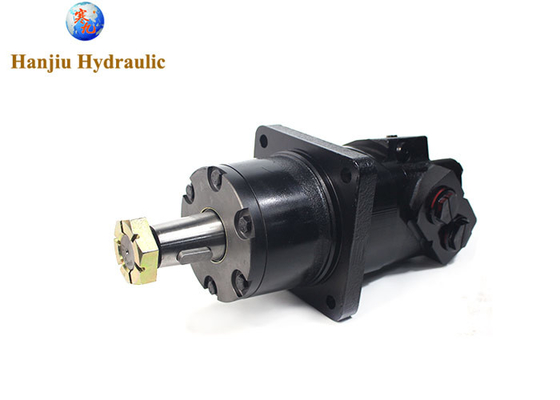

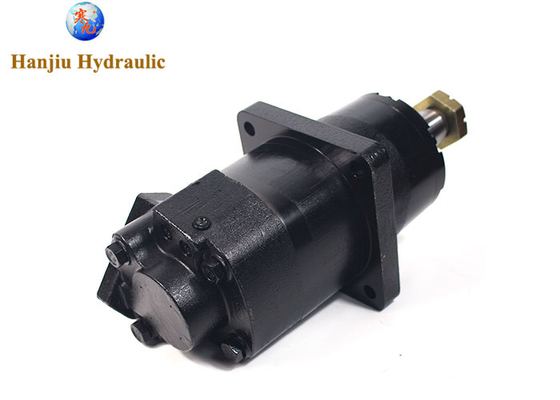

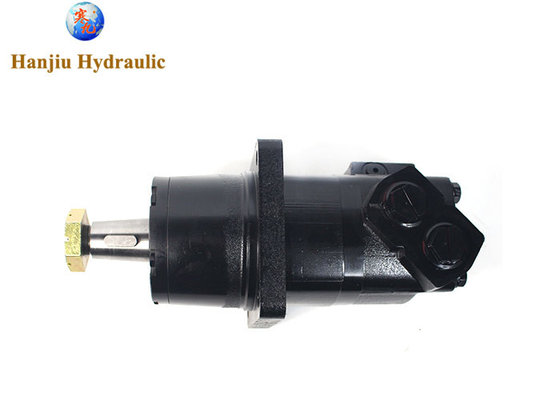

113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors

113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors
113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors

Large Image :  113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMK6
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiable
Packaging Details: 1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 300000 pieces per year
Detailed Product Description
Type: Hydraulic Low Speed High Torque Motor Manufacturer: HANJIU
Model No.: 6k Motor Size: 500ml/r
Max.torque(N.m): Cont.1160N.m/int.1625N.m Max.speed(rpm): Cont.382rpm/int.570rpm
High Light:

113-1072-006 wheel drive motor

,

char lynn 6000 wheel drive motor

,

disc valve hydraulic drive wheel motor

113-1072-006 charlynn 6000 series wheel drive motor disc Valve Hydraulic Motors



hanjiu produce the bmk6 motors,matching charlynn 6000 motor 113-1072-006



Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 500cc
Flange: wheel flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: tapered shaft
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black





Main Specification

Type

BMK6

200

BMK6

250

BMK6

315

BMK6

400

BMK6

500

BMK6

630

BMK6

800

BMK6

1000

Geometric displacement
(cm3 /rev.)
195.6 246.1 311.6 391.3 490.8 623 802.4 981.6
Weight (kg) 26.3 26.8 27.3 28 28.8 29.6 30.5 32





Part Number Displacement cm³/rev (in³/rev)
195 (11.9)
113-1071-006 245 (15.0)
113-1072-006 310 (19.0)
390 (23.9)
490 (30.0)
113-1093-006 625 (38.0)
985 (60.0)





113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 0

113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 1113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 2



Hanjiu has been working hard for nearly 15 years to provide customers with various types of hydraulic motors and speed matching with customer needs.Our products are sold well both at home and abroad. Our annual output exceeds 500,000 PCS,have been committed to creating quality products for customers, the whole transaction service excellent purchase experience, so our market has expanded far to North America, South America, Europe, Africa and other countries and regions. We attach great importance to every customer who consults with us.Our customer service staff not only have professional knowledge reserves, but also serve customers with the highest enthusiasm. Of course, the most important thing is the product. We take "zero defect and zero complaint" as the product quality goal. According to your requirements, we will provide you with the most satisfactory products. Hanjiu hydraulic motors has the characteristics of low noise, small size, strong bearing capacity, large power, high efficiency, long life and so on. Whether online or offline, you can hardly find such a great product for sale in our price range,So you can rest assured to choose our product.



113-1072-006 Char Lynn 6000 Series Wheel Drive Motor Disc Valve Hydraulic Motors 3
