Product Details:
Payment & Shipping Terms:
|
| Product: | Sugarcane Harvester Heavy Duty Motor | Type: | 104-,105-,106- |
|---|---|---|---|
| Flange: | 2bolts Flange | Shaft: | Key Shaft,spline Shaft |
| Displacement: | 200cc/315cc/400cc/500cc | Max Speed: | Cont.185/int.225rpm |
| High Light: | Sugarcane Harvester Heavy Duty Motor,2 Bolts Flange Heavy Duty Motor |
||

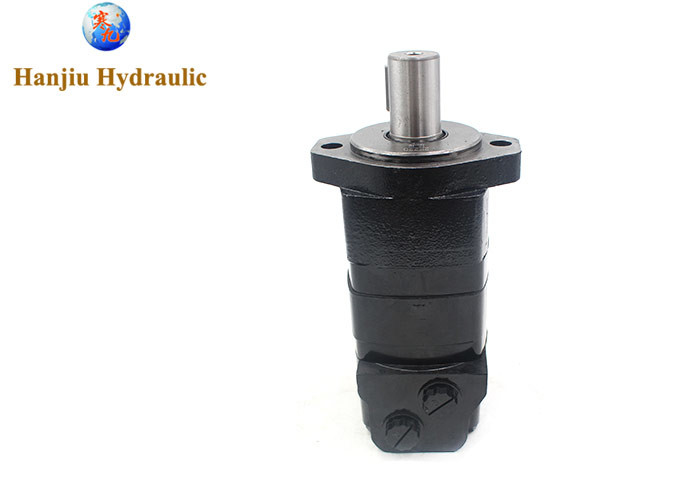

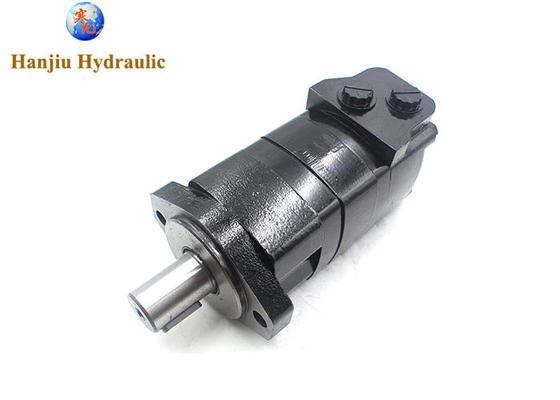

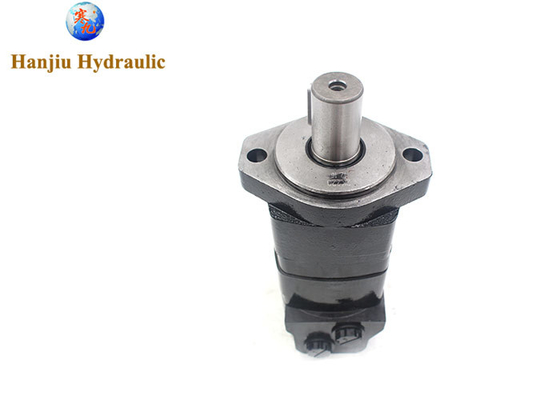

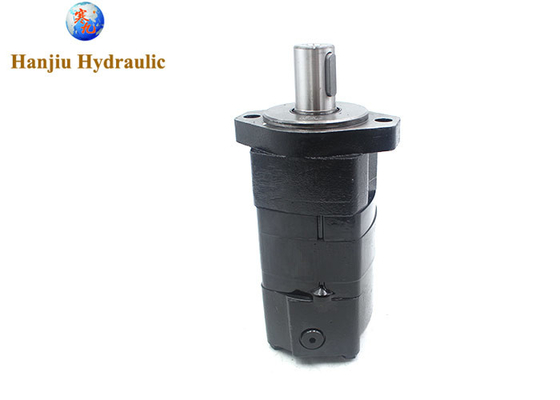

Hanjiu technology supply the BMK2 series motors, matching charlynn 2000 motors, the type 104-4385-006
are used on A8810/A9900 sugar cane harvesters, details as below:
PRODUCT SPECIFICATIONS:
SEAL OPTIONS--High Pressure Shaft Seal
GEROLER OPTIONS--Standard
IDENTIFICATION--None
PORT TYPE--.875-14 UNF-2B SAE O-Ring Ports
VALVE OPTIONS--None
SPEED SENSOR--No
RECOMMENDED SYSTEM WORKINGTEMPERATURE-34°C to 82°CVISCOSITY
RECOMMENDATION--70 SUS
MOUNTING TYPE---Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)
PRODUCT MATERIAL---Cast Iron
FLOW RATE---75 l/min
MAXIMUM SPEED---191 RPM
PAINT--Environmental Coated Black
SPECIAL ASSEMBLY INSTRUCTIONS--None
DISPLACEMENT---393.8 cm³/rev
FLOW OPTIONS---.4375-20 UNF-2B SAE O-Ring Port
OUTPUT SHAFT TYPE---Spline
PRESSURE/FLOW OPTION---None
PACKAGING--Individual Box
SHAFT OPTIONS---None
APPLICATION---Swing motor, Brush Cutters & mowers, Harvesting equipment
LOW PRESSURE RELIEF----None
Main Specifications:
| Type | BMK2 80 |
BMK2 100 |
BMK2 125 |
BMK2 160 |
BMK2 200 |
BMK2 250 |
BMK2 315 |
BMK2 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
hanjiu technology not only has orbital motor, but also other different types and series of hydraulic motors, a wide variety, fitting for different type of harvesters, like sugarcane harvesters/tomato harveters/potato harvesters/onion harvesters/coffee harvesters.... for you to interchange the original harvester heavy drive motor and repair
