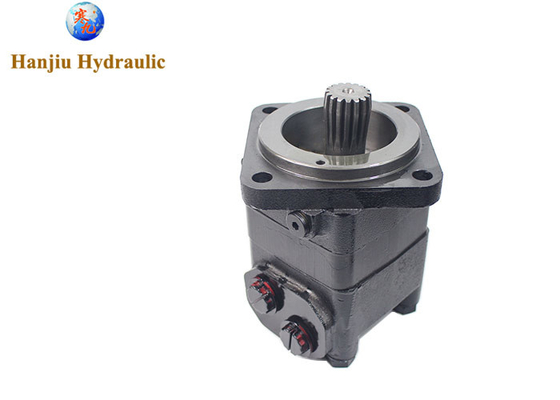

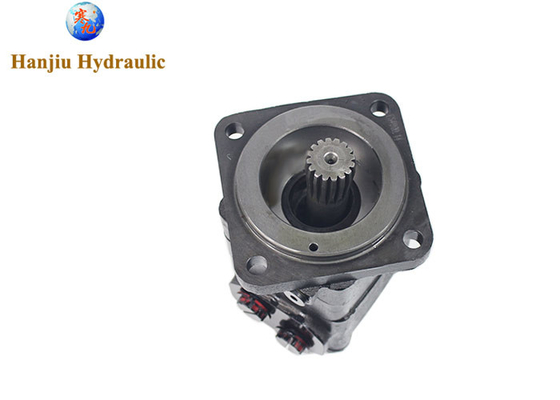

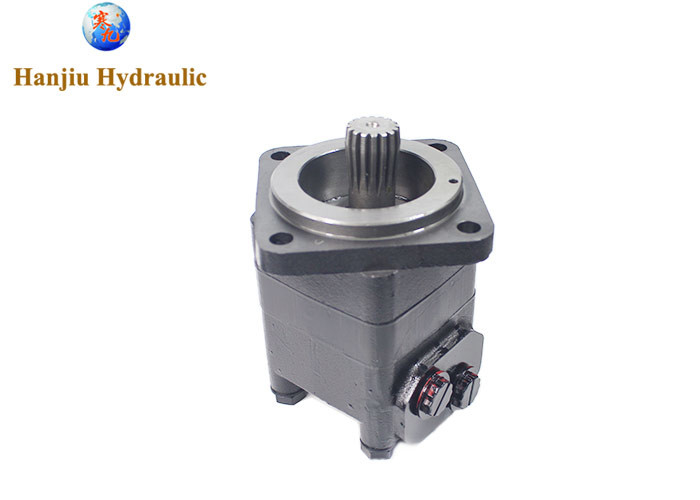

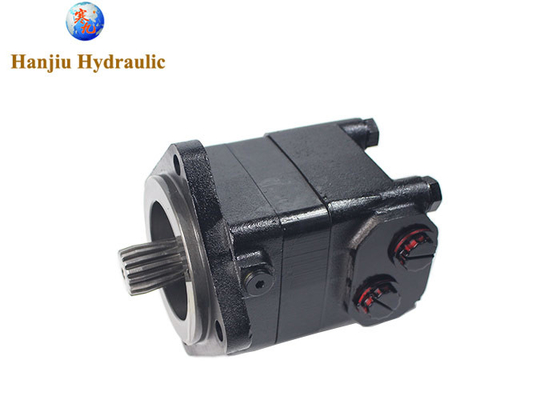

BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft

BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft
BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft

Large Image :  BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMTS
Payment & Shipping Terms:
Minimum Order Quantity: 20 Sets
Price: Negotiable
Packaging Details: Carton Packing, ans finally with pallet or wooden box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 Sets per year
Detailed Product Description
Type: Hydraulic Bearingless Motor Model: BMTS/OMTS/MTS
Displacement: 500cc Warranty Time: 12 Months
Cetificate: CE SPEED: Cont.240rpm/int.285rpm
High Light:

500cc Bearingless Motor

,

Hydraulic Bearingless Motor

,

BMTS Bearingless Motor



BMTS / OMTS hydraulic bearingless motor,φ147mm square flange, 16 teeth spline shaft ​





BMTS/OMTS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.






Product details



product type BMTS
displacement 500c
flange 4-φ14 circle-flange φ147.6, pilotφ127X8
outshaft short shaft 16-DP12/24
oil ports G3/4,1-1/16-12UNF



Main Specifications:



Type

BMTS

160

BMTS

200

BMTS

230

BMTS

250

BMTS

315

BMTS

400

BMTS

500

BMTS

630

BMTS

800

Displacement

(cm3/rev.)

161.1 201.4 232.5 251.8

326.3

410.9 523.6 629.1 801.8
Max.speed (rpm) cont.

625

325 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185

Max. Torque

(N•m)

con. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
Max.output (kW) con. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8

Max. pressure

drop (MPa)

con. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max.flow (L/min) con. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150

Max. Inlet

pressure(MPa)

con. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
Net Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25



BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft 0



BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft 1



BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft 2BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft 3BMTS / OMTS Hydraulic Bearingless Motor 16 Teeth Spline Shaft 4

Application areas:


1) Conveyors


2) Metal working machine


3) Agriculture machines


4) Road building machines


5) Mining machinery


6) Food industries


7) Special vehicles


8) Plastic and rubber machinery



Hanjiu hydraulic profssion supply all series hydraulic motor like



OMM/OMP/OK/OMR/OMH/DS/DH/OMS/OMT/OMV/BRAKE MOTOR



Hanjiu sells the above motors, there are different types and different series, you can definitely choose the product you like. We are very strict about the quality control of hydraulic motors, so we have set up a special R & D department to ensure product quality. Hanjiu's products not only have extremely high quality, but also have a certain competitive price, which is a super cost-effective product. With high quality and low price, Hanjiu products are sold to more than 30 countries around the world. After you purchase Hanjiu company's hydraulic motor, you can contact us if you have any problems within one year, and we have special after-sales personnel to provide you with technical support to answer your questions.
