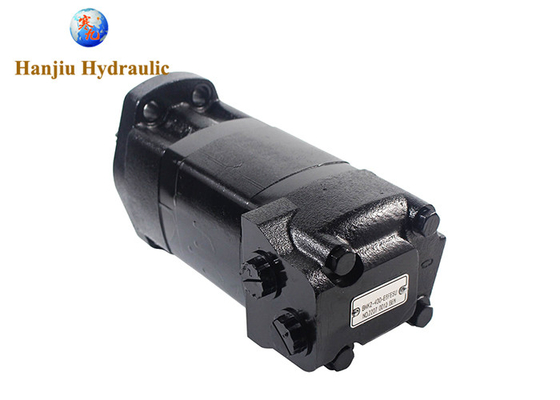

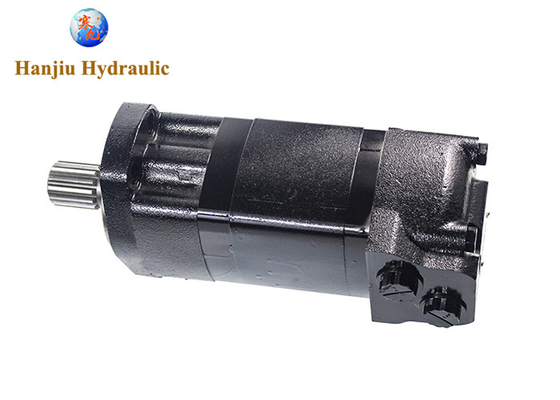

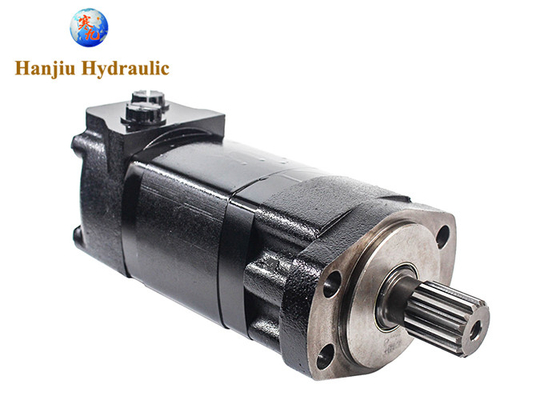

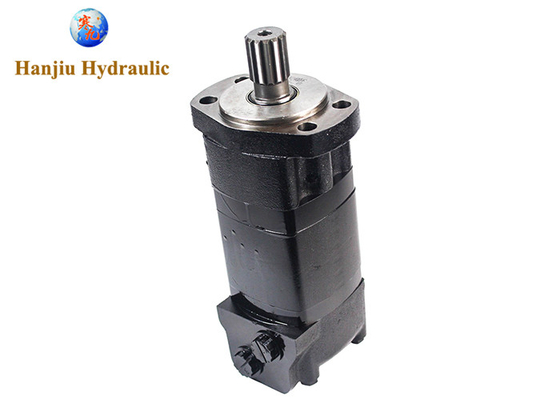

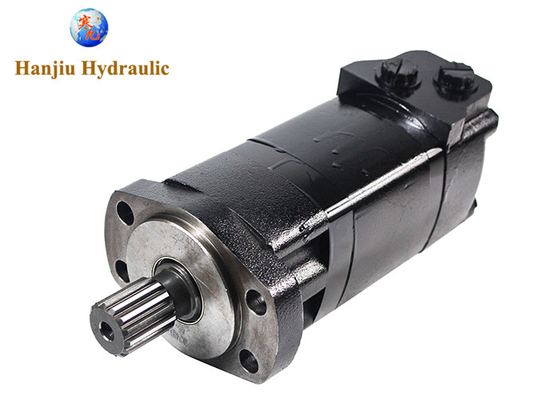

4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24

4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24
4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24

Large Image :  4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMK2-400-E6-FE-SU
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: 36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Delivery Time: 20 - 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 10000 pieces per months
Detailed Product Description
Type: Hydraulic Drive Motor Manufacturer: HANJIU
Model No.: BMK2-400-E6-FE-SU Size: 400 Ml/r
Replace: Char-lynn 2000 Series Flange: 4-hole Flange
Shaft: 31.75 Spline Key Oil Port: 7/8-14 UNF
Drain : 7/16-20 UNF Application: Any Place Need Hydraulic Drive
High Light:

Hydraulic Drive Motor 400ml/r

,

3000PSI Hydraulic Drive Motor

,

4 Bolt Rhomb Flange Hydraulic Motor



2000 Series, 4 Bolt Rhomb Flange, 31.75mm splined 14-DP12/24, 7/8-14 UNT O-RING, 3000 PSI





Quick review:

1,  model number BMK2-400-E6-FE-SU
2,  displacement 400 ml/r
3,  flange 4 - hole standard mounting
4,  shaft 31.75 mm straight shaft, splined 14-DP12/24
5, oil port 7/8-14 UNF
6, drain 7/16-20 UNF
7, rotation Standard
8, paint Black
9, replace Char-lynn 2K





Specifications:


Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)
65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.














4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 0





4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 1








Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners





About Hanjiu:



Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.
We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

Send your request to get our latest quote.





4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 2





4 Bolt Rhomb Flange Hydraulic Drive Motor 31.75mm Splined 14-DP12/24 3
