Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Drive Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model No.: | 113-1163-006 | Size: | 500 Ml/r |
| Replace: | Char-lynn 6000 Series | Flange: | 4-hole Wheel Flange |
| Shaft: | 45mm Taper Shaft | Oil Port: | 1-5/16-12 UN |
| Drain : | 7/16-20 UNF | Application: | Any Place Need Hydraulic Drive |
| High Light: | 113-1163-006 Hydraulic Motor,Hydraulic Wheel Motor 45mm 500cc,Taper Shaft Hydraulic Wheel Motor |
||

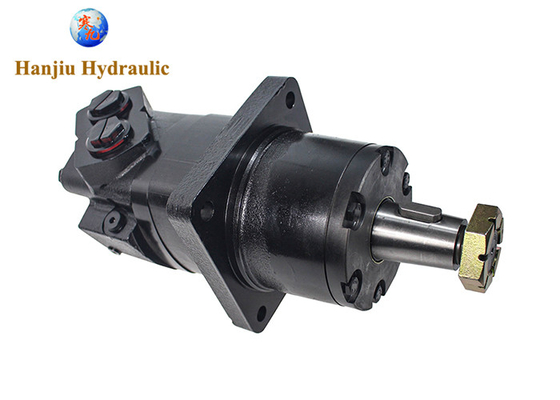

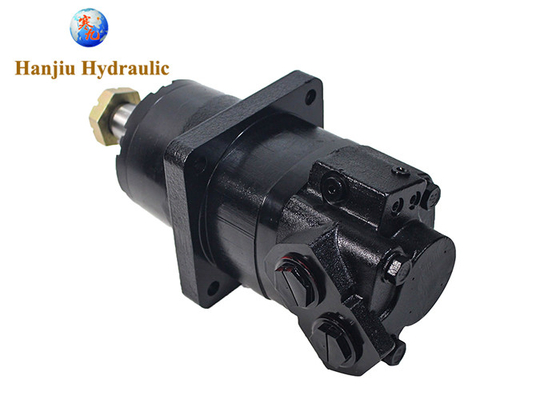

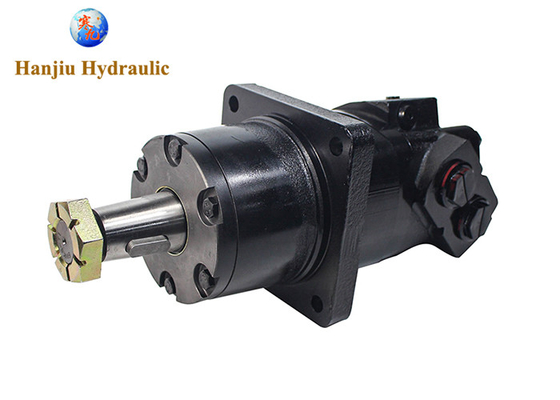

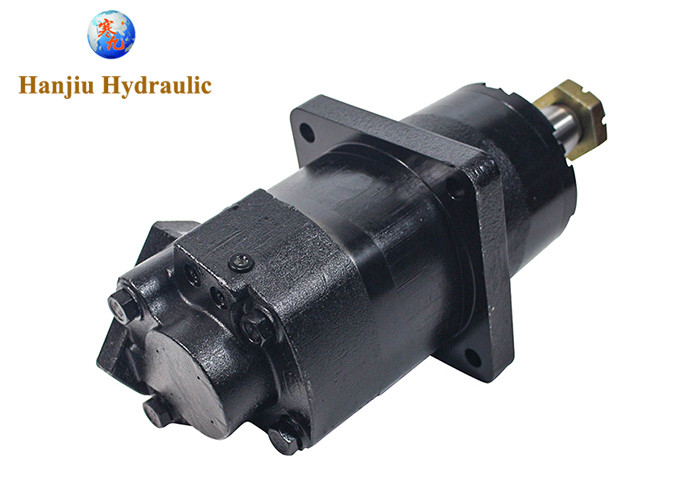

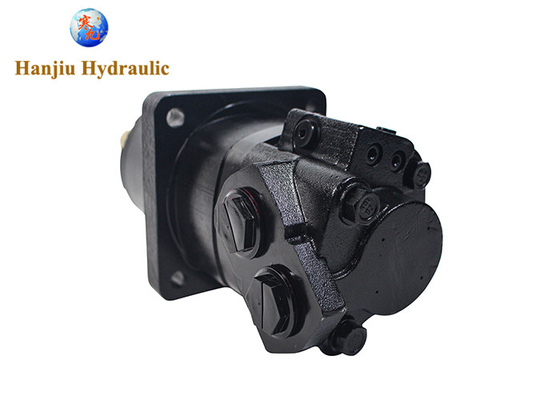

113-1163-006 6000 Series Hydraulic Wheel Motor, 45mm 500cc, taper shaft
Quick review:
| 1, | model number | 113-1163-006 |
| 2, | displacement | 500 ml/r |
| 3, | flange | 4 - hole wheel mounting |
| 4, | shaft | 45 mm shaft, taper 1:8 |
| 5, | oil port | 1-5/16-12 UN |
| 6, | drain | 7/16-20 UNF |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Char-lynn 6K |
HANJIU Hydraulics deliver 6000 SERIES orbit motors for replacement.A lot of builds from the US have special engine from Charlynn mounted. We are able to deliver a large number of compatible engines on a short notice.
HANJIU BMK6 = Char-lynn 6000 series
Specifications:
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
