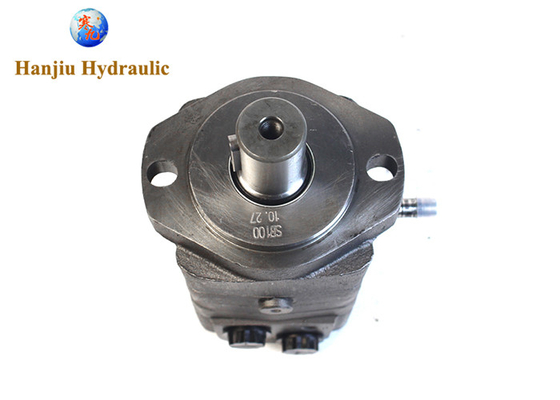

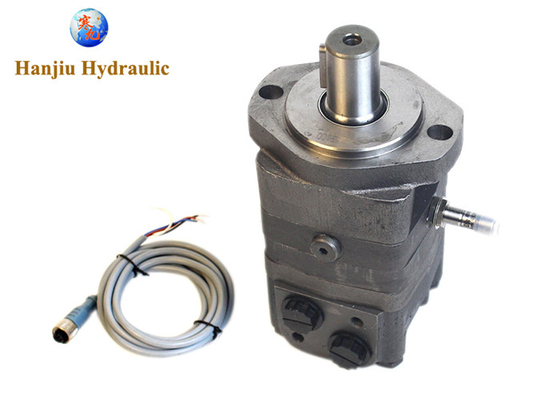

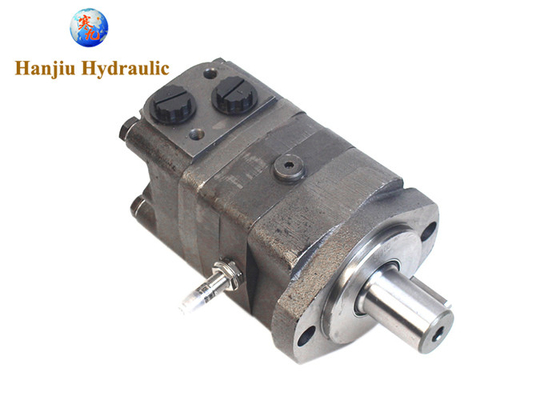

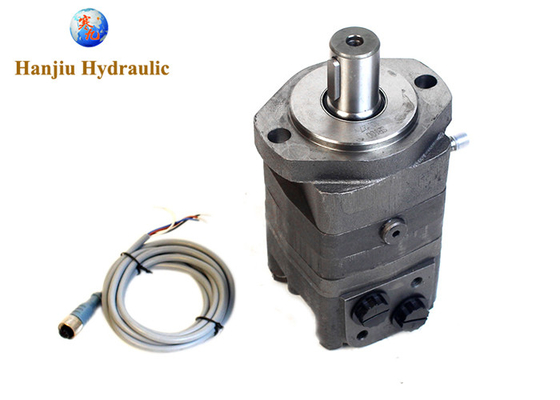

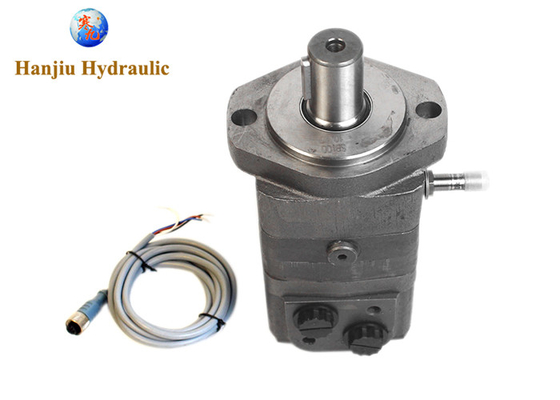

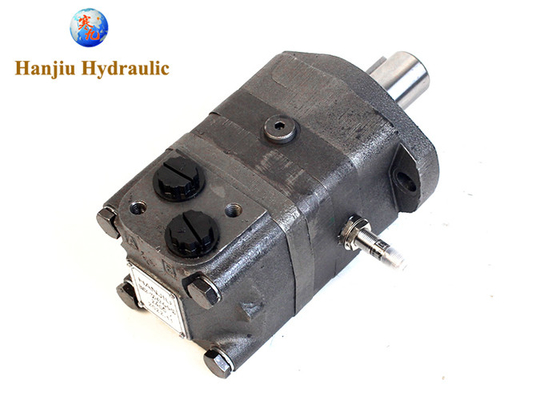

| Type: | Hydraulic Drive Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model No.: | BMSY-100-E2-G-S-SD | Size: | 100 Ml/r |
| Replace: | Danfoss OMS Series | Flange: | 2-hole Flange |
| Shaft: | 31.75 Mm Cylindrical Key | Oil Port: | 7/8-14 UNF |
| Drain : | 7/16-20 UNF | Application: | Any Place Need Hydraulic Drive |
| High Light: | 100Ml/R Hydraulic Drive Motor,31.75mm Cylindrical Shaft Hydraulic Motor,2 Bolt A Flange Hydraulic Motor |
||
OMS series, 2 Bolt A Flange, 31.75mm cylindrical shaft, 7/8-14 UNT O-RING, 3000 PSI
Quick review:
| 1, | model number | BMSY-100-E2-G-S-SD |
| 2, | displacement | 100 ml/r |
| 3, | flange | 2 - hole standard mounting |
| 4, | shaft | 31.75 mm straight shaft |
| 5, | oil port | 7/8-14 UNF |
| 6, | drain | 7/16-20 UNF |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Danfoss OMS |
HANJIU Hydraulics deliver OMS SERIES orbit motors for replacement. A lot of builds from the EUROPE have special engine from Danfoss OMS mounted. We are able to deliver a large number of compatible engines on a short notice.
HANJIU BMSY-100-E2-G-S-SD = Danfoss 151F3021
Specifications:
| Type | BMS BMSE 80 |
BMS BMSE 100 |
BMS BMSE 125 |
BMS BMSE 160 |
BMS BMSE 200 |
BMS BMSE 250 |
BMS BMSE 315 |
BMS BMSE 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
