Product Details:
Payment & Shipping Terms:
|

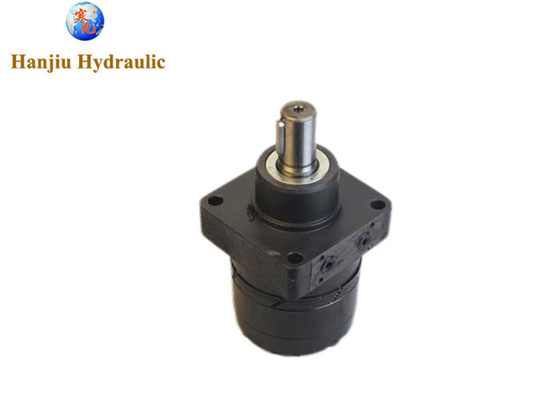

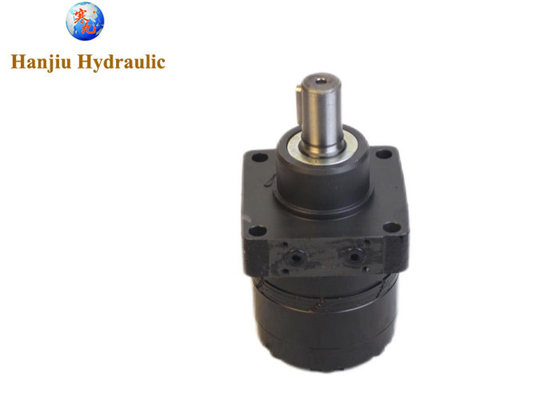

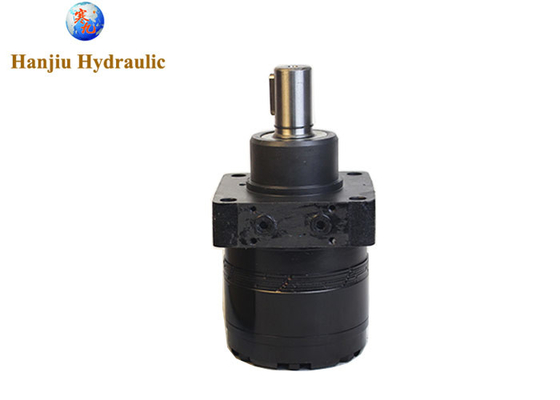

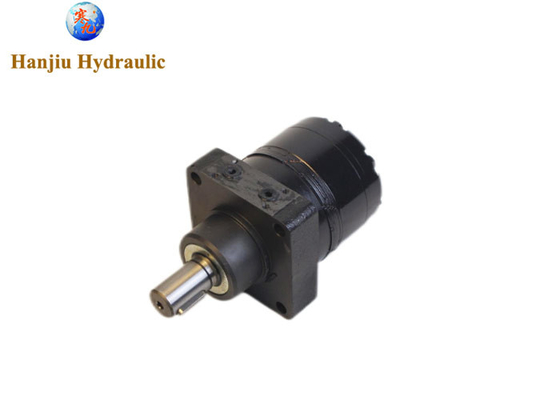

| Item: | Torqmotor,lsht Motor | OEM #: | TG0475 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 475 Ml/r |
| Mounting Flange: | Wheel Flange Manifold Ports | Shaft Type: | 32mm Key Shaft |
| High Light: | LSHT Motor TG0475 Series,BMER-2-475 LSHT Motor,BMER-2-475 High Torque Hydraulic Motor |
||
HANJIU supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function. this type of motors are widely used on lown mower machines, tractor mower machines, mathing the brand Exmark/Toro/Scag/Hustler... Details specifications Reverse Standard Specificaion TB Hanjiu technology is the leading hydraulic orbit motors manufacturer from China, we have experienced engineers who are engaged in this field on more than 20years, and knowing well of Danfoss/M+S/Charlynn/Parker motor...we have our own design and tech department, Hanjiu has a lot of advanced equipments,so We can continuously innovate, improve, expand product range and increase production capacity. we are not supply the service to hydraulic products distributors, fluid power company, but also supplying for machines manufacturer.our products can be totally fitting your machines, the better price can be lower your costs and bring your products more competitive.we hope to build a long business relationship to solve your problems and make you become stronger. orbital motor orbital motor orbital motor catalog steering orbital motors manufacturers hydraulic orbital valve orbital motors orbital motors hydraulic motor hydraulic motors for sale White hydraulic motors distributors White hydraulic motor company White wheel motor rebuild kit 601220 white wheel motorLSHT Torqmotor TG0475 Series Manifold Wheel Flange φ32mm key shaft Parker motor
Series:
TG
Shaft:
φ32mm key shaft,
Rotation:
Displacement (cm3/rev):
0475
Mounting:
Wheel, Standard
Geometric Displacement:
475cm3/rev (29.1 in3/rev)
Maximum Speed:
237 rev/min
Maximum Oil Flow (continuous / intermittent):
76 lpm (20 gpm) / 114 lpm (30 gpm)
Max. Differential Pressure (continuous / intermittent):
138 bar (2000 PSID) / 207 bar (3000 PSID)
Maximum Supply Pressure:
300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent:
887 Nm (7853 lb-in) / 1372Nm (12145 lb-in)
Maximum Performance:
28 KW (38HP)
Minimum Starting Torque - Continuous / Intermittent:
740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)
Type
BMER
BMER
BMER
BMER
BMER
BMER
BMER
BMER
BMER
BMER
BMER
125
160
200
230
250
300
350
375
475
540
750
Geometric displacement (cm3/rev.)
118
156
196
228
257
296
345
371
462
540
745
Max. speed (rpm)
cont.
360
375
330
290
290
250
220
200
160
140
100
int.
490
470
425
365
350
315
270
240
195
170
120
Max. torque (N•m)
cont.
325
450
530
625
700
810
905
990
1085
980
1050
int.
380
525
600
710
790
930
1035
1140
1180
1240
1180
peak
450
590
750
870
980
1120
1285
1360
1260
1380
1370
Max. output (kW)
cont.
12.0
15.0
15.5
16.0
17.5
18.0
17.5
16.5
14.5
11.5
8.0
int.
14.0
17.5
18.0
19.0
20.0
21.0
20.0
19.0
16.5
15.0
10.0
Max. pressure drop (MPa)
cont.
20.5
20.5
20.5
20.5
20.5
20.5
20.5
20.5
17.5
14
10.5
int.
24
24
24
24
24
24
24
24
19
17.5
12
peak
27.6
27.6
27.6
27.6
27.6
27.6
27.6
27.6
20.5
20.5
14
Max. flow (L/min)
cont.
45
60
70
70
75
80
80
75
75
75
75
int.
60
75
85
85
90
95
95
90
90
90
90
PARKER Hydraulic Motors
TE
TF
TG
TJ
