Product Details:
Payment & Shipping Terms:
|
| Item: | LSHT Motor | OEM #: | TB0065US110AAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 65 Ml/r |
| Mounting Flange: | 4 Bolt Wheel Mount | Shaft Type: | 1'' SAE 6B |
| High Light: | TB0065US110AAAA High Torque Hydraulic Motor,High Torque Hydraulic Motor 65ml/R,lsht hydraulic motor 65ml/R |
||

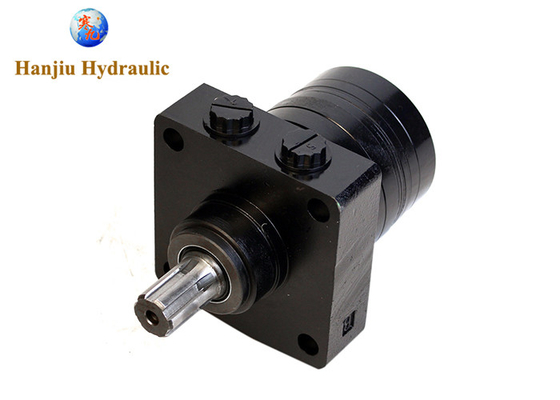

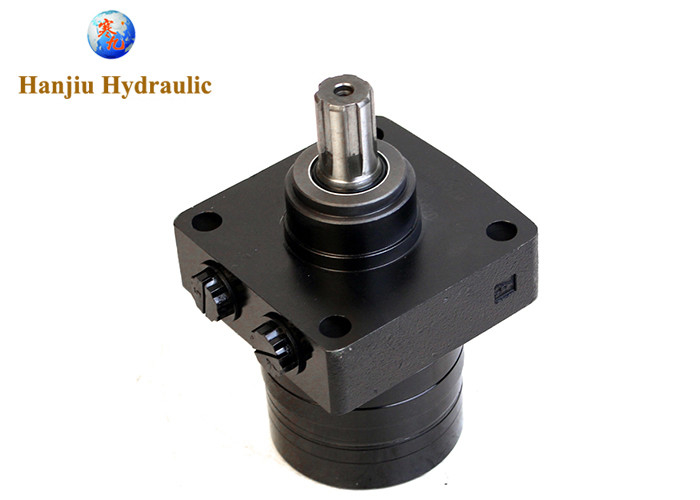

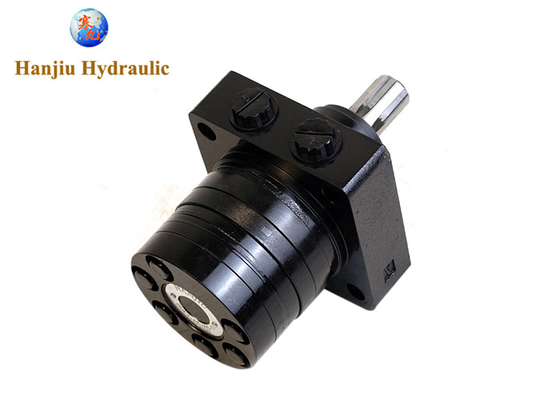

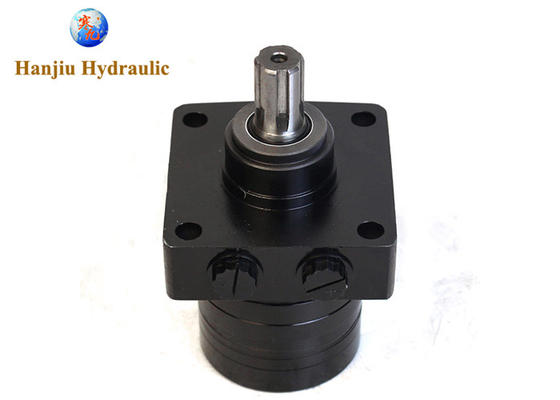

TB0065US110AAAA, Torque Motor compatible, Wheel mounting, 1'' SAE 6B Quick review: This is a Parker low speed, high torque compatibel hydraulic motor. TB0065US110AAAA , 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous, torque 3026 in-lb. intermittent. Maximum speed 370 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with SAE 6B shaft. 7/8-14" ORB ports. 4 Bolt wheel mounting flange. 1 year warranty. Here is main specifications: More PARKER Low speed high torque compatible motors availalbe like : TB From China, Hanjiu produce variety of low speed high toqrue hydraulic motors to suit range of brands & applications, in more competitive way. We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion. Contact us to talk work together.
Specifications
Shaft:
1" SAE 6B
Rotation:
Standard
Displacement (cm3/rev):
65
Mounting:
4 Bolt Wheel mount
Ports:
7/8-14 SAE
Geometric Displacement:
65 cm3/rev (4.0 in3/rev)
Maximum Speed:
511 rev/min
Maximum Torque - Continuous / Intermittent:
107 Nm (946 lb in) / 145 Nm (1284 lb in)
TC
TJ
TE
TF
TG
TK
