530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA
530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

Large Image :  530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: 5300375T3827AAAAA
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Contact the seller to get a quote
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Orbital Motor OEM #: BMER-3
Manufacturer: Hanjiu Displacement: 375 Ml/r
Mounting Flange: Wheel Mounting Flange Shaft Type: 35mm Key Shaft
High Light:

high torque motor 5300375T3827AAAAA

,

White Drive Motor 5300375T3827AAAAA

,

530/531 Series White Drive Motor

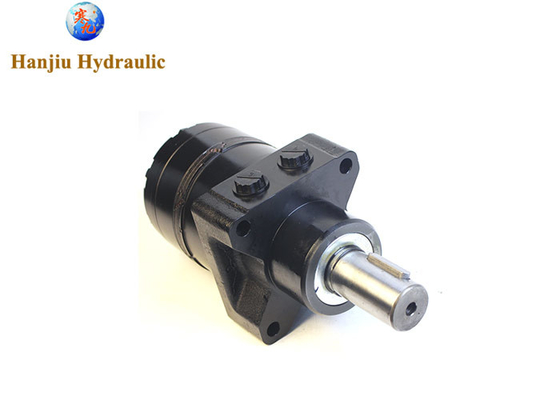

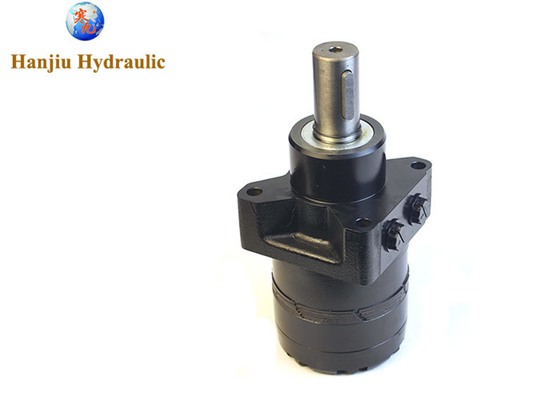

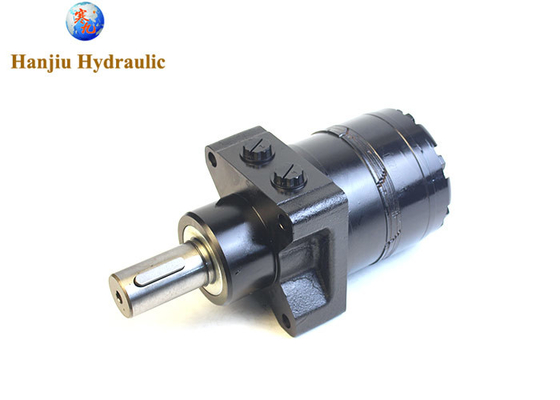

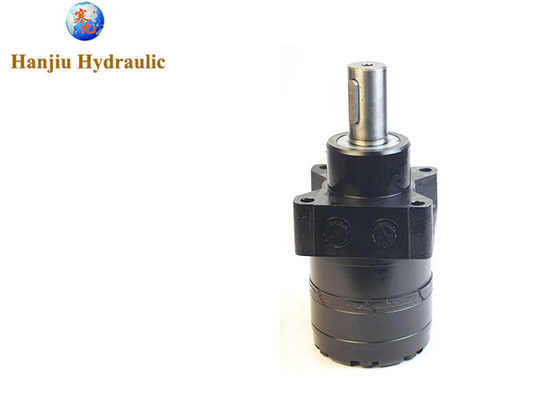

White 530 Series Drive Motor Danfoss RE high torque orbital motors wheel mount 5300375T3827AAAAA



Quick review:

This is  WHITE /DANFOSS compatible motor with same form, fit and function

Apply to lown mower and tractor mowers,loader mower



Here is main specifications:

Series:  white 530/531, Danfoss RE
Shaft: 35mm key shaft
Rotation:

Standard rotation

Displacement (cm3/rev): 0375
Mounting: Wheel mounting
Geometric Displacement: 375cm3/rev (22.8 in3/rev)
Maximum Oil Flow (continuous / intermittent): 75 lpm (20 gpm) / 90 lpm (24 gpm)
Max. Differential Pressure (continuous / intermittent): 205 bar (3000 PSI) / 240 bar (3500 PSI)
Maximum Supply Pressure: 276 bar (4000 PSI)
Maximum Torque - Continuous / Intermittent: 990 Nm (8900lb-in) / 1140Nm (10250 lb-in)
Maximum Output(continuous / intermittent) 16.5 KW /19kw



Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90




530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 0530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 1



530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 2







530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 3





More PARKER Low speed high torque compatible motors availalbe like :

TB
TC
TJ
TE
TF
TG
TK



530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA 4








About Hanjiu:

Hanjiu company is a professional manufacturer of industrial hydraulic components, we have focused on the development and production of a full range of hydraulic components, rail motors, steering tracks, directional control valves. Hydraulic motor is one of our main products, Hanjiu products have advanced Gerolor gear set manufacturing device, using low pressure start, shaft seal can withstand back high pressure, motor can be used in parallel or series. We adopt a special design of the power distribution system that is unprecedented in the market, which can meet the low noise requirements of the unit. It also features a compact size and easy installation. In terms of price, we also have an absolute advantage. In addition, the hydraulic motors we produce are all-round and high-quality, not only with high work efficiency, but also with perfect service. Whether it is before or after the sale of products, Hanjiu is always 100% careful and patient with customers. All Hanjiu products come with a one-year warranty after they are sold. During this period, Han Jiu will be responsible for any damage caused by the future non-use of the product and solve it for you.



We Hanjiu company always maintain our quality standards to provide customers with product and service innovation. If you are interested in our products, please go to the official website for more detailed consultation and understanding.
