Product Details:
Payment & Shipping Terms:
|
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMER-4 |
|---|---|---|---|
| Displacement: | 375cc | Flange: | 4 Bolt Wheel Mount |
| Shaft: | 31.75mm Tapered Shaft | Port: | SAE Ports |
| Rotation: | Reverse Timed | Color: | Black |
| High Light: | low speed all wheel drive motors,high torque all wheel drive motors,LSHT four wheel motor |
||

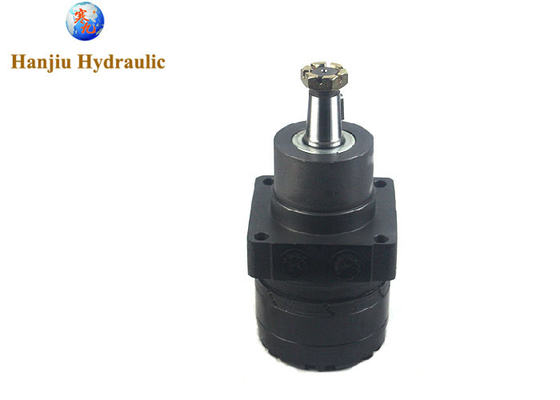

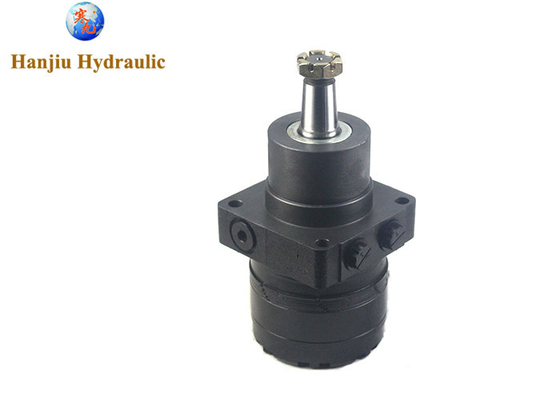

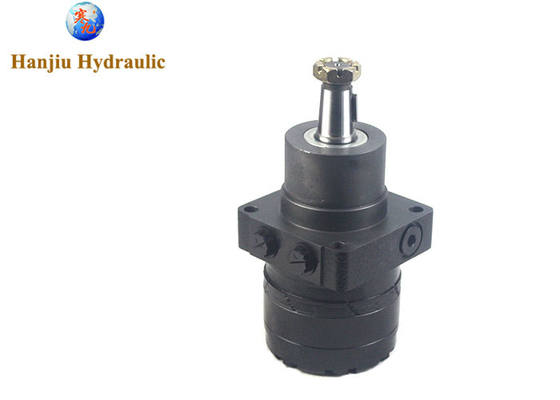

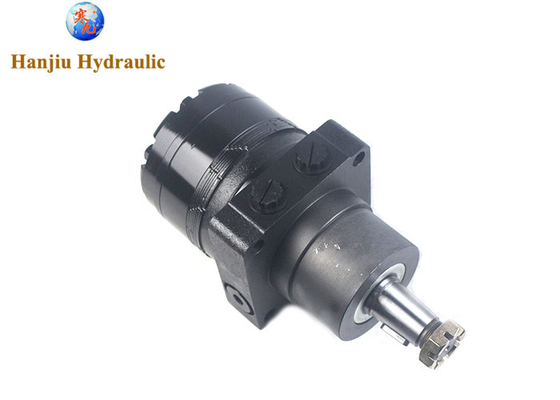

hydraulic low speed high torque motor 22.88cu BMER-4-375-WS-T4 wheel drive motor 31.75mm cone-shaft
product details:
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | BMER-4-375-WS-T4-R-FYD |
| Displacement | 375cc |
| Flange | 4 bolt wheel |
| Shaft | 31.75mm cone-shaft |
| Port | SAE ports |
| Rotation | unti-clockwise |
| Color | Black |
| Brand | Hanjiu |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
The BMER-2-3-4 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
Why choose HANJIU Hydraulic motors?
In addition to cost-effectiveness, Hanjiu technology is also known for its innovation and adaptability. we are constantly seeking new ways to improve our products, whether through the use of advanced materials, enhanced designs, or improved manufacturing processes. This has enabled us to stay ahead of the competition and maintain our position as leaders in the industry.
Another advantage of hanjiu orbital motors is our ability to provide customized solutions to meet the specific needs of our customers. Whether it's a unique design or a specialized application, Hanjiu technology is able to work closely with their customers to develop solutions that are tailored to their individual requirements. This level of flexibility and customer service has helped to solidify HANJIU's position as a trusted supplier of hydraulic components.
