Product Details:
Payment & Shipping Terms:
|
| Mounting Type: | 4×Ø13.5 Rhomb×flange | Type: | Low Speed High Torque Hydraulic Motor |
|---|---|---|---|
| Control Type: | Hydraulic | Weight: | 12.3 Kg |
| Warranty: | 1 Year | Noise Level: | ≤80dB |
| Rated Torque: | 850-1090Nm | Material: | Cast Iron/Alloy |
| High Light: | omh 400cc low rpm hydraulic motors,1090nm low rpm hydraulic motors,32mm shaft low rpm hydraulic motors |
||

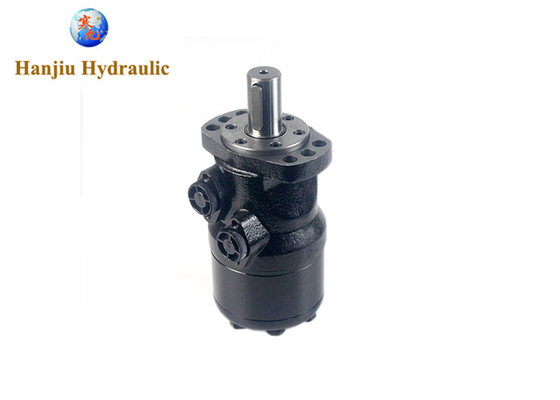

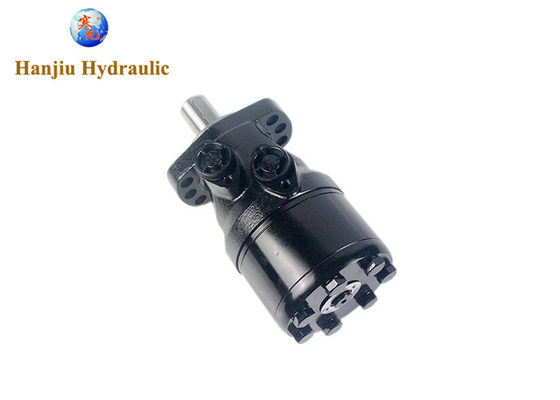

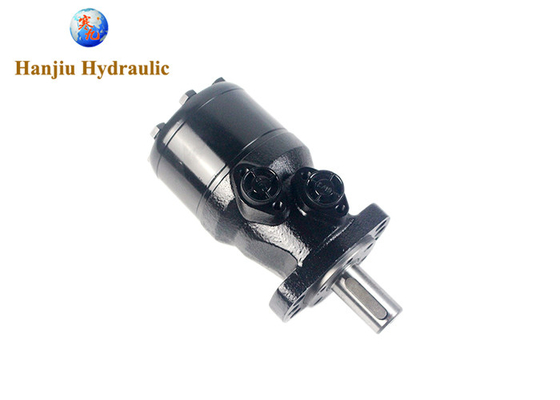

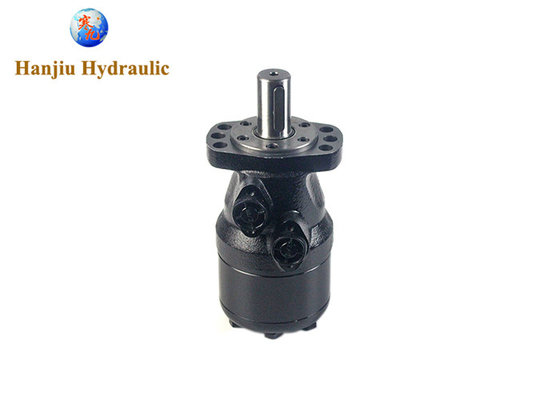

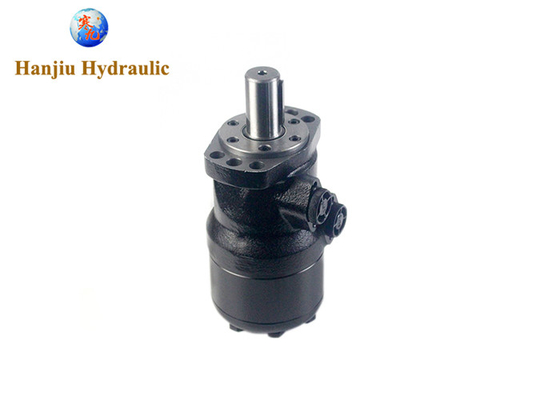

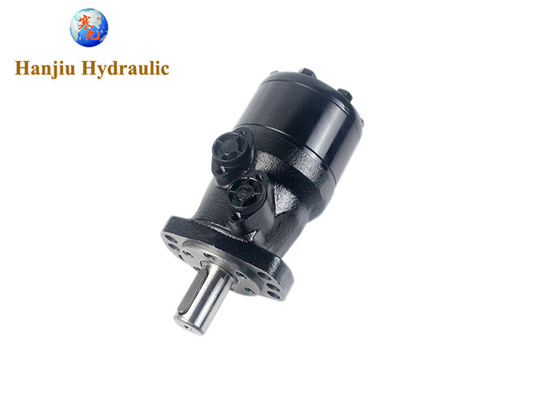

OMH 400cc Low Speed High Torque Hydraulic Motor is designed to provide superior performance and reliability in a wide range of applications. With its noise level of ≤80 dB, vibration level of ≤0.2mm/s, and weight ranging from 12.3 kg, this motor is an ideal choice for operators who want a powerful and durable motor to power their equipment. It is also able to generate a rated torque of 850-1090Nm, providing a reliable source of power for many industrial applications. OMH Low Speed High Torque Motor is an ideal choice for operators who are looking for a reliable and efficient motor for their operations.
| Parameter | Specification |
|---|---|
| Noise Level | ≤ 80 dB |
| Mounting Type | 4×Ø13.5 Rhomb×flange |
| Temperature Range | -20 °C ~ 80 °C |
| Rated Torque | 850-1090Nm |
| Control Type | Hydraulic |
| Displacement | 400 ml/r |
| Weight | 12.3 kg |
| Max Pressure | 21 MPa |
| Shaft Type | Shaft Ø32 , parallel key 10×8×45 |
| Material | Cast Iron/Alloy |
| Motor | replace Danfoss OMH |
Hanjiu BMH-400-6-B-D-B Low Speed High Torque (LSHT) hydraulic motor is CE and ISO certified, and only requires a minimum order of 100 PCS. This motor is available at a price of 115, and is packed in a Standard export package. Delivery time is only 25 - 35 days, and payment terms include 30% deposit, balance before shipping. Hanjiu's BMH-400-6-B-D-B motor is capable of supplying a maximum of 20000 pcs/month. It has a temperature range of -20℃~80℃, a maximum pressure of 21MPa, a weight range of 12.3 kg, and a max flow of 75 - 90L/min. This motor is available in three different shaft types, including Spline, Taper, and straight.
Hanjiu's BMH-400-6-B-D-B LSHT motor is perfect for applications where Danfoss OMH motors are used. This motor is ideal for a variety of applications, including industrial automation, construction machinery, machine tools, agricultural machinery, and other industrial machines. The low speed and high torque makes it perfect for applications that require precise, low-speed operation.
Whether you're looking for a Danfoss, Parker, or M+S LSHT motor, the BMH-400-6-B-D-B is the perfect choice. Its low speed and high torque make it perfect for applications that require precise, low-speed operation. With its CE and ISO certification, competitive price, and quick delivery time, it is sure to meet your needs.
Hanjiu brand BMH-400-6-B-D-B Low Speed High Torque Hydraulic Motor is perfect for industrial and agricultural applications, providing the best performance and reliability. The motor is made from superior quality cast iron and alloy, and its weight 12.3 kg. Its rated speed is 183-220 rpm, and its maximum pressure is 21MPa.
Technical Support and Service for Low Speed High Torque Hydraulic Motor
Our company provides technical support and service for low speed high torque hydraulic motor. Our experienced team of engineers can help you to troubleshoot any issues with your motor, ensuring that it is running as efficiently and effectively as possible. Together with our knowledgeable customer service team, we can provide you with the support you need to keep your motor running smoothly.
We offer a comprehensive range of services for low speed high torque hydraulic motor, including:
For more information about our technical support and service for low speed high torque hydraulic motor, please contact our customer service team.
