Low Speed Gerotor / Geroler Char Lynn 119-1041-003 Motor For Port Equipment

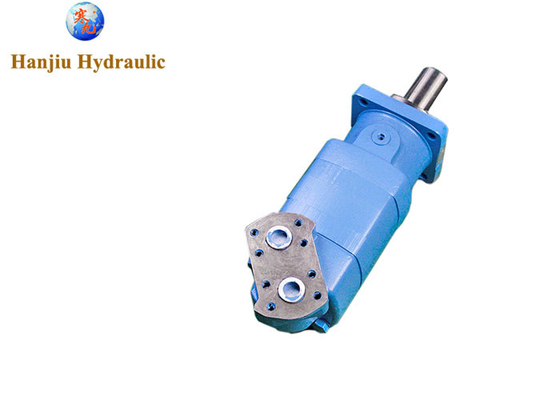

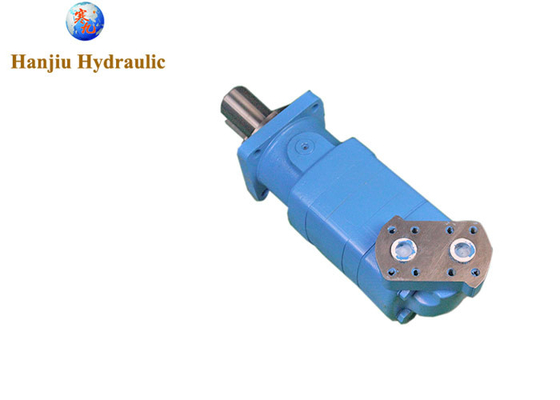

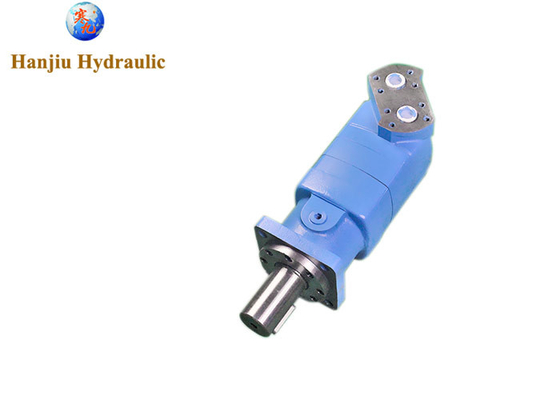

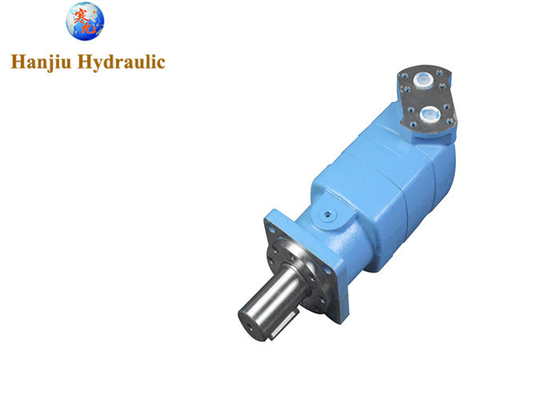

Large Image : Low Speed Gerotor / Geroler Char Lynn 119-1041-003 Motor For Port Equipment

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK10

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Disc Motor	Model No.:	119-1041-003
Max.speed(rpm):	Cont.354rpm/int.550rpm	Max Flow:	Cont.170l/min/int.265l/min
Max.torque(N.m):	Cont.1475N.m/int.1965N.m	Max Pressure Drop:	Cont.20.5Mpa/int.27.5Mpa
Highlight:	low speed char lynn motor , 119-1041-003 char lynn motor , 119-1041-003 char lynn hydraulic motor

Low-Speed Gerotor/Geroler charlynn 119-1041-003 motor for Port Equipment

Product details:

Disc Motor
Geroler
Disc Valve
7/16-14 UNC-2B Split Flange Port
29.26 Cubic Inch Displacement Per Rev

DESCRIPTION

Disc-valve, hydraulic motor built for high torque and low speed.

APPLICATIONS

Boring, Industrial, Metal Forming, Port Equipment, Saw Mill

FEATURES

Standard type
Lowest pressure drop motor in the industry
Highly-efficient Geroler motor provides energy savings

Main Specification
Type		BMK10	BMK10	BMK10	BMK10
Type		345	480	665	940
Geometric displacement		345	480	665	940
(cm3 /rev.)		345	480	665	940
Main speed(rpm)	cont.	501	354	254	179
	int.	784	552	396	279
Max torque N.M	cont.	1040	1475	2085	2700
	int.	1390	1965	2610	3440
Max pressure drop (Mpa)	cont.	20	20	20	20
	int.	27.5	27.5	27.5	27.5
Weight (kg)		26.3	26.8	27.3	28
