Home ProductsLow Speed High Torque Hydraulic Motor

BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36

China Shijiazhuang Hanjiu Technology Co.,Ltd certification
China Shijiazhuang Hanjiu Technology Co.,Ltd certification
Hello, Hanhan, my dear friend! Keep in touch with you by whatsapp.

—— Ricky Naidoo

Hello, Dear Alysa, you looks like a tall and lovely girl. Thank you for your catalogues, I will reply you soon.

—— Bhavin Gandhi

Dear Emily, you are a sweet girl. Keep in touch.

—— Roy Quemada

Dear Shirley, thank you for your patient. I will be back soon.

—— Sam

Dear Simon, sample is received. I will detect it asap.

—— JACK LORSHBOUGH

Dear Albert, good job, we can be good partner.

—— larry timmons

I'm Online Chat Now

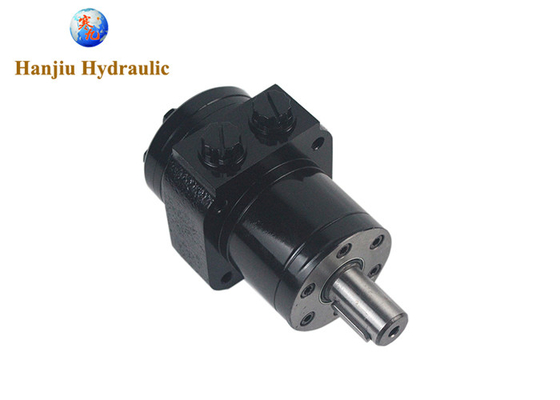

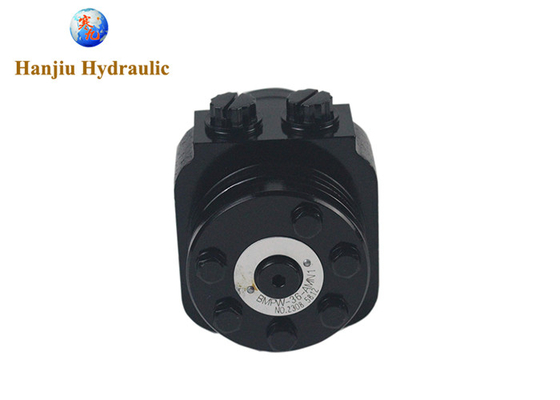

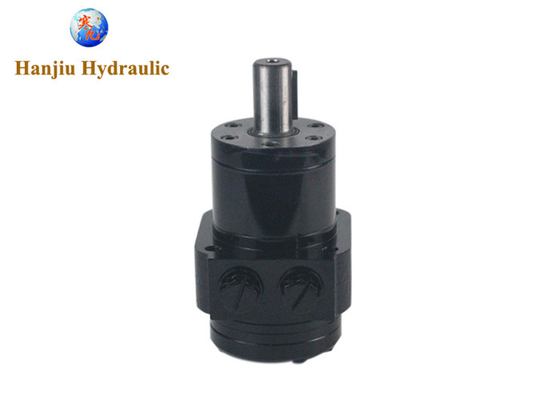

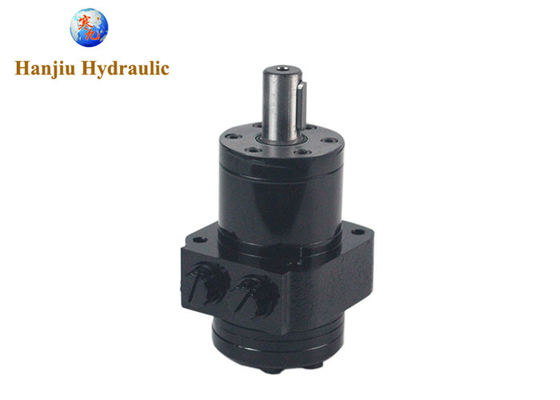

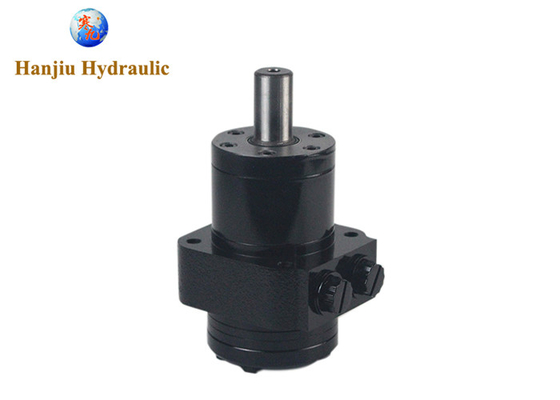

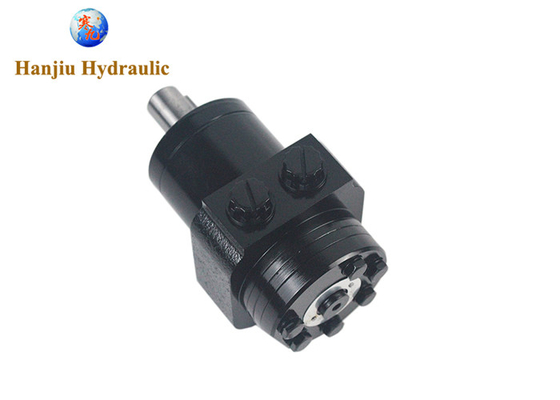

BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36

BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36
BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36

Large Image :  BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE, ISO9001
Model Number: BMPW-36-A-M-N1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 50 usd/pc
Packaging Details: Box, carton, pallet
Delivery Time: 45 - 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Detailed Product Description
Product: Hydraulic Motor Model No.: BMPW-36-A-M-N1
Displacement: 36cc Flange: Wheel Mount
Shaft: 25mm Straight Port: M22*1.5, M14*1.5
Rotation: Standard Color: Black
High Light:

36cc hydraulic motor

,

36cc wheel mount hydraulic motor

,

omp36 wheel mount hydraulic motor



BMPW-36-A-M-N1 Hydraulic Motor with needle bearing Replace Danfoss OMP36 and M+S MP36





Quick review:

Hanjiu BMPW = Danfoss OMPW, M+S MPW


When Danfoss or +S motor users come to us looking for OMPW or MPW hydraulic motors, we will recommend Hanjiu BMPW series motors as replacements.

The reason is that BMPW has a wide range of displacement, flange, oil port, shaft and hundreds of options to match the installation and application needs of different Danfoss or M+S motor users.

This BMPW motor features selectable needle bearing with big radial force
Compatible with Danfoss or M+S in terms of performance
More compact and concise in design
Better cost control from a cost perspective
This motor is suitable for customers who pursue quality without paying too much for brand premiums.
If you are an OEM, this motor can help you obtain the necessary performance while saving unnecessary expenses.
If you are a hydraulic motor importer, this motor can complement the shortcomings of your existing products, provide your customers with another choice, demonstrate your professionalism in the field of hydraulic motors, and meet the needs of your target customer groups.





Specification:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMP
BMPH
BMPW
36
BMP
BMPH
BMPW
50
BMP
BMPH
BMPW
80
BMP
BMPH
BMPW
100
BMP
BMPH
BMPW
125
BMP
BMPH
BMPW
160
BMP
BMPH
BMPW
200
BMP
BMPH
BMPW
250
BMP
BMPH
BMPW
315
BMP
BMPH
BMPW
400

BMP
BMPH
BMPW
500

Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8





Dimentions:



BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 0









More BMP series available:



BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 1





BMPW-36-A-M-N1 Hydraulic Motor With Needle Bearing Replace Danfoss OMP36 And M+S MP36 2







Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
