| Type: | Hydraulic Heavy Disc Motor | Model No.: | 112-1058-006 |
|---|---|---|---|
| Max.torque(N.m): | Cont.565N.m/int.860N.m | Max.speed(rpm): | Cont.765rpm/int.865rpm |
| Max Pressure Drop: | Cont.20Mpa/int.30Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| High Light: | Eaton low speed hydraulic motor,Drilling Rig low speed hydraulic motor,Drilling Rig low rpm hydraulic motor |
||

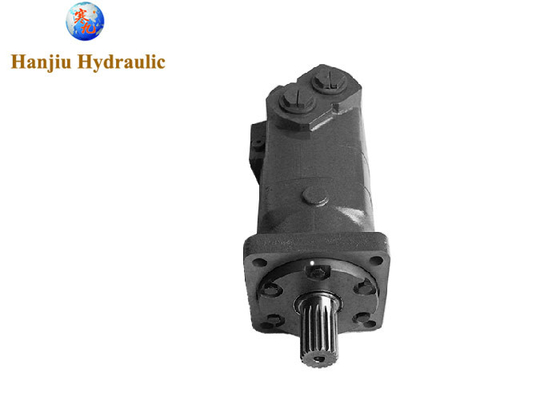

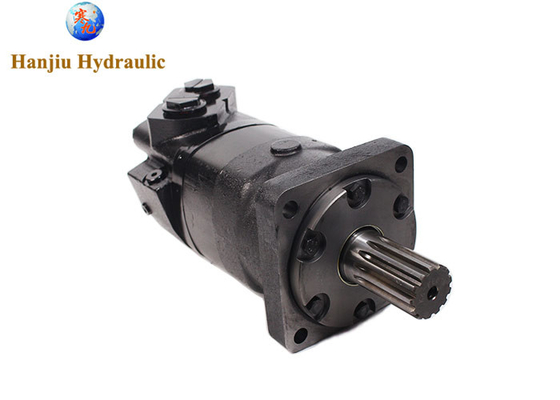

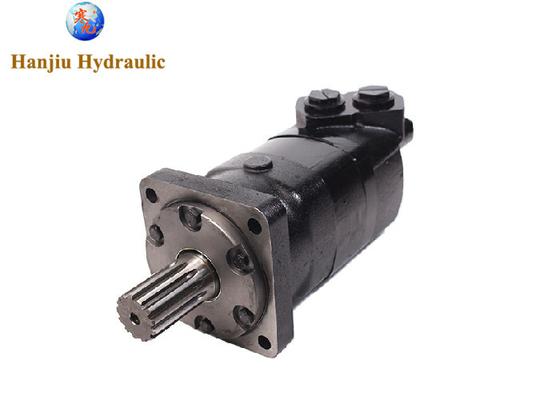

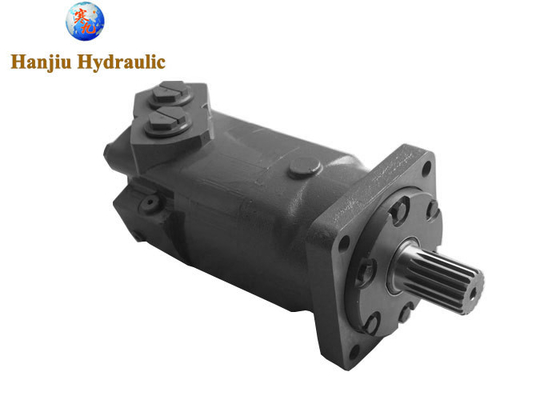

Eaton 6-200ACAS-E9035 hydraulic high torque motor replacement drilling rig HD500-06003
Drilling Rig and Drifter spare parts
Hydraulic Rotation Motor
Eaton 6000 series motors, charlynn orbit motor
for Ingersollrand & Furukawa parts
6-200ACAS-E9035==BMK6-200
Main Specification
| Type |
|
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) |
cont. |
765 |
610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M |
cont. |
565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
the Hydraulic Motor BMK6 Series is a powerful and efficient hydraulic motor that offers exceptional performance and reliability. Its compact design, high torque density, and energy efficiency make it a popular choice across various industries. Whether in agriculture, construction, heavey equipments or any other field that requires hydraulic power, the Motor BMK6 is a reliable and cost-effective solution.
