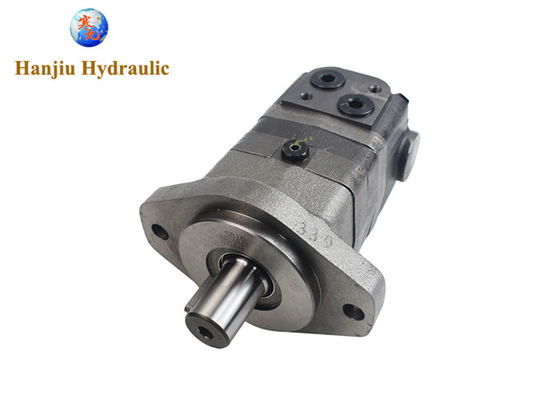

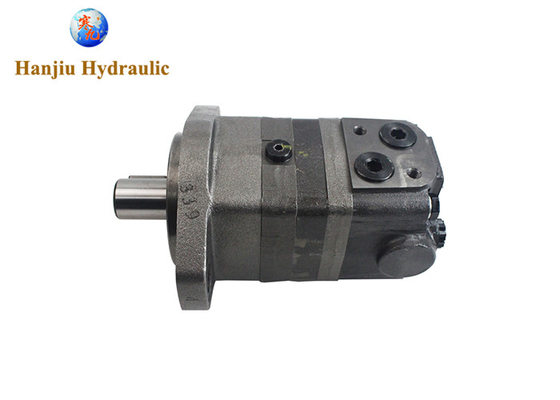

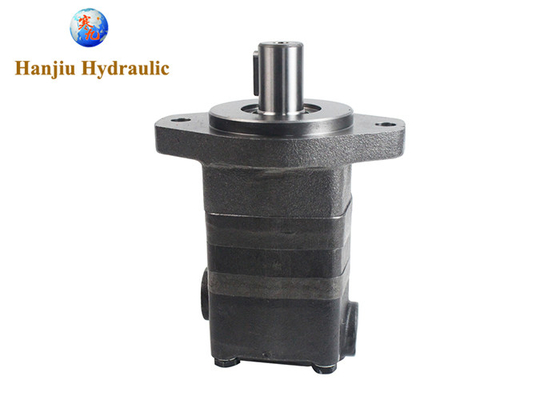

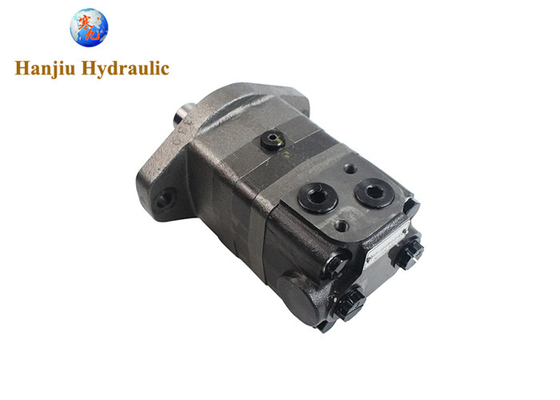

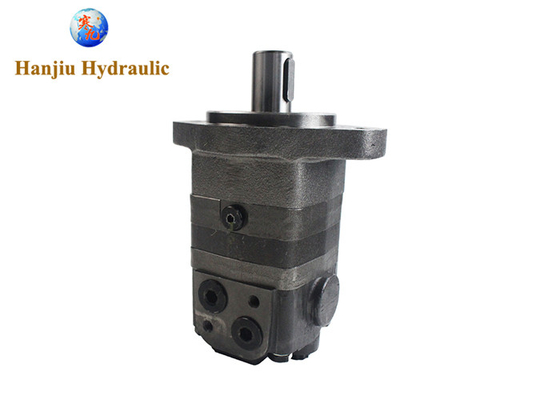

Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS

Large Image : Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-100-E2B-G-EE-S2

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	88 usd/pc
Packaging Details:	Box, carton, pallet
Delivery Time:	0 - 35 work days
Payment Terms:	T/T
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Motor	Model No.:	BMSY-100-E2B-G-EE-S2
Displacement:	100cc	Flange:	2 Bolt
Shaft:	32mm	Port:	G 1/2
Rotation:	Standard	Color:	Black
Manufacturer:	Hanjiu	Brand:	Hanjiu
Highlight:	Equivalent to OMS MS Hydraulic motor , 180° Apart ports Hydraulic motor , BMS Series Hydraulic Motor

Hydraulic motor BMS series with 180° Apart ports Equivalent to OMS MS

Quick review:

Model No.	BMSY-100-E2B-G-EE-S2
Geometric displacement	100 cm³
Max. speed continuous.	748 rpm
Max. speed intermittent.	900 rpm
Max. torque continuous.	290 Nm
Max. torque intermittent	390 Nm
Max. pressure continuous	210 bar
Max. pressure intermittent.	250 bar
Max. pressure peak	270 bar

BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.

Specification:

Main Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Dimentions:

Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS 0

More BMS series hydraulic motors available from us:

Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS 1

More hydraulic motors available:

Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS 2

Hydraulic Motor BMS Series With 180° Apart Ports Equivalent To OMS MS 3

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
