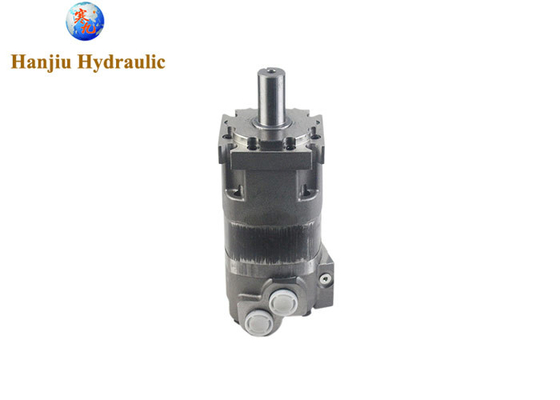

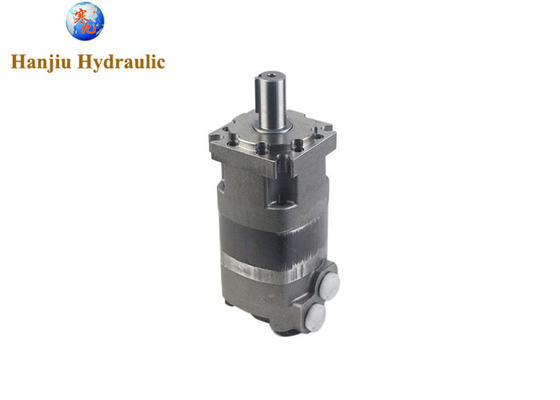

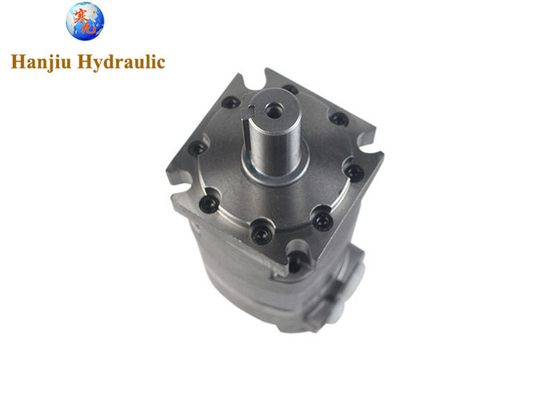

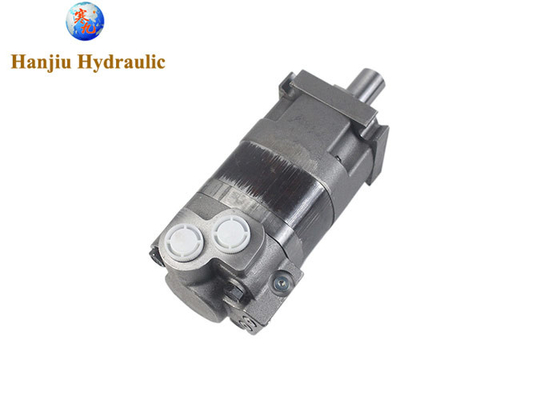

Char Lynn 4000 series Geroler motor 19.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft
Quick review:
| 109-1105-006 |
|
BMK4-315 |
| Model Code: |
|
M04190AB01AB02000000000000000F |
| Feature |
Code |
Description |
| PRODUCT |
M |
MOTOR |
| SERIES |
4 |
4000 SERIES |
| DISPLACEMENT |
190 |
311.8 CM3/R [19.03 IN3/R] |
| MOUNTING TYPE |
AB |
STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B) |
| OUTPUT SHAFT |
1 |
31.75 [1.250] DIA. STRAIGHT WITH .375-16UNC-2B THREAD, 53.1 [2.09] MAX COUPLING LENGTH, 7.938 [.3125] SQ X 41.27 [1.625] STRAIGHT KEY |
| PORTS |
AB |
1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS |
2 |
.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF |
0 |
NONE |
| PRESSURE/FLOW OPTION |
0 |
NONE |
| GEROLER OPTION |
0 |
STANDARD |
| SEAL OPTION |
0 |
STANDARD |
| ACCESSORIES |
0 |
NONE |
| SPECIAL FEATURES (HARDWARE) |
0 |
NONE |
| SPECIAL FEATURES (ASSEMBLY) |
0 |
NONE |
| PAINT/PACKAGING |
0 |
NO PAINT, INDIVIDUAL BOX |
Application
Mowing, Snow Removal, Sprayer, Trencher, Wood Products
orbital hydraulic motor working principle
Advantages of Orbital Hydraulic Motors
High starting torque Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Orbital Hydraulic Motors
Construction equipment Excavators, cranes, drilling rigs
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Factors Affecting Orbital Motor Performance
Displacement Determines the amount of fluid displaced per revolution, influencing torque output.
Operating pressure Higher pressure generally results in higher torque.
Motor design The internal components and configuration significantly impact performance.
Efficiency The motor's ability to convert hydraulic energy into mechanical power.
Selecting the Right Orbital Motor
To choose the optimal orbital hydraulic motor for your application, consider
Required torque and speed Match the motor's specifications to your load requirements.
Operating pressure Ensure the motor can handle the system's pressure.
Mounting options Select a motor with the appropriate mounting flange.
Fluid compatibility Choose a motor compatible with the hydraulic fluid used in your system.
Environmental conditions Consider factors like temperature, humidity, and contamination.
Would you like to know more about specific applications or how to select the right orbital hydraulic motor for your project
I can provide more detailed information and recommendations based on your requirements.
