Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Brake Motor | Material: | Cast Iron |
|---|---|---|---|
| Model No.: | Bmr-bk3b-160-H4-E-S-G-N1 | Displacement: | 160CC |
| Speed: | 378 RPM - 475 RPM | Flow: | 60 Lpm -75 Lpm |
| Pressure: | 17.5mpa-22.5mpa | Output: | 10-13kw |
| High Light: | Square Mounting Hydraulic Motor,11104624 OMR 160 NF Hydraulic Motor,Internal Brake Hydraulic Motor |
||

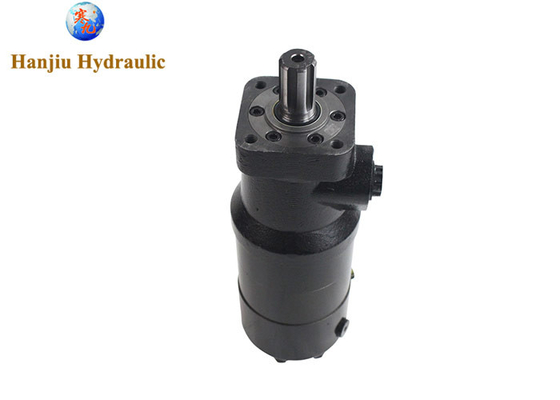

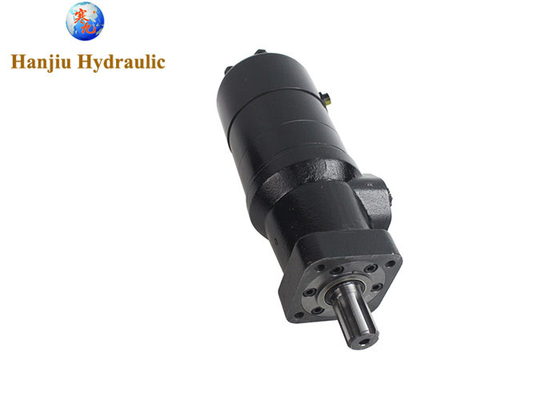

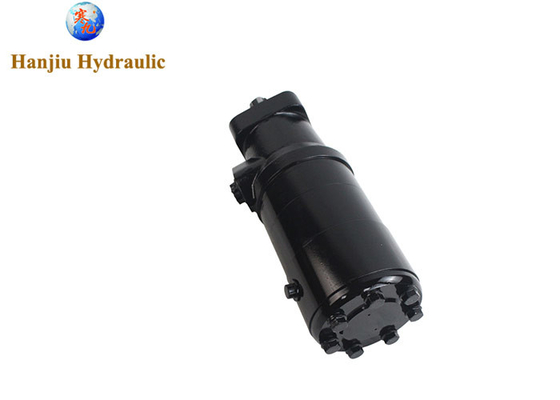

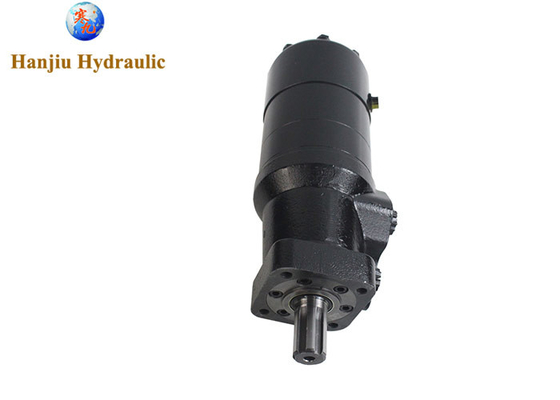

New Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor , square mounting with internal brake
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR Bk3 36 |
BMR Bk3 50 |
BMR Bk01 80 |
BMR Bk3 100 |
BMR Bk01 125 |
BMR Bk3 160 |
BMR Bk3 200 |
BMR Bk3 250 |
BMR Bk3 315 |
BMR Bk3 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
China has become a significant global player in the manufacturing of hydraulic components, including orbital hydraulic motors. The country offers a wide range of these motors, catering to various industrial and agricultural applications.
Key Characteristics of Chinese Orbit Hydraulic Motors
Cost-effective Generally, Chinese-made orbital motors are more affordable compared to their Western counterparts.
Diverse range A wide variety of models, sizes, and specifications are available to suit different needs.
Customization options Many Chinese manufacturers offer customization to meet specific requirements.
Rapid development The industry is rapidly evolving, with continuous improvements in quality and technology.
Factors to Consider When Buying a Chinese Orbit Hydraulic Motor
Quality While prices are competitive, it's essential to ensure quality standards. Look for certifications and customer reviews.
Reliability Consider the motor's durability and lifespan for your specific application.
After-sales service Check the manufacturer's support and spare parts availability.
Compatibility Ensure the motor is compatible with your existing hydraulic system.
HANJIU Technology is one of the opular Chinese Manufacturers of Orbit Hydraulic Motors
Choose Hanjiu, wont let you down!
