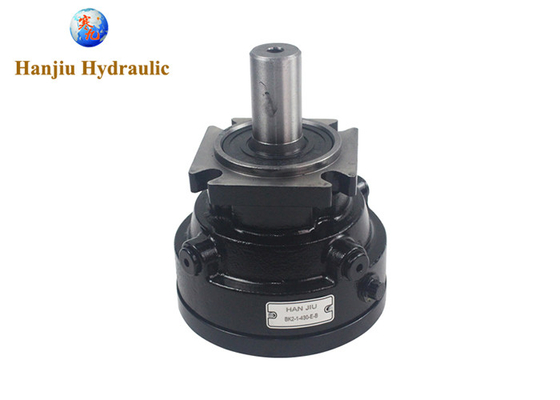

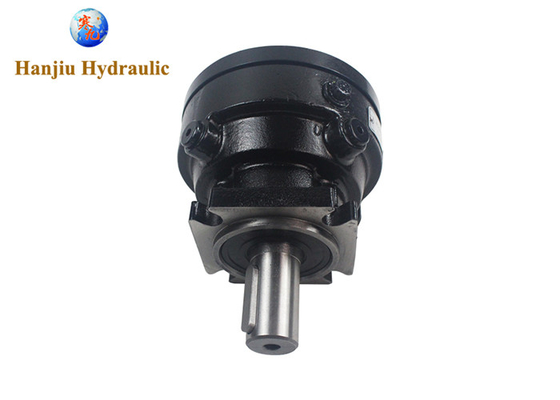

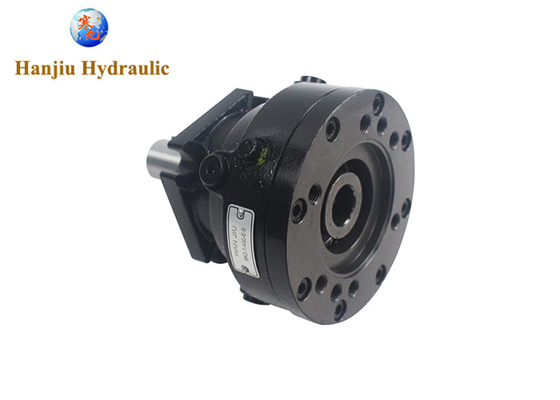

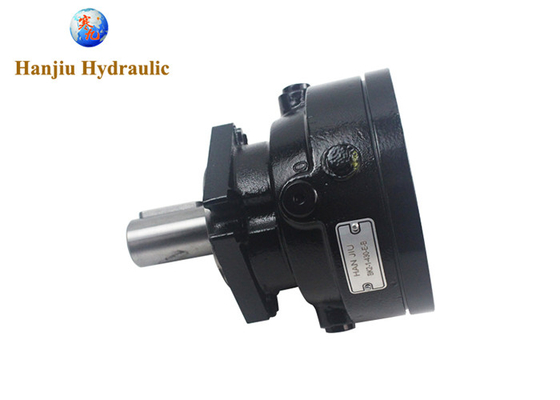

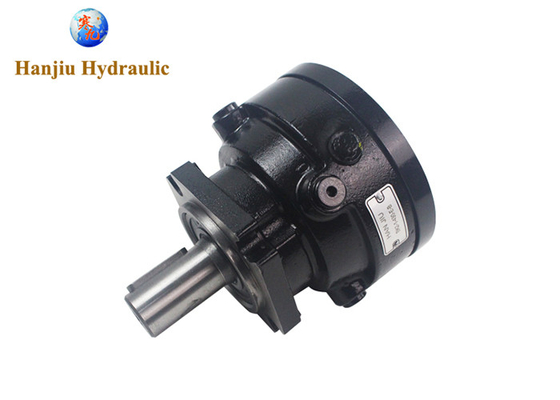

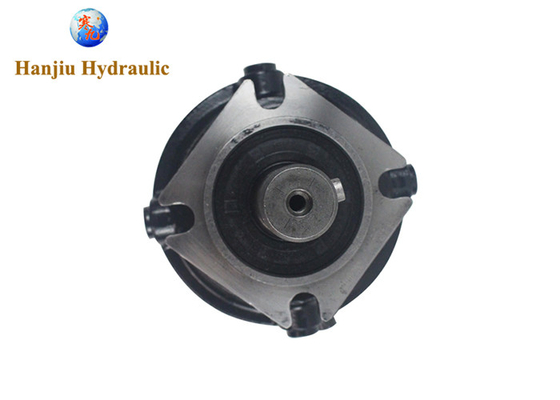

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft

Large Image : Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BK2-1-430-E-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motors

Replace:

LB/288

Displacement:

430NM

Outlet Shaft:

Spline Shaft

Highlight:

1″ 6B Splined Input Hydraulic Brake

32mm Straight Shaft Hydraulic Brake

430NM Hydraulic Brake

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM, 1″ 6B Splined Input. 32mm Straight Shaft

Quick review:

Hydraulic Motors
Hydraulic Brake
BK2-1-430-E-B Disc Brake 430NM
Disc Brake 1″ 6B Splined Input. 32mm Straight Keyed Output. 430NM

This hydraulic brake can be used in wide applications. The brake is compatible with LB/288C-43C of M+S Bulgaria. These compact disc brakes are assembled directly on hydraulic motor output shafts, can be connected to MP, MR and MS series hydraulic motors easily. The brake is a hydraulic wet disc brake, the braking force is generated by springs and the hydraulic release brake force.

The features are as follows:

Long life, low noise, high braking reliability.
Can be used in different applications.
Compact structure, easy installation.

Specifications/ Technical Data:

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft 0

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft 1

Input Shaft

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft 2

Output shaft

Hydraulic Brake BK2-1-430-E-B Disc Brake 430NM 1″ 6B Splined Input 32mm Straight Shaft 3

Note:
This type of brake is only used for static parking brake. Dynamic braking is not recommended.

Hydraulic brakes have been in braking state since leaving the factory. In normal operation, there is braking force in the brake disc, and the spring force can only keep the brake in braking state when the pressure of the hydraulic system connected to the brake is lower than the pressure required for brake release.

Application:
This series of hydraulic brakes are widely used in heavy machinery, such as construction machinery, cranes, off-road machinery vehicles, construction machinery, material handling machinery, agricultural machinery, mining, sanitation machinery, wood industry, etc. They are also used in hydrostatic drive systems of winches and automated engines.

Welcome to discuss your equipment needs with me, we will meet your needs, and with better conditions and services.
