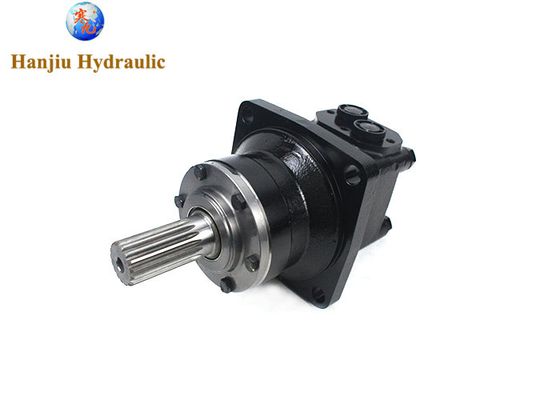

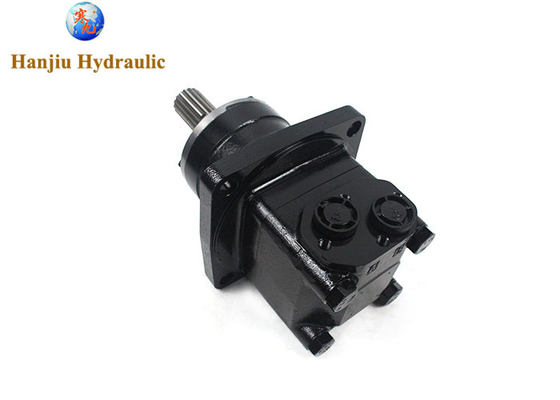

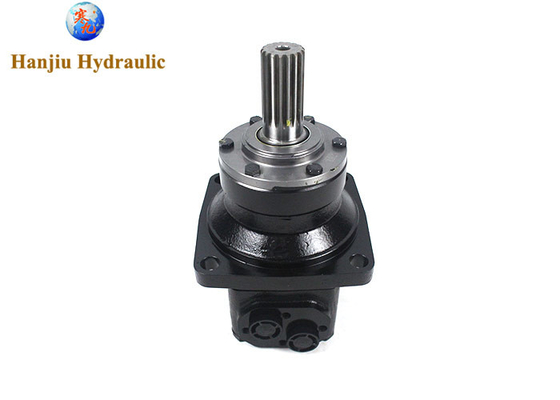

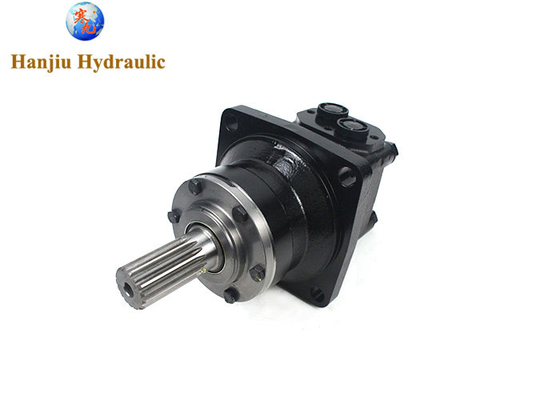

MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft

Large Image : MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-315

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Model:	BMT-315-W-FD-D
Fastening:	Wheel Mounting	Displacement:	315CM3/R
Shaft:	17 Teeth Spline Shaft	Port:	G1/2 Ports
Highlight:	MTW315SH Hydraulic Motor , Gerotor Hydraulic Motor , Hydraulic Wheel Drive Motor

MTW315SH Gerotor hydraulic motor, hydraulic wheel drive motor with 1 1/2 inch splined shaft

the details as below

hanjiu code :BMT-315-W-FD-D = MTW315SH

Specification:

DISPLACEMENT	315CC
SERIES	BMT315,MTW315,OMTW315
PORT LOCATION	Side Port, Staggered
SHAFT TYPE	Splined 17-DP12/24
DRAIN	G1/4
MAXIMUM SPEED @ CONTINUOUS FLOW	380rpm/460rpm
FLOW RATE	125l/min
RPM [MAX]	460rpm
DUTY	Standard-Duty
GEROTER/GEROLER OPTIONS	Standard
MOUNTING TYPE	4-Ø18 Wheel-flangeØ200, pilot Ø160×7
PORT SIZE	G1/2
MOTOR TYPE	Disc Valve

MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft 0

MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft 1

MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft 3
It is used in the hydraulic system of municipal, road construction and agricultural special equipment.

Conveyors

Metal working machines

Road building machines

Mining machinery

Food industries

Agricultural machines

Special vehicles

Plastic and rubber machinery etc.

MTW315SH Gerotor Hydraulic Motor Hydraulic Wheel Drive Motor With 1 1/2 Inch Splined Shaft 4
