BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

Large Image : BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-375-MD-G2

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Size:

375 Ml/r

Flange:

4-bolt

Rotation:

Highlight:

BMER-375 Hydraulic Motor

Orbit Hydraulic Motor Supplier

China Gerotor Hydraulic Motor

BMER-375 Orbit Hydraulic Motor Supplier - China Gerotor Motor Supplier

Welcome!

Hydraulic Motor manufacturer from China specializes in high performance bidirectional hydraulic motors for

mixing, sweeping, lifting, conveying and various applications.

Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

BMER-2-375-MD-G2

displacement	375 ml/r
flange	4-13.5 Magneto Mount
ports	G1/2
output shaft	31.75mm Parllel Key shaft
rotation	CW
paint	black

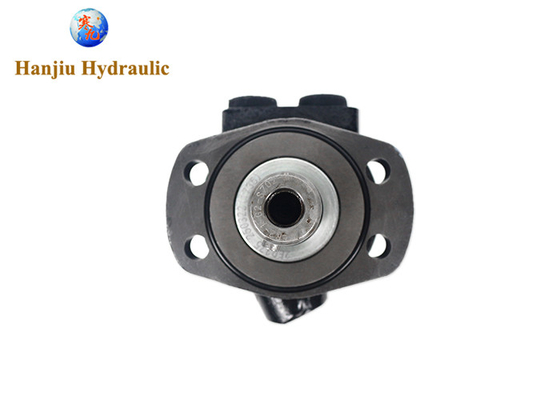

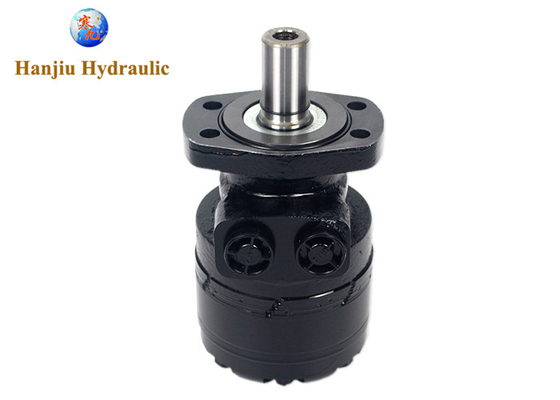

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 0

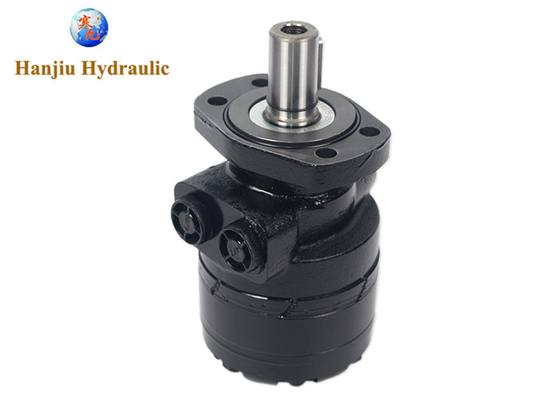

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 1

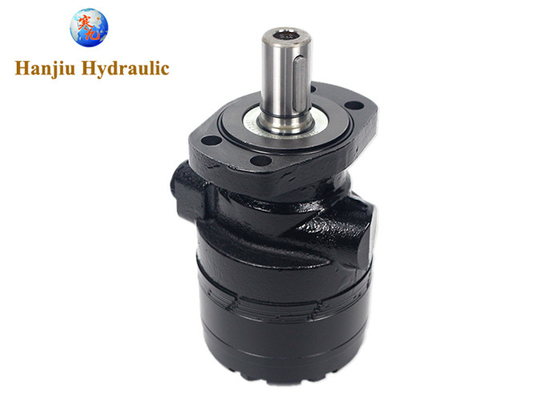

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 2

Specification:

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

Mounting size of : BMER-2-375-MD-G2

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 3

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 4

More mounting sizes available for BMER series:

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 5

More BMER series motors available:

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier 6

Contact us to learn more about BMER series hydraulic motors
Welcome to send your original equipment code, which can help us quickly match the model suitable for your business
We hope that our experience and technology can create value for you.
