BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier

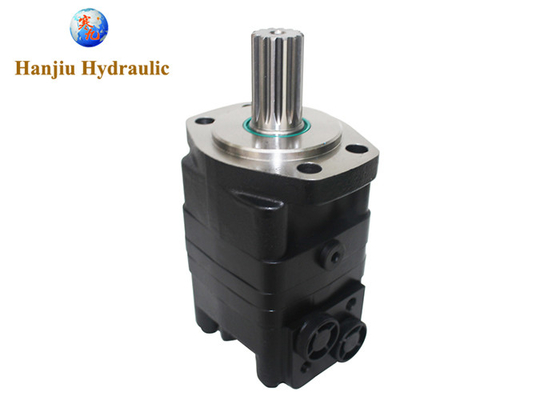

Large Image : BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-80-E6-FD-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Size:

80 Ml/r

Flange:

4-bolt

Rotation:

CW And CCW

Highlight:

BMSY-80-E6-FD-D Hydraulic Orbit Motor

China Factory Hydraulic Orbit Motor

BMSY-80-E6-FD-D, China Factory, BMSY series Hydraulic Orbit Motor Supplier

Welcome!

Hydraulic Motor manufacturer from China specializes in high performance bidirectional hydraulic motors for

mixing, sweeping, lifting, conveying and various applications.

Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

BMSY-80-E6-FD-D

displacement	80ml/r
flange	4-13.5 Magneto Mount
ports	G1/2 Manifold Mount 2-M10,G1/4
output shaft	Long Shaft O31.75, splined key 14-DP12/24
rotation	CW and CCW
paint	black

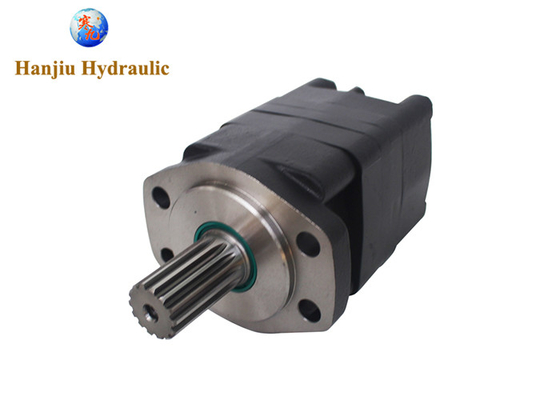

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 0

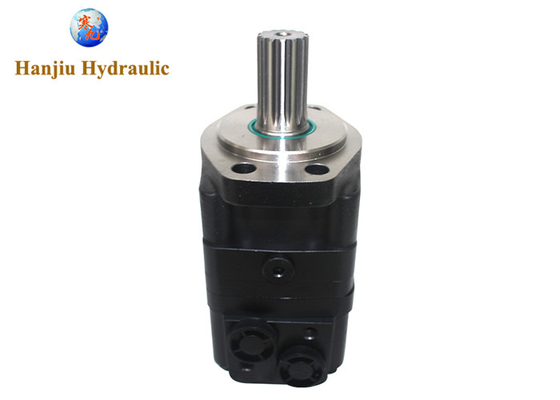

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 1

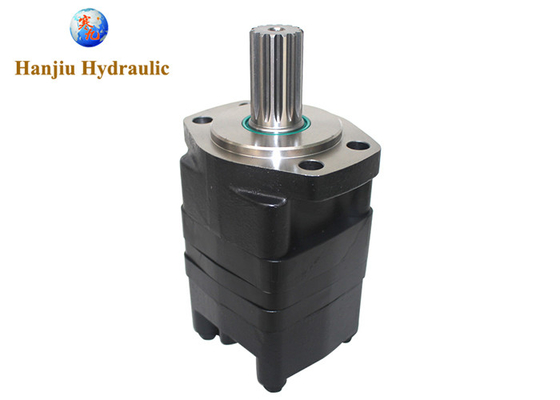

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 2

Specification:

Main Specifications:

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Mounting size of : BMSY-80-E6-FD-D,

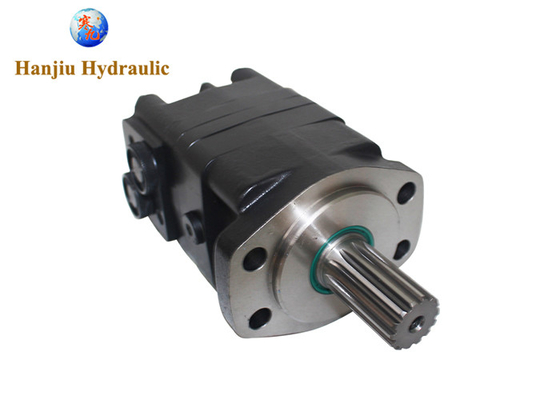

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 3

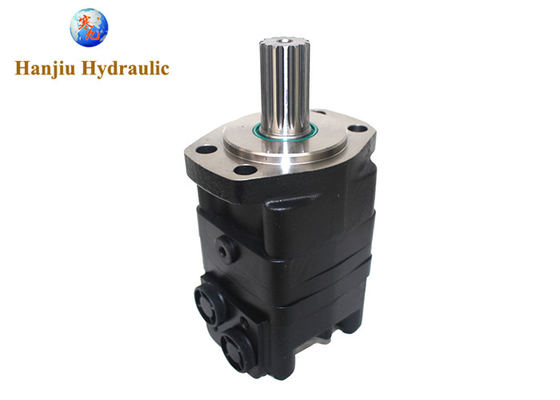

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 4

More mounting sizes available for BMSY series:

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 5

More BMSY series motors available:

BMSY-80-E6-FD-D China Factory BMSY Series Hydraulic Orbit Motor Supplier 6

Contact us to learn more about BMSY series hydraulic motors
Welcome to send your original equipment code, which can help us quickly match the model suitable for your business
We hope that our experience and technology can create value for you.
