151-5662 Hydraulic Orbit Motors Speed Sensor With Plug OMT500

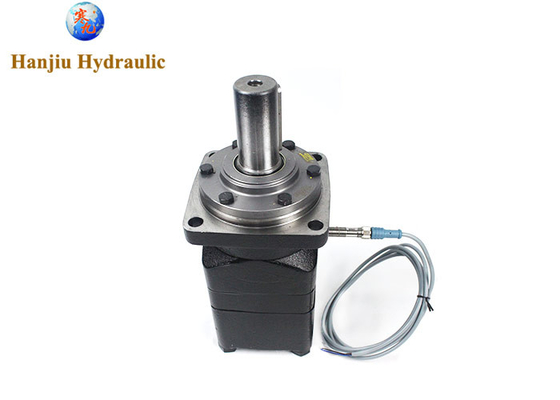

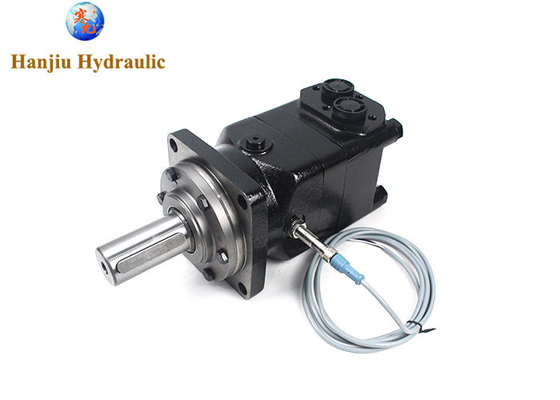

Large Image : 151-5662 Hydraulic Orbit Motors Speed Sensor With Plug OMT500

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Model:	BMT-500-4-M-D-SD
Fastening:	4 Bolts Mounting	Displacement:	500CM3/R
Shaft:	40mm Key Shaft	Port:	G1/2 Ports
Highlight:	151-5662 Hydraulic Orbit Motor , Speed Sensor Hydraulic Orbit Motor , OMT500 Hydraulic Orbit Motor

151-5662 Hydraulic orbit motors Speed Sensor with plug OMT500

Speed Sensor with Plug Connection (PNP Output)

The electric output signal is a standard voltage signal that can be used for regulating the speed motor.

the details as below

hanjiu code :BMT-500-4-M-D with speed sensor

Specification:

DISPLACEMENT	500CC
SERIES	BMT500,MT500,OMT500
PORT LOCATION	Side Port, Staggered
SHAFT TYPE	40mm key shaft
DRAIN	G1/4
MAXIMUM SPEED @ CONTINUOUS FLOW	380rpm/460rpm
FLOW RATE	125l/min
RPM [MAX]	460rpm
DUTY	Standard-Duty
GEROTER/GEROLER OPTIONS	Standard
MOUNTING TYPE	4-Ø14 Square-flangeØ160, pilotØ125×9
PORT SIZE	G1/2
MOTOR TYPE	Disc Valve
