TK0630K5360AAAA Parker hydraulic orbital motor 630 cm3 series TK Torqmotor

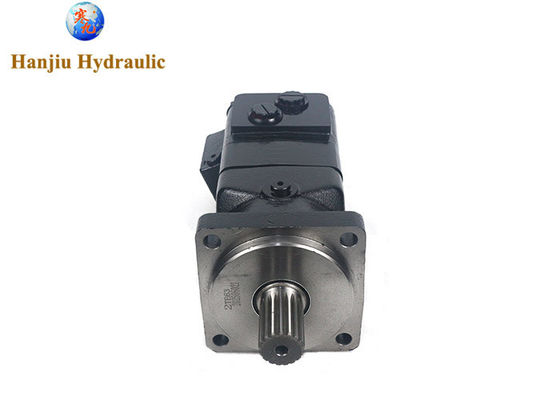

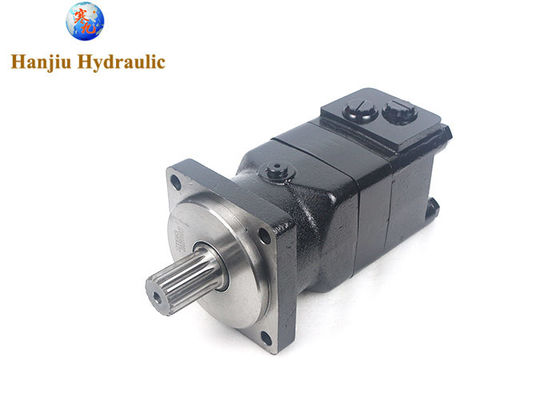

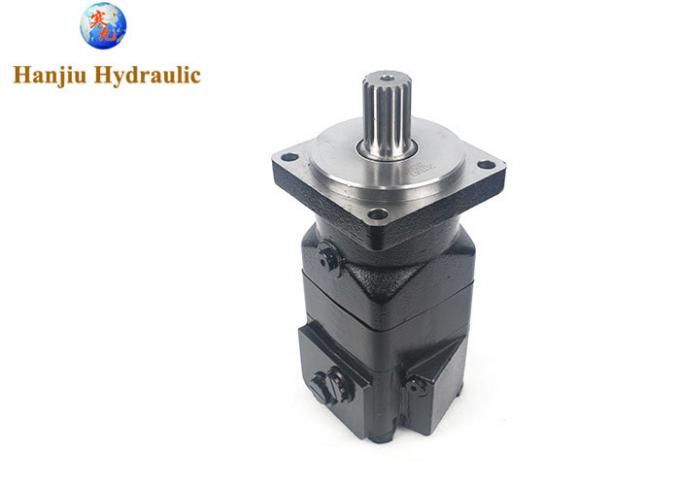

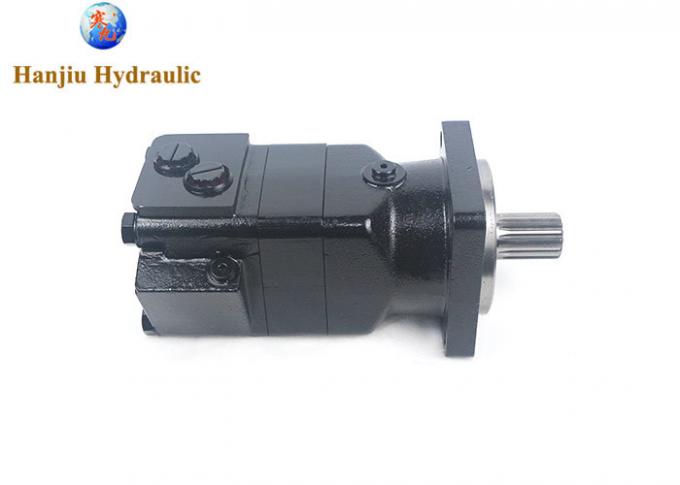

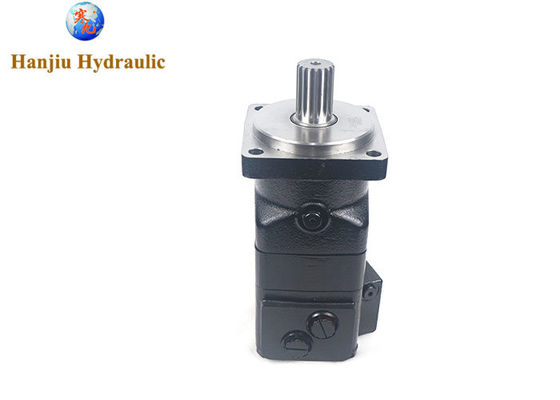

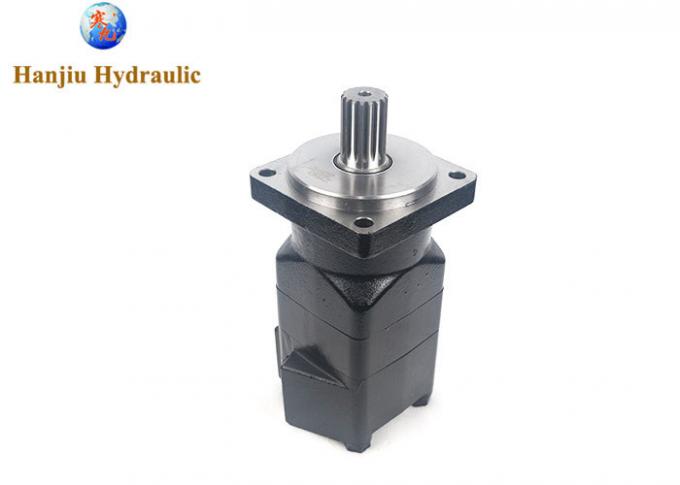

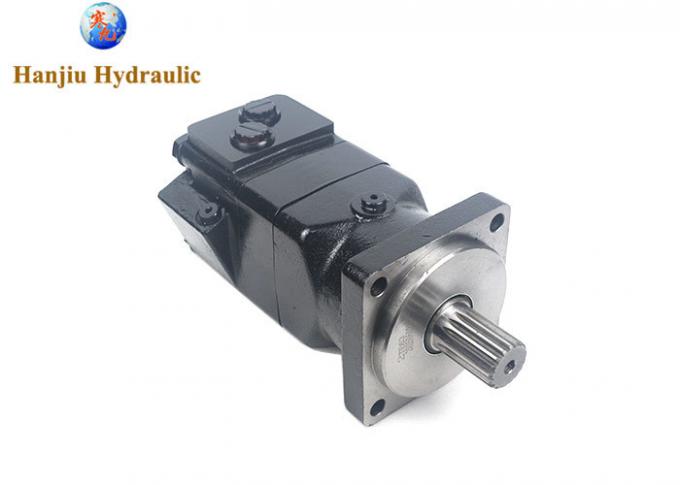

Large Image : TK0630K5360AAAA Parker hydraulic orbital motor 630 cm3 series TK Torqmotor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Model:	BMTE-630-CC-FE-SE1-B
Fastening:	4 Bolts Mounting	Displacement:	630CM3/R
Shaft:	38.1mm Splined Shaft	Port:	1-5/16-12UNF Ports
Highlight:	Parker hydraulic orbital motor 630 cm3 , TK series Torqmotor hydraulic motor , low speed high torque hydraulic motor

TK0630K5360AAAA Parker Hydraulic Orbital Motor 630 cm3 Series TK Torqmotor

Product Attributes

Attribute	Value
Material	Cast iron
Model	BMTE-630-CC-FE-SE1-B
Fastening	4 bolts mounting
Displacement	630CM3/R
Shaft	38.1mm splined shaft
Port	1-5/16-12UNF Ports

Product Description

HANJIU Technology produces the BMTE series motors, matching Parker TK torqmotors with the same performance and specifications.

Hanjiu code: BMTE-630-CC-FE-SE1-B

Specifications

DISPLACEMENT	630CC
SERIES	BMT630, MT630, OMT630, 6K
PORT LOCATION	Side Port, Staggered
SHAFT TYPE	1 1/2 inch spline shaft with 17 teeth
DRAIN	7/16-20UNF O-ring
MAXIMUM SPEED @ CONTINUOUS FLOW	380rpm/460rpm
FLOW RATE	125l/min
RPM [MAX]	460rpm
DUTY	Standard-Duty
GEROTER/GEROLER OPTIONS	Standard
MOUNTING TYPE	4-Ø14 Square-flangeØ160, pilotØ125×9
PORT SIZE	1-5/16-12UN
MOTOR TYPE	Disc Valve

Hanjiu Orbital motor has successfully served in the following fields by virtue of its flexible adaptability:

Applications

Construction Machinery
Excavators and loaders: BM series motors are used to drive the traveling and slewing mechanism, with stable output torque and strong shock resistance.
Sanitation equipment: OMH series is used for sweeper brush drive, with low speed and high torque to ensure the cleaning efficiency.
Agriculture and Forestry
Harvesters and mowers: BMP series lightweight design fits compact space and is resistant to dust and vibration.
Logging machinery: BMH series high power density to meet the needs of high-frequency start and stop of logging saws.
Industrial Manufacturing
Injection molding machine: OMH series accurate flow control and low noise characteristics to ensure the stability of the molding process.
Machine transfer system: LMPS series high response speed to enhance the efficiency of automated production lines.

Service Guarantee

HANJIU is driven by the dual-wheel drive of technical support + after-sales response to ensure that customers use without worry:

Customized service: Support OEM production, provide personalized configuration of flange, output shaft, oil port, etc.
Technical guidance: Provide free performance curve diagrams and installation plans to assist customers in optimizing system matching.

We always take technological innovation as the engine and customer demand as the guide to provide high-quality production products. Hanjiu has rich experience in production and strong production capacity, and now we have all kinds of Orbital motor for sale, welcome to come and buy!
