TMT500 Hydraulic Orbital Motor 151Z3024, 500CC With 17teeth Spline Shaft For Heavy Machines

Large Image : TMT500 Hydraulic Orbital Motor 151Z3024, 500CC With 17teeth Spline Shaft For Heavy Machines

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Model:	VOM4-500-K6-F-S
Fastening:	4 Bolts Mounting	Displacement:	500CM3/R
Shaft:	38.1mm Splined Shaft	Port:	1-1/16-12UNF Ports
Highlight:	500CC hydraulic orbital motor , heavy machine hydraulic motor

TMT500 Hydraulic Orbital Motor 151Z3024, 500CC With 17teeth Spline Shaft For Heavy Machines

Product Attributes

Attribute	Value
Material	Cast iron
Model	VOM4-500-K6-F-S
Fastening	4 bolts mounting
Displacement	500CM3/R
Shaft	38.1mm splined shaft
Port	1-1/16-12UNF Ports

Product Description

HANJIU Technology produces the VOM4 series motors, matching 151Z3024 Orbital motor with the same performance and specifications.

Specifications

DISPLACEMENT	500CC
SERIES	TMT500
PORT LOCATION	Side Port, Staggered
SHAFT TYPE	1 1/2 inch spline shaft with 17 teeth
DRAIN	9/16-18UNF O-ring
MAXIMUM SPEED @ CONTINUOUS FLOW	230rpm/265rpm
FLOW RATE	115l/min
RPM [MAX]	265rpm
DUTY	Standard-Duty
GEROTER/GEROLER OPTIONS	Standard
MOUNTING TYPE	4-Ø14 Square-flangeØ162, pilotØ127
PORT SIZE	1-1/16-12UN
MOTOR TYPE	Disc Valve

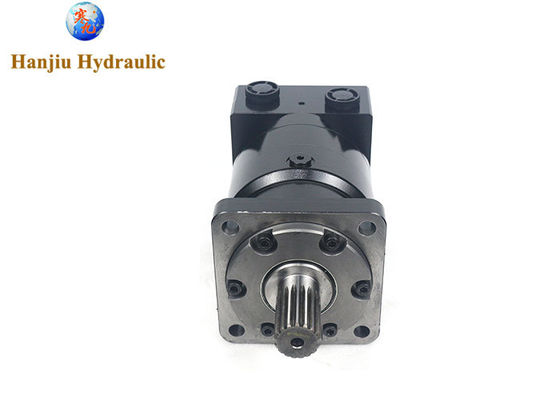

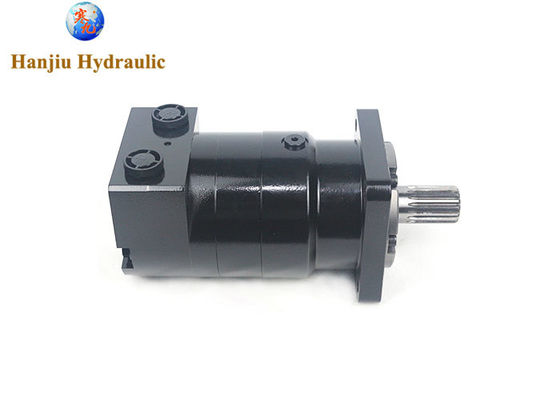

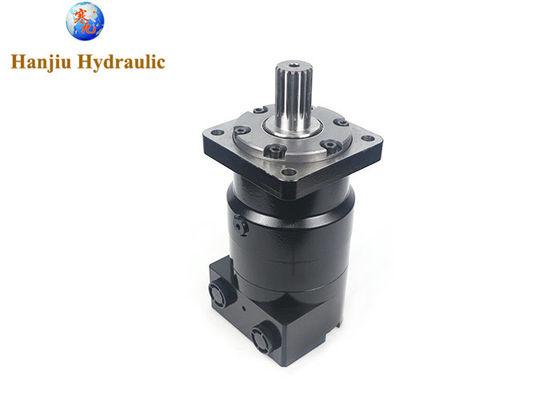

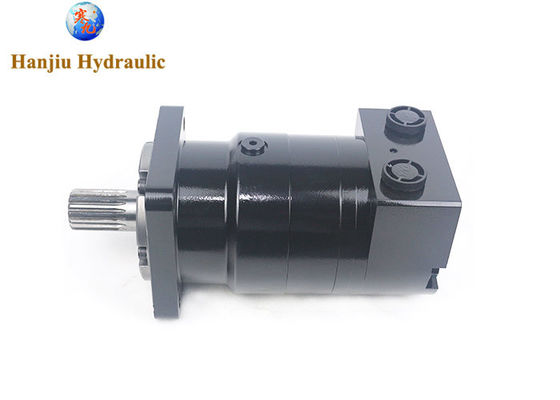

Product Images

Hanjiu Technology produces a complete series of hydraulic orbital motors for agricultural machines, industrial machines, heavy machines and construction machines.

We also offer the following specifications for your reference:

Orbital motors diagram
Orbital motor catalog PDF
Orbital motor exploded drawings
How do orbital motors work
Orbital motor spec sheet
Orbital motors for sale
Orbital hydraulic motors
Low speed orbital motors
