BMSY-200-E2-FE-S Orbital Motors BMSY, 200 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers

Large Image : BMSY-200-E2-FE-S Orbital Motors BMSY, 200 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-200-E2-FE-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	88 usd/pc
Packaging Details:	Box, carton, pallet
Delivery Time:	0 - 35 work days
Payment Terms:	T/T
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Motor	Model No.:	BMSY-200-E2-FE-S
Displacement:	200cc	Flange:	2 Bolt
Rotation:	Standard	Color:	Black
Manufacturer:	Hanjiu	Brand:	Hanjiu
Highlight:	low speed high torque hydraulic motor , orbital hydraulic motor for harvesting equipment , 200 ml/r hydraulic motor for skid steer

BMSY-200-E2-FE-S Orbital Motors BMSY, 200 Ml/r

Product Attributes

Attribute	Value
Product	Hydraulic Motor
Model No.	BMSY-200-E2-FE-S
Displacement	200cc
Flange	2 bolt
Rotation	Standard
Color	Black
Manufacturer	Hanjiu
Brand	Hanjiu

Product Overview

BMSY-200-E2-FE-S Orbital Motors BMSY, 200 Ml/r, designed for harvesting equipment, skid steers, cutters, and mowers.

Quick Specifications

Model No.	BMSY-200-E2-FE-S
Displacement	200 cm³
Mounting	SAE A 2 BOLT
Shaft	Spline

The BMS series offers versatile mounting and shaft options, making it ideal for swing motors, brush cutters & mowers, harvesting equipment, directional boring, and turf equipment. Its pressure relief protection optimizes system and motor performance and longevity.

Technical Specifications

Type	BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm) cont.	800	748	600	470	375	300	240	200
Max. speed (rpm) int.	988	900	720	560	450	360	280	240
Max. torque (N*m) cont.	190	240	310	316	400	450	560	536
Max. torque (N*m) int.	240	300	370	430	466	540	658	645
Max. torque (N*m) peak	260	320	400	472	650	690	740	751
Max. output (kW) cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW) int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa) cont.	17.5	17.5	17.5	15	14	12.5	12	10
Max. pressure drop (MPa) int.	21	21	21	21	16	16	14	12
Max. pressure drop (MPa) peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min) cont.	65	75	75	75	75	75	75	75
Max. flow (L/min) int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa) cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa) int.	30	30	30	30	30	30	30	30
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure: Max. value of operating motor continuously.

* Intermittent pressure: Max. value of operating motor in 6 seconds per minute.

* Peak pressure: Max. value of operating motor in 0.6 second per minute.

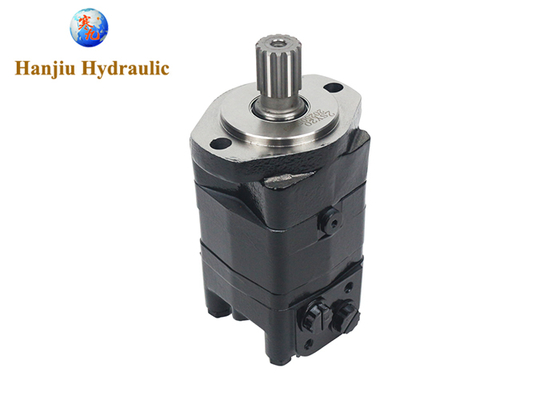

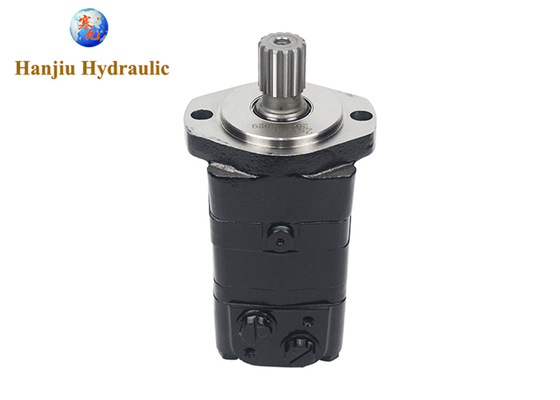

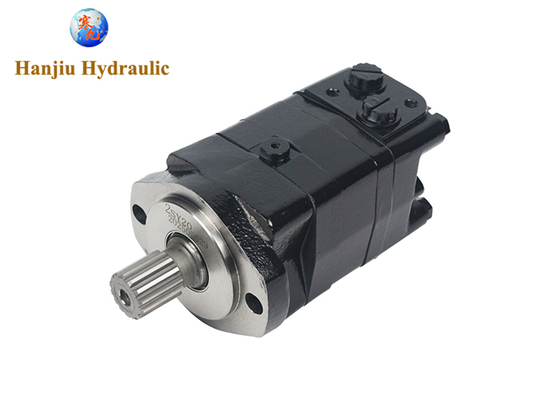

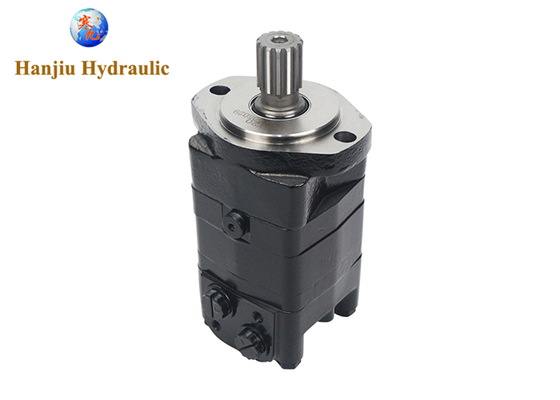

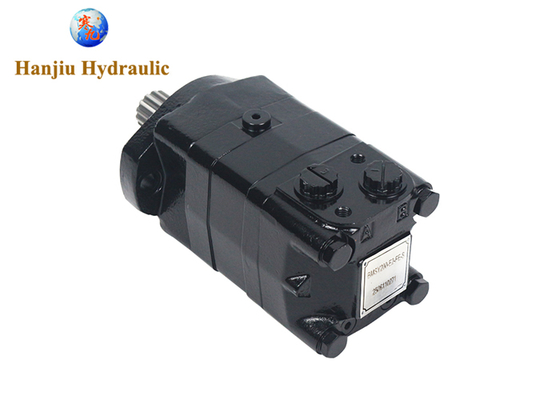

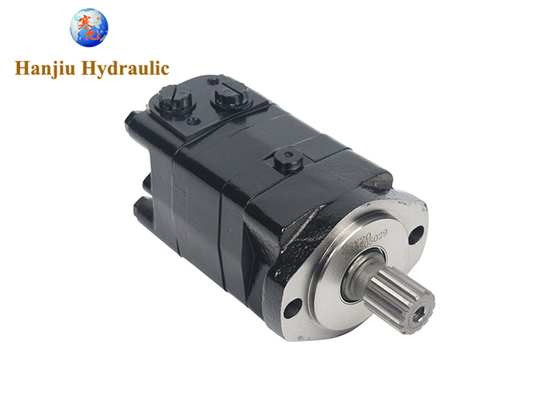

Product Images

More BMS Series Hydraulic Motors

Additional Hydraulic Motors Available

About Hanjiu

Hanjiu Technology is the largest manufacturer of hydraulic motors, orbit motors, low speed high torque motors, and torque motors in China. We offer the most comprehensive range of products, compatible with Danfoss, M+S, Charlynn, White, Parker and other major brands. With fast lead times, competitive pricing, and excellent service, our goal is to make your hydraulic systems both easy to implement and affordable.
