BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers

BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers
BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers

Large Image :  BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE, ISO9001
Model Number: BMSY-500-F6-G-SU
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 88 usd/pc
Packaging Details: Box, carton, pallet
Delivery Time: 0 - 35 work days
Payment Terms: T/T
Supply Ability: 70000 pieces per year
Contact Now
Detailed Product Description
Product: Hydraulic Motor Model No.: BMSY-500-F6-G-SU
Displacement: 500cc Flange: 6 Bolt
Rotation: Standard Color: Black
Manufacturer: Hanjiu Brand: Hanjiu
Highlight:

LSHT hydraulic motor 500 Ml/r

,

hydraulic motor for harvesting equipment

,

skid steer hydraulic motor

BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers
Product Attributes
Attribute Value
Product Hydraulic Motor
Model No. BMSY-500-F6-G-SU
Displacement 500cc
Flange 6 bolt
Rotation Standard
Color Black
Manufacturer Hanjiu
Brand Hanjiu
Quick Review
Model No. BMSY-500-F6-G-SU
Displacement 500 cm³
Mounting 6 BOLT
Shaft Key shaft

BMSY series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.

Specification
Main Specifications:
Type BMSY 80 BMSY 100 BMSY 125 BMSY 160 BMSY 200 BMSY 250 BMSY 315 BMSY 400 BMSY 500
Geometric displacement (cm3/rev.) 80.6 100.8 125 157.2 200 252 314.5 394 475
Max. speed (rpm) cont. 800 748 600 470 375 300 240 185 155
Max. speed (rpm) int. 988 900 720 560 450 360 280 225 185
Max. torque (N*m) cont. 190 240 310 316 400 450 560 880 910
Max. torque (N*m) int. 240 300 370 430 466 540 658 980 990
Max. torque (N*m) peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11 9
Max. output (kW) int. 20.1 23.5 23.2 21.2 18.3 17 18.9 12 11
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 16 14
Max. pressure drop (MPa) int. 21 21 21 21 16 16 14 19 15
Max. pressure drop (MPa) peak 22.5 22.5 22.5 22.5 22.5 20 18.5 21 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
Max. flow (L/min) int. 80 90 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
Max. inlet pressure (MPa) int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6 14.3
* Continuous pressure: Max. value of operating motor continuously.
* Intermittent pressure: Max. value of operating motor in 6 seconds per minute.
* Peak pressure: Max. value of operating motor in 0.6 second per minute.

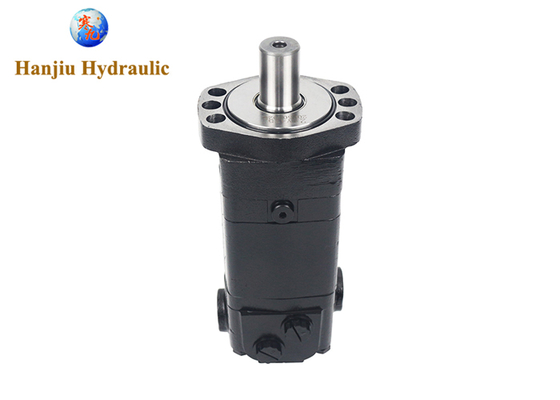

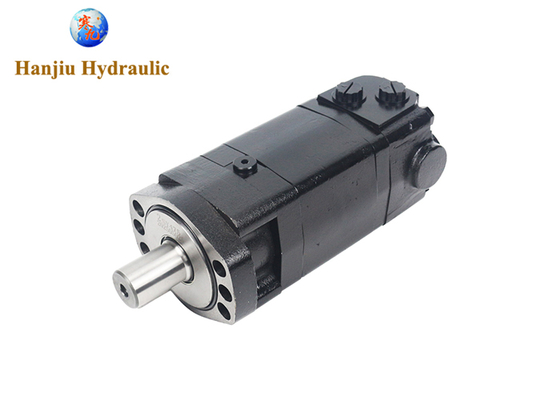

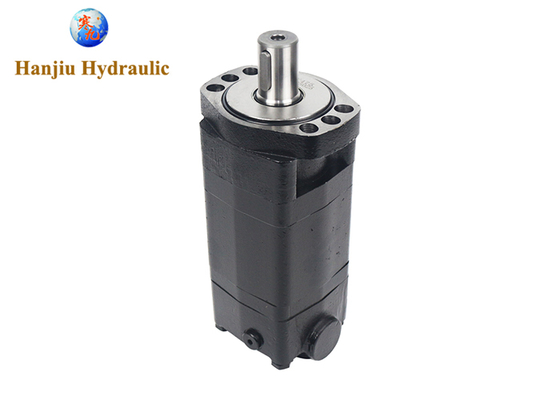

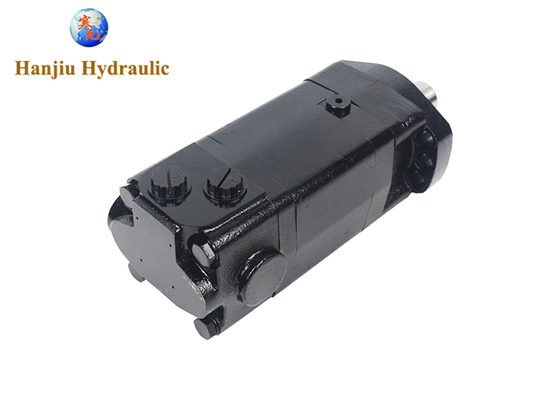

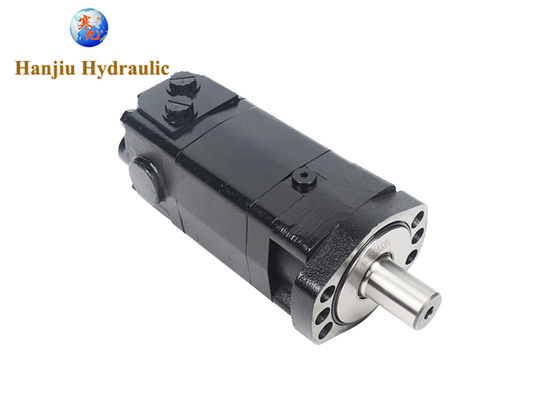

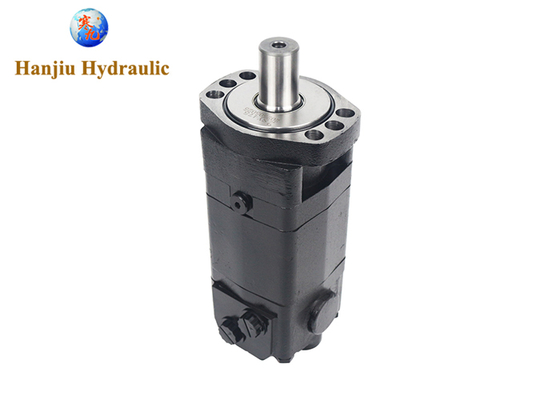

Product Images
BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers 0 BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers 1
More BMS Series Hydraulic Motors
BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers 2
More Hydraulic Motors Available
BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers 3 BMSY-500-F6-G-SU LSHT Hydraulic Motors, 500 Ml/r, Apply To Harvesting Equipment, Skid Steer, Cutters, Mowers 4
About Hanjiu

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker.. with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
