Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications

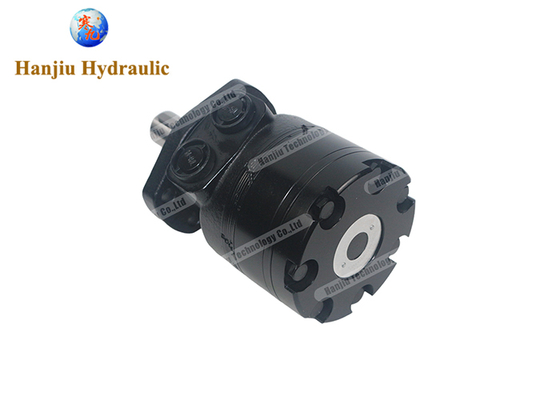

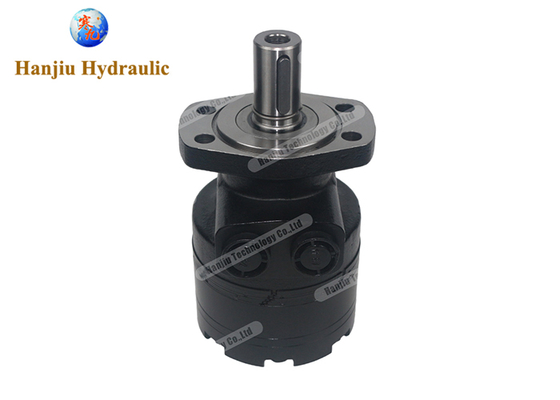

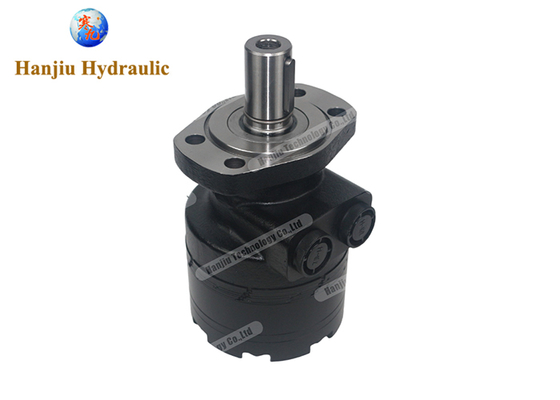

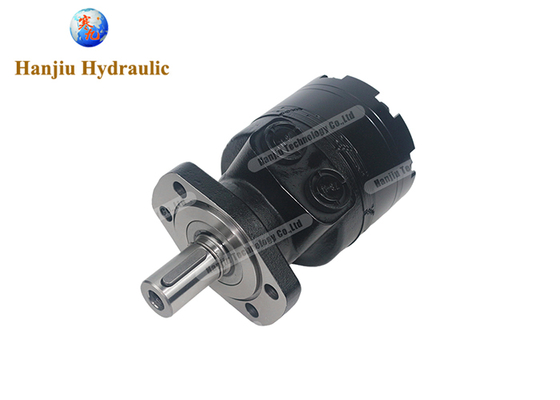

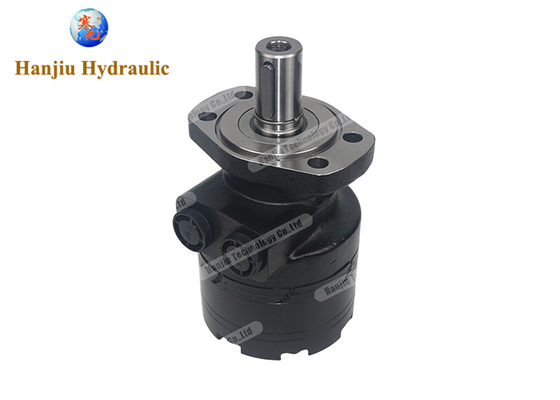

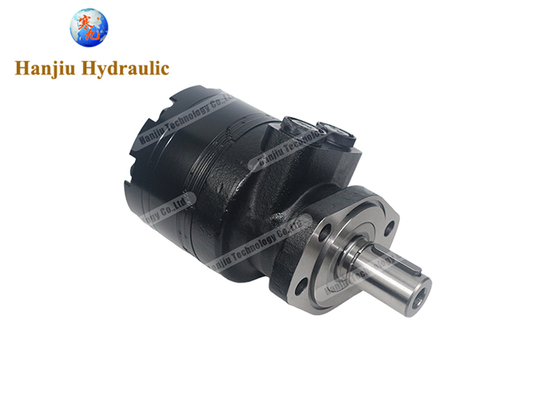

Large Image : Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-350-MS-G2

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Size:

350 Ml/r

Flange:

4-bolt

Rotation:

Highlight:

Parker LSHT hydraulic motor

low speed high torque orbital motor

BMER-350-MS-G2 hydraulic motor

Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications

Product Specifications

Attribute	Value
Product	Hydraulic Motor
Size	350 ml/r
Flange	4-bolt
Rotation	CW

Product Overview

Hanjiu Hydraulic specializes in orbital hydraulic motors that serve as high-quality direct replacements for Danfoss, Eaton Char-lynn, White, M+S, and Parker systems. Our motors combine superior quality with competitive pricing and fast delivery.

Quick Specifications

Model: BMER-350-MS-G2
Displacement: 350 ml/r
Flange: 4-bolt mounting
Rotation: Clockwise

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Key Features

100% compatible with Parker TG series
Identical mounting configuration to Parker TG
Equivalent performance to Parker TG models
Extended service life
More affordable pricing

Bulk importers: Contact us for special cooperation terms and preferential pricing.

About Hanjiu Hydraulic

HANJIU is a leading Chinese hydraulic motor manufacturer with over a thousand motor types used in automated hydraulic systems across multiple industries including engineering, construction, agriculture, forestry, ports, and mining. Our global partners include equipment manufacturers in Italy, UK, Germany, Turkey, and North America, as well as dealers for Danfoss, Eaton, Parker, and White systems.

Equipment manufacturers and hydraulic distributors are invited to contact us to discuss your specific requirements and discover how we can meet your needs.
