BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft

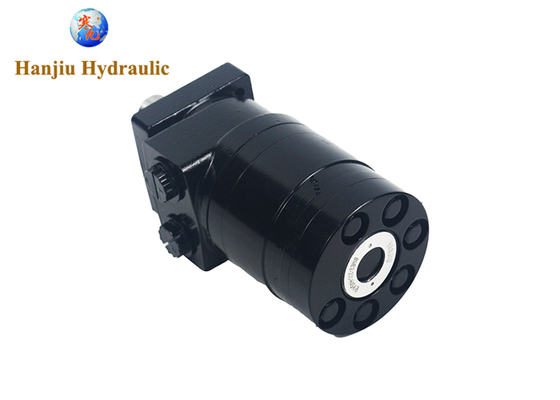

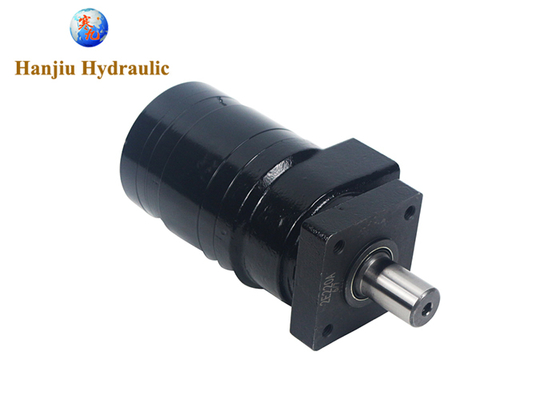

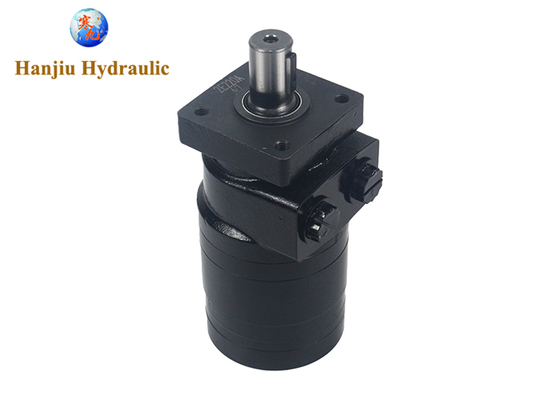

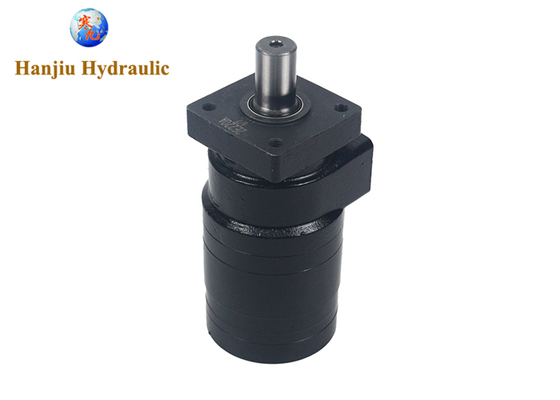

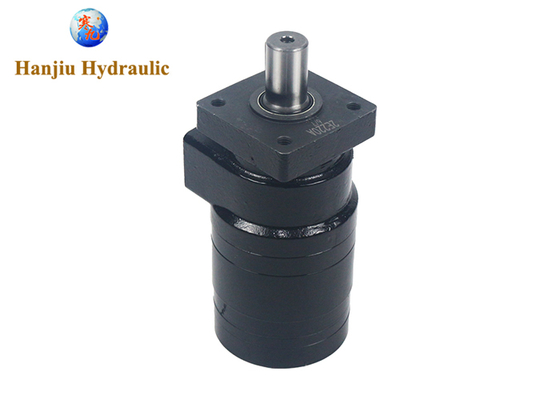

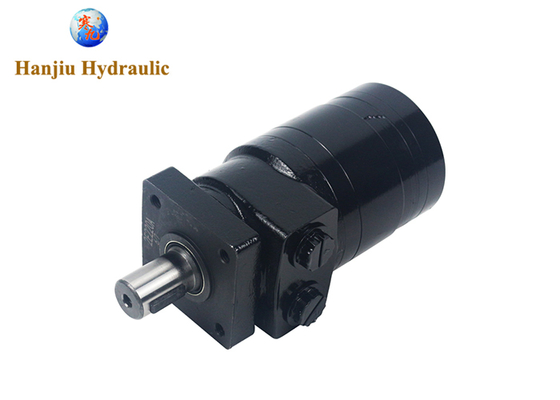

Large Image : BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BME2-200-H4S-K

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Size:

200 Ml/r

Flange:

4-bolt

Rotation:

Highlight:

LSHT hydraulic motor 200 ml/r

Parker TE TF gerotor motor

4 bolt hydraulic motor 25.4mm shaft

BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft

Product Specifications

Attribute	Value
Product	Hydraulic Motor
Size	200 ml/r
Flange	4-bolt
Rotation	CW

Product Overview

Hanjiu Hydraulic specializes in orbital hydraulic motors that serve as high-quality direct replacements for Danfoss, Eaton Char-lynn, White, M+S, and Parker models. Our BME2 series offers reliable low-speed, high-torque gerotor motors compatible with Parker TB, TC, TE, TF, TG, and TK series.

Quick Specifications

Model: BME2-200-H4S-K
Displacement: 200 ml/r
Shaft: 25.4mm straight
Flange: 4-bolt mounting
Rotation: Clockwise

Technical Specifications

Type	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
	65	80	100	125	160	200	230	250	295	315	375
Geometric displacement (cm³/rev.)	66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N•m)	cont.	126	157	191	245	307	382	378	381	393	448	439
	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	165	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
	int.	57	57	57	57	57	57	75	75	75	75	75

Key Features

100% compatible with Parker TG series
Identical mounting configuration to Parker TG
Equivalent performance to Parker TG models
Extended service life
More affordable pricing

Bulk importers: Contact us for special cooperation terms and preferential pricing.

About Hanjiu Hydraulic

HANJIU is a leading Chinese hydraulic motor manufacturer with over a thousand motor types used in automated hydraulic systems across multiple industries including engineering, construction, agriculture, forestry, ports, and mining. Our products serve international partners including mixing machine manufacturers in Italy, sweeping machine manufacturers in the UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, and mining rig manufacturers in North America. We also collaborate with dealers representing Danfoss, Eaton, Parker, and White.

Equipment manufacturers and hydraulic distributors are invited to contact us to discuss your specific requirements and explore partnership opportunities.
