BMER Series 350ml/r Orbital Hydraulic Motor with 4-Hole Flange G 1/2 Port and 1-1/2” Tapered Shaft

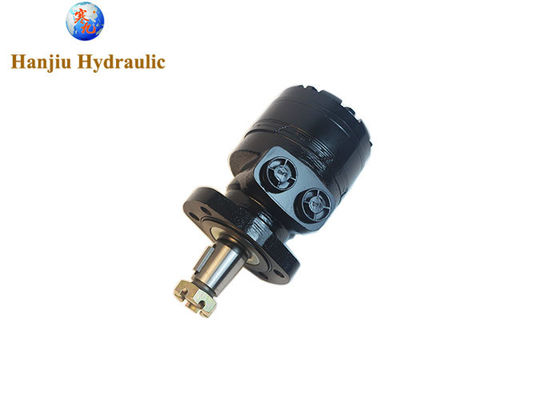

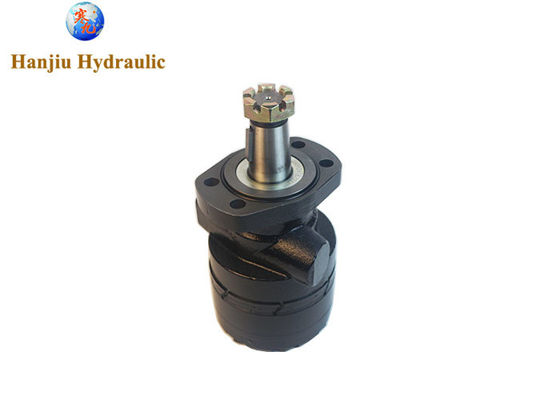

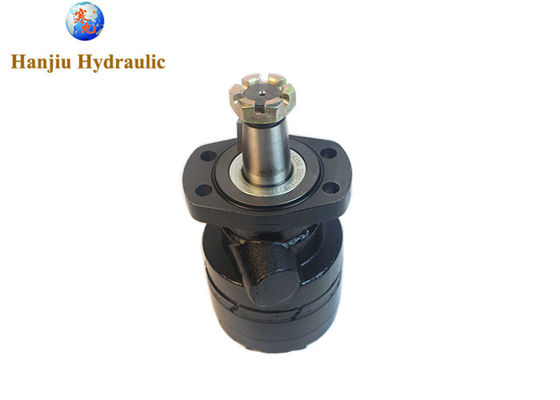

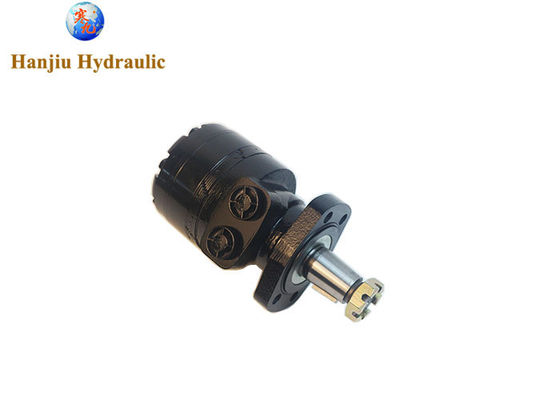

Large Image : BMER Series 350ml/r Orbital Hydraulic Motor with 4-Hole Flange G 1/2 Port and 1-1/2” Tapered Shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-350-MD-T31-R-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	170 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-350
Size:	350ml/r	Flange:	2hole Flange
Shaft:	Tapered Shaft	Rotation:	CCW
Port:	G1/2	Material:	Cast Iron
Highlight:	4-Hole Flange Orbital Hydraulic Motor , G 1/2 Port Low Speed High Torque Hydraulic Motor , 1-1/2” Tapered Shaft BMER Series Hydraulic Motor

530 SERIES RE 350 ORBITAL MOTOR, 4-Hole, SAE A Mount, Aligned Ports, G 1/2, 1-1/2” Tapered SHAFT

Key Attributes

<>tapered shaft

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-350-MD-T31-R-B
Size	350ml/r
Flange	Magneto flange
Shaft
Rotation	CCW
Port	G1/2
Material	Cast iron

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Product Overview

HANJIU BMER Series hydraulic motor delivers a cost-effective balance of power, efficiency, and durability—making it a smart choice for a wide range of medium-duty hydraulic applications. Especially well-suited for low-flow, high-pressure systems, the BMER Series features a unique pressure-responsive balance plate that improves volumetric efficiency at startup and enhances mechanical efficiency during operation.

Torque is transmitted through a heavy-duty drive link, the most rugged in its class, ensuring reliable power delivery in tough environments. With four bearingazor configurations thereto standardized flanges and output shafts, the BMER motor is highly adaptable and easily integrated into various OEM and aftermarket systems.

Typical Applications

Medium-duty wheel drives, grapple heads, feed rollers, and broom drives.
