CharLynn 4000 Series Disc Valve Motor with 130CC Displacement 31.75mm Straight Key Shaft and 4 Bolt SAE B Mount

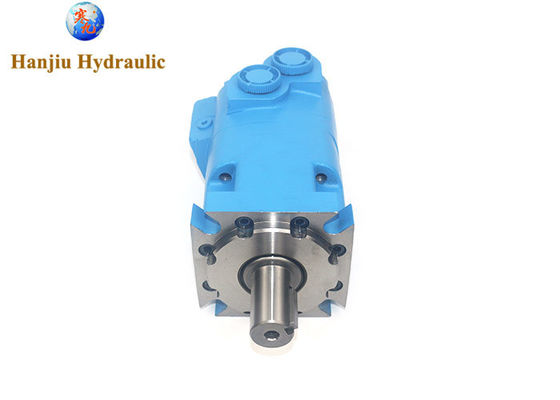

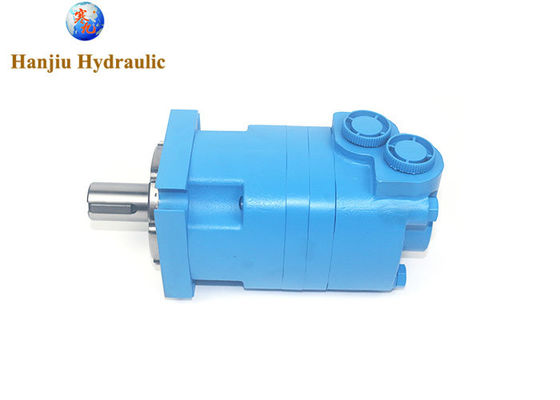

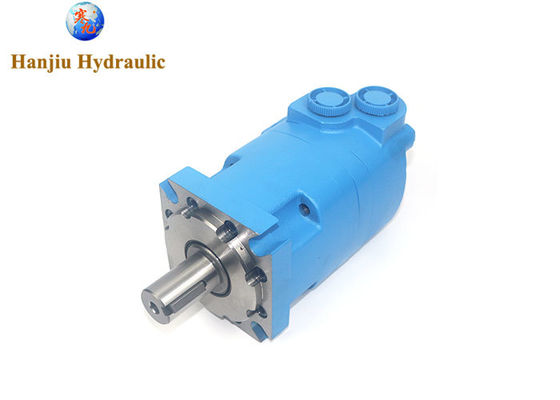

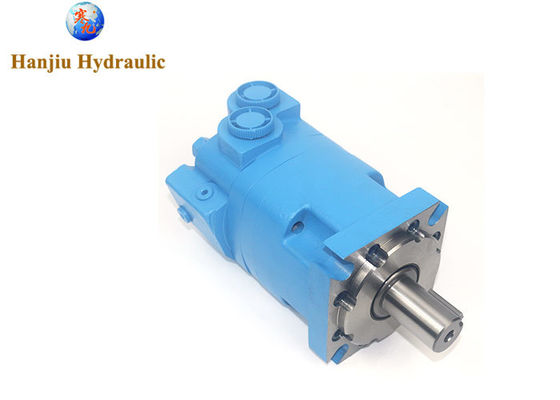

Large Image : CharLynn 4000 Series Disc Valve Motor with 130CC Displacement 31.75mm Straight Key Shaft and 4 Bolt SAE B Mount

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	109-1101-006

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	contact seller to get a quote
Packaging Details:	Each piece for one wooden box
Delivery Time:	65 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Features:	Charlynn Replacement	Type:	Disc Geroler Motor
Series:	109-1101-006	Material:	Cast Iron
Origin:	China	Displacement:	30 CM3/R
Mounting Type:	STANDARD, 4 BOLT, SAE B
Highlight:	130CC Displacement Disc Valve Motor , 31.75mm Straight Key Shaft Hydraulic Geroler Motor , 4 Bolt SAE B Mount CharLynn 4000 Series Motor

CharLynn 4000 Series Disc Valve Motors, 130CC 31.75mm Straight Key Shaft

Product Specifications

Feature	Code	Description
Product	M	Motor
Series	4	4000 Series
Displacement	080	130 CM3/R
Mounting Type	AB	Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle (SAE B)
Output Shaft	01	31.75 Straight
Ports	AB	1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Flow Options	02	.4375-20 UNF-2B SAE O-Ring Port With Check Valve
Low Pressure Relief	0	None
Pressure/Flow Option	0	None
Geroler Option	0	Standard
Seal Option	0	Standard
Accessories	0	None
